Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

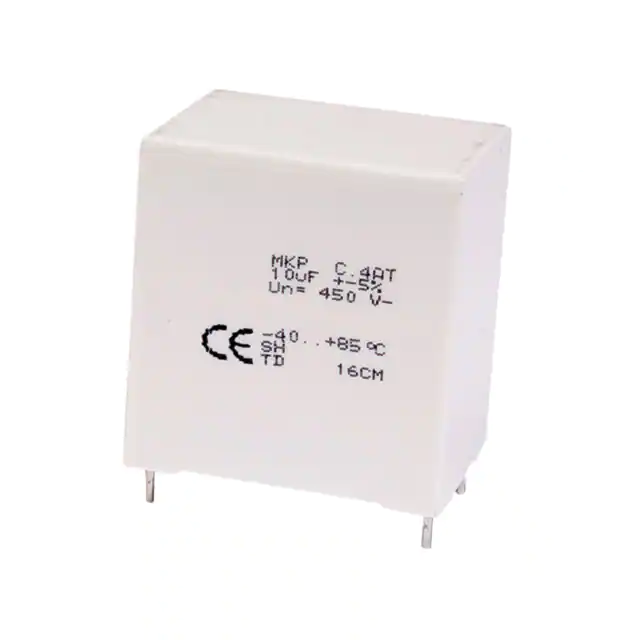

C4ATGBW5100A3FJCAP FILM 10UF 5% 450VDC RADIAL |
49 | - |
|
Datasheet | Radial - 4 Leads | 10 µF | ±5% | 275V | 450V | Polypropylene (PP), Metallized | 2.1 mOhms | -40°C ~ 85°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.575" (40.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
C4AQSBW5220A3NJCAP FILM 22UF 5% 1.5KVDC RADIAL |
45 | - |
|
Datasheet | Radial - 4 Leads | 22 µF | ±5% | - | 1500V (1.5kV) | Polypropylene (PP), Metallized | 4.6 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.980" (50.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
C274ACF5120LF0JCAP FILM 12UF 5% 470VAC RADIAL |
86 | - |
|
Datasheet | Radial, Can | 12 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.378" Dia (35.00mm) | 2.894" (73.50mm) | Wire Leads | - | Motor Run | - | - |
|
|
C4AQOBW5400P3NJCAP FILM 40UF 5% 900VDC RADIAL |
69 | - |
|
Datasheet | Radial - 4 Leads | 40 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 4.4 mOhms | -55°C ~ 125°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.980" (50.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESL |
|
|
C274ACF5120WA0JCAP FILM 12UF 5% 470VAC RADIAL |
4 | - |
|
Datasheet | Radial, Can | 12 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.378" Dia (35.00mm) | 2.894" (73.50mm) | Wire Leads | - | Motor Run | - | - |
|
|
C4AQUBW5270A3NJCAP FILM 27UF 5% 1.3KVDC RADIAL |
73 | - |
|
Datasheet | Radial - 4 Leads | 27 µF | ±5% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 4.9 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.980" (50.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
C4AFABW4800T3NKFILM, POWER, METALLIZED POLYPROP |
38 | - |
|
Datasheet | Radial - 4 Leads | 8 µF | ±10% | 500V | 1000V (1kV) | Polypropylene (PP), Metallized | 3.7 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.980" (50.30mm) | PC Pins | 2.067" (52.50mm) | Automotive | AEC-Q200 | - |
|
R75RW418050H2JCAP FILM 1.8UF 5% 1.25KVDC RAD |
51 | - |
|
Datasheet | Radial | 1.8 µF | ±5% | 600V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 2.7 mOhms | -55°C ~ 125°C | Through Hole | 1.634" L x 1.181" W (41.50mm x 30.00mm) | 1.776" (45.10mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
C4AQOEW5650M3AJCAP FILM 65UF 5% 900VDC RADIAL |
54 | - |
|
Datasheet | Radial - 4 Leads | 65 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 2.8 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 2.217" (56.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
C4AF1BW5400F3NKFILM CAP AC, 40 UF, 10%, 250 VAC |
69 | - |
|
Datasheet | Radial - 4 Leads | 40 µF | ±10% | 250V | 500V | Polypropylene (PP), Metallized | 4.4 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.980" (50.30mm) | PC Pins | 2.067" (52.50mm) | Automotive | AEC-Q200 | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
