Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C4AQUBW5200A3MJCAP FILM 20UF 5% 1.3KVDC RADIAL |
61 | - |
|
Datasheet | Radial - 4 Leads | 20 µF | ±5% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 6.5 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.783" (45.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
C4ASPBW4120A3JJCAP FILM 1.2UF 5% 1.2KVDC RADIAL |
50 | - |
|
Datasheet | Radial - 4 Leads | 1.2 µF | ±5% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 2.9 mOhms | -40°C ~ 85°C | Through Hole | 1.673" L x 1.102" W (42.50mm x 28.00mm) | 1.457" (37.00mm) | PC Pins | 1.476" (37.50mm) | Snubber | - | - |
|
C274AC35250AA0JCAP FILM 25UF 5% 470VAC RADIAL |
31 | - |
|
Datasheet | Radial, Can | 25 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.772" Dia (45.00mm) | 3.740" (95.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
|
C4AQPEW5220M3CJCAP FILM 22UF 5% 1.2KVDC RADIAL |
20 | - |
|
Datasheet | Radial - 4 Leads | 22 µF | ±5% | - | 1200V (1.2kV) | Polypropylene (PP), Metallized | 3 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.496" W (42.00mm x 38.00mm) | 2.256" (57.30mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
C4AUQBW5180M3PJFILM, RADIAL, METALLIZED POLYPRO |
71 | - |
|
Datasheet | Radial - 4 Leads | 18 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 3.5 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.299" W (42.00mm x 33.00mm) | 1.929" (49.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
|
C4AQJBW5330M3HJCAP FILM 33UF 5% 700VDC RADIAL |
6 | - |
|
Datasheet | Radial - 4 Leads | 33 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 3.3 mOhms | -55°C ~ 105°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 1.740" (44.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
R75IR51004040JCAP FILM 10UF 5% 250VDC RADIAL |
62 | - |
|
Datasheet | Radial | 10 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.461" (37.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R75PW482050H3JCAP FILM 8.2UF 5% 630VDC RADIAL |
60 | - |
|
Datasheet | Radial | 8.2 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | 5.8 mOhms | -55°C ~ 125°C | Through Hole | 1.634" L x 1.181" W (41.50mm x 30.00mm) | 1.776" (45.10mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
C284ACR4800AL2JCAP FILM 8UF 5% 470VAC RADIAL |
39 | - |
|
Datasheet | Radial, Can | 8 µF | ±5% | 470V | - | Polypropylene (PP) | - | -25°C ~ 85°C | Chassis Mount | 1.181" Dia (30.00mm) | 2.815" (71.50mm) | Wire Leads | - | Motor Run | - | - |
|

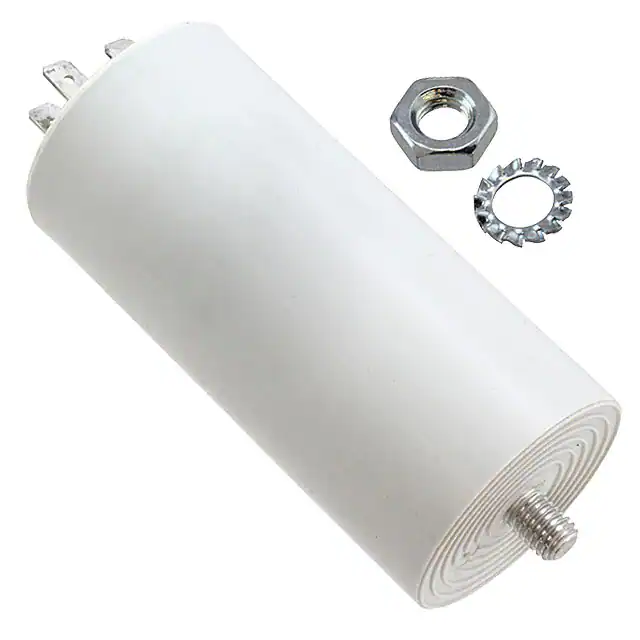

C274AC35300AA0JCAP FILM 30UF 5% 470VAC RADIAL |
19 | - |
|
Datasheet | Radial, Can | 30 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.772" Dia (45.00mm) | 3.740" (95.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
