Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P278EJ104M480ACAP FILM 0.1UF 20% 480VAC RADIAL |
9,472 | - |
|
Datasheet | Radial | 0.1 µF | ±20% | 480V | - | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 1.201" L x 0.476" W (30.50mm x 12.10mm) | 0.748" (19.00mm) | PC Pins | 1.000" (25.40mm) | EMI, RFI Suppression | X1 | - |
|
C4AF9BW4680A3FKCAP FILM 6.8UF 10% 310VAC RADIAL |
4,871 | - |
|
Datasheet | Radial - 4 Leads | 6.8 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | 3.3 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.583" (40.20mm) | PC Pins | 1.476" (37.50mm) | Automotive | AEC-Q200 | - |
|
R463W510000M1KCAP FILM SAFETY/EMI SUPP RAD |
9,084 | - |
|
Datasheet | Radial | 10 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 1.181" W (41.50mm x 30.00mm) | 1.776" (45.10mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | - |
|
|
C4AF9BW5150A3OKCAP FILM 15UF 10% 310VAC RADIAL |
32 | - |
|
Datasheet | Radial - 4 Leads | 15 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | 1.6 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.378" W (42.00mm x 35.00mm) | 1.976" (50.20mm) | PC Pins | 1.476" (37.50mm) | Automotive | AEC-Q200 | - |
|
|
C4AF1BW5150A3LKCAP FILM 15UF 10% 250VAC RADIAL |
5,601 | - |
|
Datasheet | Radial - 4 Leads | 15 µF | ±10% | 250V | - | Polypropylene (PP), Metallized | 1.9 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.780" (45.20mm) | PC Pins | 1.476" (37.50mm) | Automotive | AEC-Q200 | - |
|

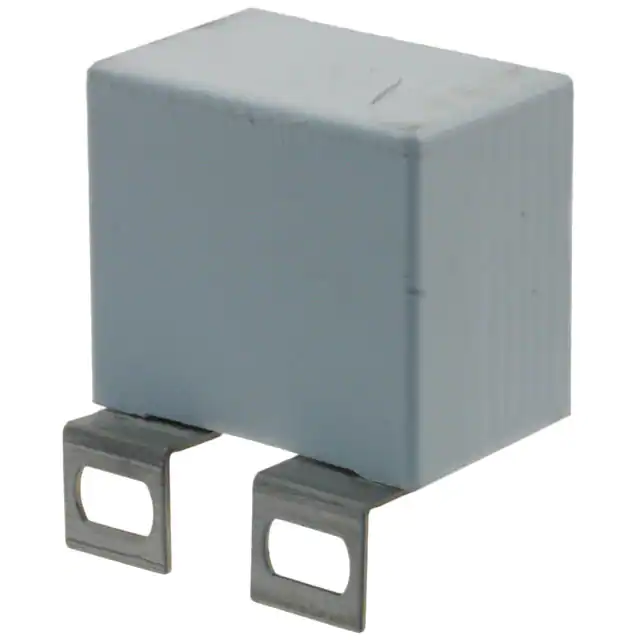

C4BSPBX4120ZAJJCAP FILM 1.2UF 5% 1.2KVDC SCREW |
36 | - |
|
Datasheet | Rectangular Box | 1.2 µF | ±5% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 2.8 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673" L x 1.102" W (42.50mm x 28.00mm) | 1.457" (37.00mm) | Screw Terminals | 1.004" (25.50mm) | DC Link, DC Filtering; Snubber | - | - |
|
|
R76QW4100SE30JCAP FILM AUTO POLYPROP RAD |
8,090 | - |
|
Datasheet | Radial | 1 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 7.2 mOhms | -55°C ~ 110°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.579" (40.10mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|

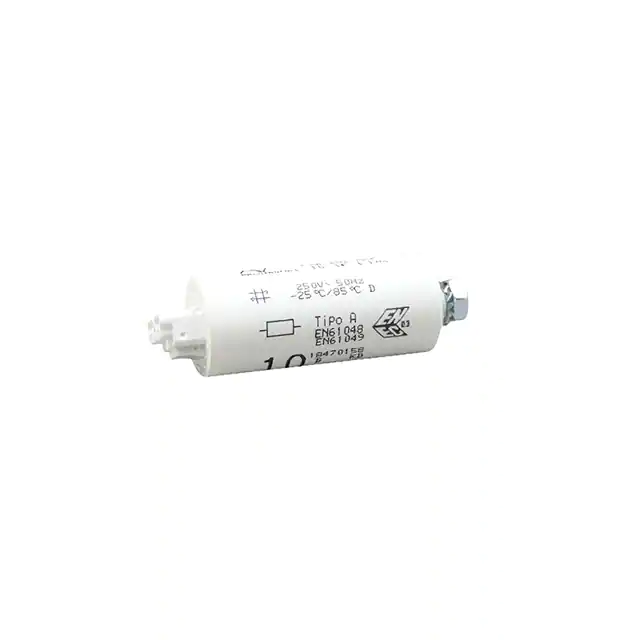

C3B2AD45100B20KCAP FILM 10UF 10% 250VAC SCREW |
78 | - |
|
Datasheet | Radial, Can - Screw Terminals | 10 µF | ±10% | 250V | - | Polypropylene (PP) | - | -25°C ~ 85°C | Chassis Mount | 1.181" Dia (30.00mm) | 2.815" (71.50mm) | Screw Terminals | - | General Purpose | - | - |
|
A72QK2100ZA00MCAP FILM 10000PF 20% 1KVDC AXIAL |
33 | - |
|
Datasheet | Axial | 10000 pF | ±20% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | - | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
C4ASYBW3220A3FJCAP FILM METAL RAD POLYPROP |
8,564 | - |
|
Datasheet | Radial | 0.22 µF | ±5% | 750V | 3000V (3kV) | Polypropylene (PP), Metallized | 8.2 mOhms | -40°C ~ 85°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.575" (40.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; Snubber | - | - |
