Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C4BSYBX2470ZBFJCAP FILM METAL RAD POLYPROP |
6,558 | - |
|
Datasheet | Rectangular Box | 0.047 µF | ±5% | 750V | 3000V (3kV) | Polypropylene (PP), Metallized | 36.6 mOhms | -40°C ~ 85°C | Chassis Mount | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.583" (40.20mm) | Screw Terminals | 0.866" (22.00mm) | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|
C4BSMBX4100ZEFJCAP FILM 1UF 5% 850VDC SCREW |
2,352 | - |
|
Datasheet | Rectangular Box | 1 µF | ±5% | 550V | 850V | Polypropylene (PP), Metallized | 4 mOhms | -40°C ~ 85°C | Chassis Mount | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.575" (40.00mm) | Screw Terminals | 1.299" (33.00mm) | DC Link, DC Filtering; Snubber | - | - |
|
C4AF3EW5225A3BKCAP FILM 22.5UF 10% 800VDC RAD |
36 | - |
|
Datasheet | Radial - 4 Leads | 22.5 µF | ±10% | 400V | 800V | Polypropylene (PP), Metallized | 2 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 2.571" (65.30mm) | PC Pins | 2.067" (52.50mm) | Automotive | AEC-Q200 | - |
|

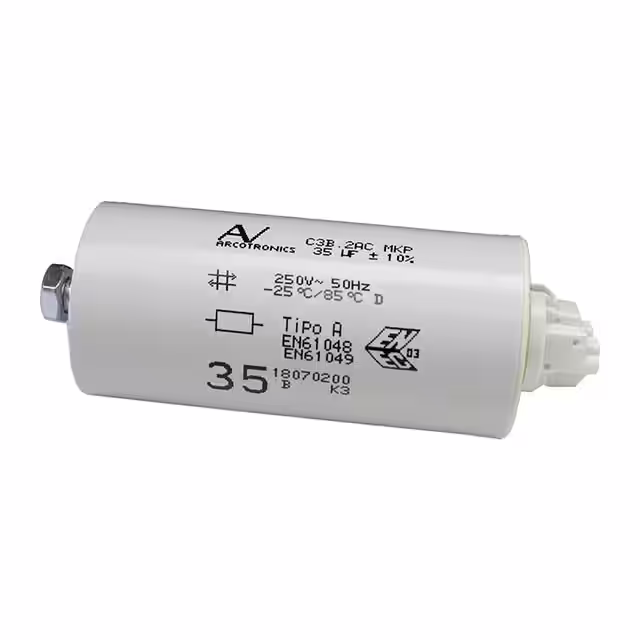

C3B2AC55350B20KCAP FILM 250V |
6 | - |
|
Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
C3B2AC55500B20KCAP FILM 250V |
34 | - |
|
Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
C4AF7EW5320A3BKCAP FILM 32UF 10% 700VDC RADIAL |
7,334 | - |
|
Datasheet | Radial - 4 Leads | 32 µF | ±10% | 350V | 700V | Polypropylene (PP), Metallized | 1.8 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 2.571" (65.30mm) | PC Pins | 2.067" (52.50mm) | Automotive | AEC-Q200 | - |
|
C44AHGP5600ZB0JCAP FILM 60UF 5% 600VDC RADIAL |
9 | - |
|
Datasheet | Radial, Can | 60 µF | ±5% | 330V | 600V | Polypropylene (PP), Metallized | 5 mOhms | -40°C ~ 85°C | Chassis Mount | 2.362" Dia (60.00mm) | 5.512" (140.00mm) | Threaded, Male | 0.878" (22.30mm) | General Purpose | - | - |
|
|
9TS6MD5685AARX5600UF 440V |
12 | - |
|
Datasheet | Radial, Can | 68.5 µF | -5%, +15% | 440V | - | Polypropylene (PP), Metallized | - | -25°C ~ 55°C | Chassis, Stud Mount | 2.953" Dia (75.00mm) | 9.134" (232.00mm) | Terminal Block | 0.748" (19.00mm) | 3 Phase, Power Factor Correction (PFC) | - | - |
|
C9TS5MD5770AARXCAP FILM 77UF 415VAC RADIAL |
3,205 | - |
|
Datasheet | Radial, Can | 77 µF | -5%, +15% | 415V | - | Polypropylene (PP), Metallized | - | -25°C ~ 55°C | Chassis, Stud Mount | 2.953" Dia (75.00mm) | 9.134" (232.00mm) | Terminal Block | 0.748" (19.00mm) | 3 Phase, Power Factor Correction (PFC) | - | - |
|
|
C44PLGR6320RASJCAP POLYPROP FILM CAN |
3,062 | - |
|
Datasheet | Radial, Can | 320 µF | ±5% | 330V | 700V | Polypropylene (PP), Metallized | 2 mOhms | -25°C ~ 70°C | Chassis, Stud Mount | 2.559" Dia (65.00mm) | 9.803" (249.00mm) | Threaded, Male | 1.102" (28.00mm) | Power Factor Correction (PFC); Commutation; EMI, RFI Suppression | - | Long Life |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
