Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C4AQQBU4500A11JCAP FILM 5UF 5% 1.1KVDC RADIAL |
7,640 | - |
|
Datasheet | Radial | 5 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 9.1 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.748" W (31.50mm x 19.00mm) | 1.150" (29.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
R463R447040M2MCAP FILM 4.7UF 20% 630VDC RAD |
8,721 | - |
|
Datasheet | Radial | 4.7 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.303" (33.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|

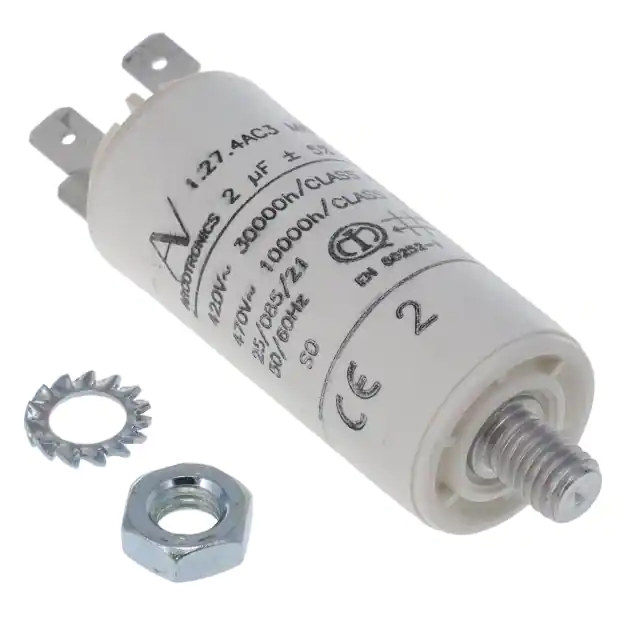

C274AC34200AA0JCAP FILM 2UF 5% 470VAC RADIAL |
2,688 | - |
|
Datasheet | Radial, Can | 2 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 0.984" Dia (25.00mm) | 2.362" (60.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
R75UR32204040JCAP FILM 0.22UF 5% 2KVDC RADIAL |
9,276 | - |
|
Datasheet | Radial | 0.22 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.551" W (32.00mm x 14.00mm) | 1.106" (28.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R46KR447000P1MCAP FILM 4.7UF 20% 560VDC RADIAL |
7,754 | - |
|
Datasheet | Radial | 4.7 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.551" W (32.00mm x 14.00mm) | 1.106" (28.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
PHE450PF6330JR06L2CAP FILM 0.33UF 5% 1KVDC RADIAL |
3 | - |
|
Datasheet | Radial | 0.33 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.453" W (31.50mm x 11.50mm) | 0.886" (22.50mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching | - | - |
|
SMR5105J50J06L16.5CBULKCAP FILM 1UF 5% 50VDC RADIAL |
3,764 | - |
|
Datasheet | Radial | 1 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.512" (13.00mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | High Temperature |
|
R474W410050A1KV057CAP FILM 1UF 10% 1KVDC RADIAL |
13 | - |
|
Datasheet | Radial | 1 µF | ±10% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.630" W (41.50mm x 16.00mm) | 1.126" (28.60mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|
R60IR51005040KCAP FILM 10UF 10% 250VDC RADIAL |
3,665 | - |
|
Datasheet | Radial | 10 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
R71XR510050H0KFILM, RADIAL, PULSE, SINGLE META |
4,887 | - |
|
Datasheet | Radial | 10 µF | ±10% | 160V | 450V | Polypropylene (PP), Metallized | 10 mOhms | -55°C ~ 125°C | Through Hole | 1.260" L x 0.551" W (32.00mm x 14.00mm) | 1.106" (28.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency; High Pulse, DV/DT; Power Factor Correction (PFC) | AEC-Q200 | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
