Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C4AQHBU5100P11JCAP FILM 10UF 5% 600VDC RADIAL |
8,536 | - |
|
Datasheet | Radial | 10 µF | ±5% | - | 600V | Polypropylene (PP), Metallized | 7.5 mOhms | -55°C ~ 125°C | Through Hole | 1.240" L x 0.748" W (31.50mm x 19.00mm) | 1.150" (29.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESL |
|
PHE450PR7100JR02R06L2CAP FILM 1UF 5% 1KVDC RADIAL |
6,362 | - |
|
Datasheet | Radial | 1 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.614" L x 0.650" W (41.00mm x 16.50mm) | 1.260" (32.00mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching | - | - |
|

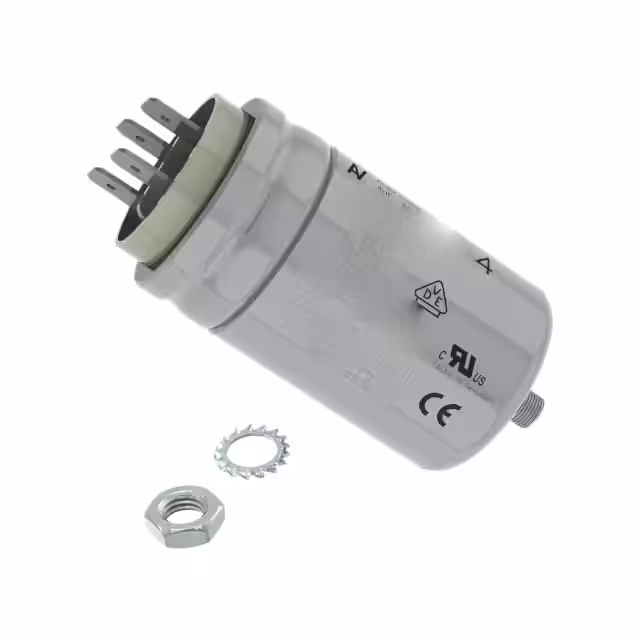

C878AF35120AA0JCAP FILM 12UF 5% 470VAC RADIAL |
1 | - |
|
Datasheet | Radial, Can | 12 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis Mount | 1.181" Dia (30.00mm) | 3.150" (80.00mm) | Quick Connect, Disconnect | 0.528" (13.40mm) | Motor Run | - | - |
|
R75UR34704040JCAP FILM 0.47UF 5% 2KVDC RADIAL |
1 | - |
|
Datasheet | Radial | 0.47 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.461" (37.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
C4AQGBU5250P12KCAP FILM 25UF 10% 450VDC RADIAL |
9,003 | - |
|
Datasheet | Radial | 25 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | 4.8 mOhms | -55°C ~ 125°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.465" (37.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESL |
|
R76TW3470SE30JCAP FILM AUTO POLYPROP RAD |
3,254 | - |
|
Datasheet | Radial | 0.47 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 14 mOhms | -55°C ~ 110°C | Through Hole | 1.634" L x 0.748" W (41.50mm x 19.00mm) | 1.264" (32.10mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R533W510050P0KCAP FILM 10UF 10% 630VDC RADIAL |
3,260 | - |
|
Datasheet | Radial | 10 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.587" (40.30mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
C4AQSLW4800A38JCAP FILM 8UF 5% 1.5KVDC RADIAL |
6,929 | - |
|
Datasheet | Radial - 4 Leads | 8 µF | ±5% | - | 1500V (1.5kV) | Polypropylene (PP), Metallized | 7.1 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.693" W (42.00mm x 43.00mm) | 0.992" (25.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
C4AQLBU5250M12KCAP FILM 25UF 10% 500VDC RADIAL |
14 | - |
|
Datasheet | Radial | 25 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 4.4 mOhms | -55°C ~ 105°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.465" (37.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
C4AQNLW5150M38JCAP FILM 15UF 5% 1KVDC RADIAL |
2 | - |
|
Datasheet | Radial - 4 Leads | 15 µF | ±5% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.693" W (42.00mm x 43.00mm) | 0.992" (25.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
