Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C4ATGBW4680A3GJCAP FILM 6.8UF 5% 450VDC RADIAL |
3,404 | - |
|
Datasheet | Radial - 4 Leads | 6.8 µF | ±5% | 275V | 450V | Polypropylene (PP), Metallized | 2.7 mOhms | -40°C ~ 85°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.457" (37.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
C4AQCBW5750A3NJCAP FILM 75UF 5% 650VDC RADIAL |
6,893 | - |
|
Datasheet | Radial - 4 Leads | 75 µF | ±5% | - | 650V | Polypropylene (PP), Metallized | 3.1 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.980" (50.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
C4AQGBW5400P3FKCAP FILM 40UF 10% 450VDC RADIAL |
6,602 | - |
|
Datasheet | Radial - 4 Leads | 40 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | 3.7 mOhms | -55°C ~ 125°C | Through Hole | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.583" (40.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESL |
|
R60DR54705050KCAP FILM 47UF 10% 63VDC RADIAL |
2,333 | - |
|
Datasheet | Radial | 47 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.461" (37.10mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
C4ASPBW3680A3FJCAP FILM 0.68UF 5% 1.2KVDC RAD |
5,859 | - |
|
Datasheet | Radial - 4 Leads | 0.68 µF | ±5% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 4.9 mOhms | -40°C ~ 85°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.575" (40.00mm) | PC Pins | 1.476" (37.50mm) | Snubber | - | - |
|
C4ASYBU3100A3EJCAP FILM METAL RAD POLYPROP |
4,297 | - |
|
Datasheet | Radial | 0.1 µF | ±5% | 750V | 3000V (3kV) | Polypropylene (PP), Metallized | 12.4 mOhms | -40°C ~ 85°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.299" (33.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
|
C4AQLBW5500M3JKCAP FILM 50UF 10% 500VDC RADIAL |
1 | - |
|
Datasheet | Radial - 4 Leads | 50 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 2.8 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.102" W (42.00mm x 28.00mm) | 1.465" (37.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
R75TW412050H3JCAP FILM 1.2UF 5% 1.6KVDC RADIAL |
2,655 | - |
|
Datasheet | Radial | 1.2 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 4 mOhms | -55°C ~ 125°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 1.736" (44.10mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
C4AEOBW5140A3JJCAP FILM 14UF 5% 900VDC RADIAL |
5,549 | - |
|
Datasheet | Radial - 4 Leads | 14 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 5.5 mOhms | -40°C ~ 85°C | Through Hole | 1.673" L x 1.102" W (42.50mm x 28.00mm) | 1.465" (37.20mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|

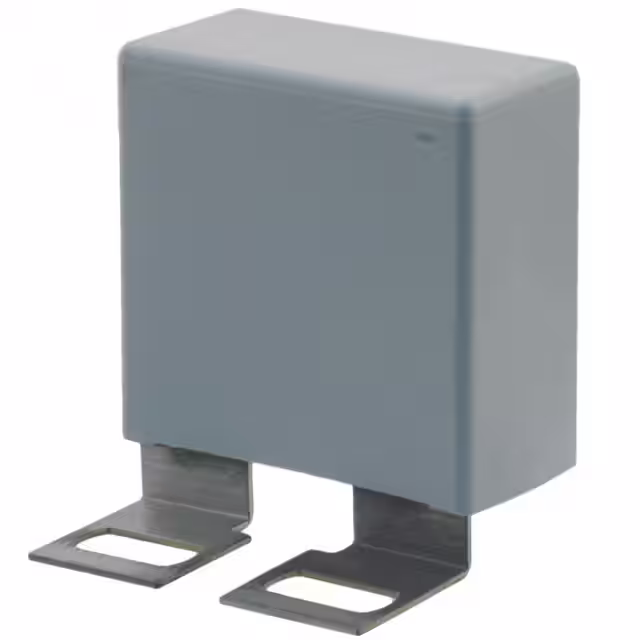

C4BSNBX4100ZBFJCAP FILM 1UF 5% 1KVDC SCREW |
9,781 | - |
|
Datasheet | Rectangular Box | 1 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 3.7 mOhms | -40°C ~ 85°C | Chassis Mount | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.575" (40.00mm) | Screw Terminals | 0.866" (22.00mm) | DC Link, DC Filtering; Snubber | - | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
