Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R76MF24705050JFILM, RADIAL, PULSE, DOUBLE META |
9,361 | - |
|
Datasheet | Radial | 0.047 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 14 mOhms | -55°C ~ 110°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.394" (10.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R747I1150AA00JCAP FILM 1500PF 5% 2KVDC RADIAL |
3 | - |
|
Datasheet | Radial | 1500 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | - |
|

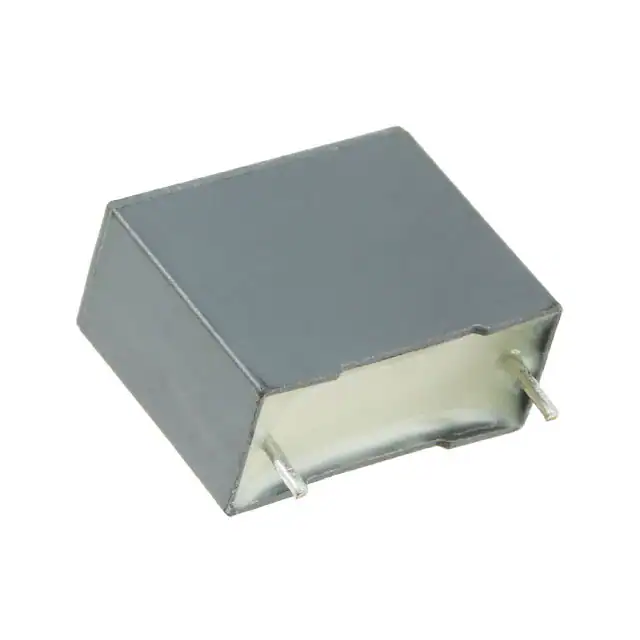

R75PI3220ZA40KCAP FILM 0.22UF 10% 630VDC RAD |
16 | - |
|
Datasheet | Radial | 0.22 µF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.394" W (18.00mm x 10.00mm) | 0.634" (16.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|

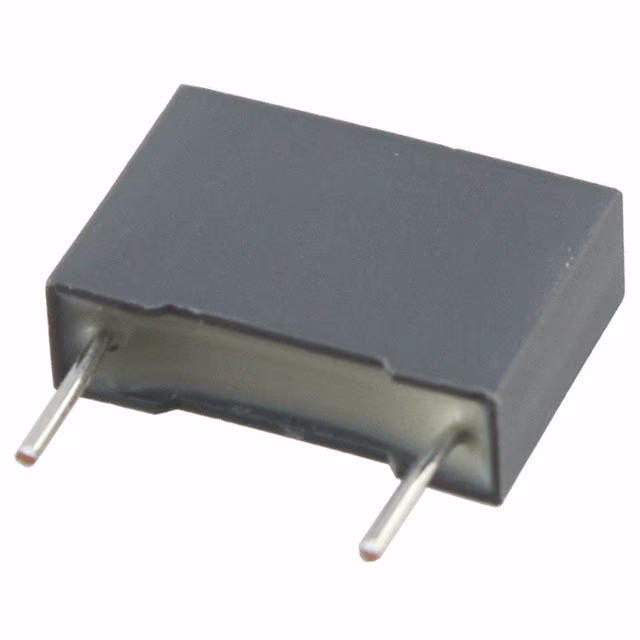

R46KF222000N0KCAP FILM 0.022UF 10% 560VDC RAD |
5,776 | - |
|
Datasheet | Radial | 0.022 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X2 | - |
|
F863BK224K310ZCAP FILM 0.22UF 10% 630VDC RAD |
9,000 | - |
|
Datasheet | Radial | 0.22 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.535" (13.60mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
PHE450KK3390JR05CAP FILM 390PF 5% 400VDC RADIAL |
5,013 | - |
|
Datasheet | Radial | 390 pF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.394" L x 0.157" W (10.00mm x 4.00mm) | 0.315" (8.00mm) | PC Pins | 0.295" (7.50mm) | High Frequency, Switching | - | - |
|
F881AK472M300CCAP FILM 4700PF 20% 1KVDC RADIAL |
2,658 | - |
|
Datasheet | Radial | 4700 pF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | - | - |
|
R413F14700000MCAP FILM 4700PF 20% 1KVDC RADIAL |
13 | - |
|
Datasheet | Radial | 4700 pF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.394" (10.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
R71PI347050H6KFILM, RADIAL, PULSE, SINGLE META |
1 | - |
|
Datasheet | Radial | 0.47 µF | ±10% | 220V | 630V | Polypropylene (PP), Metallized | 59 mOhms | -55°C ~ 125°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.535" (13.60mm) | PC Pins | 0.591" (15.00mm) | High Frequency; High Pulse, DV/DT; Power Factor Correction (PFC) | AEC-Q200 | - |
|
R46KN31505001KCAP FILM 0.15UF 10% 560VDC RAD |
7,539 | - |
|
Datasheet | Radial | 0.15 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.594" (15.10mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
