Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

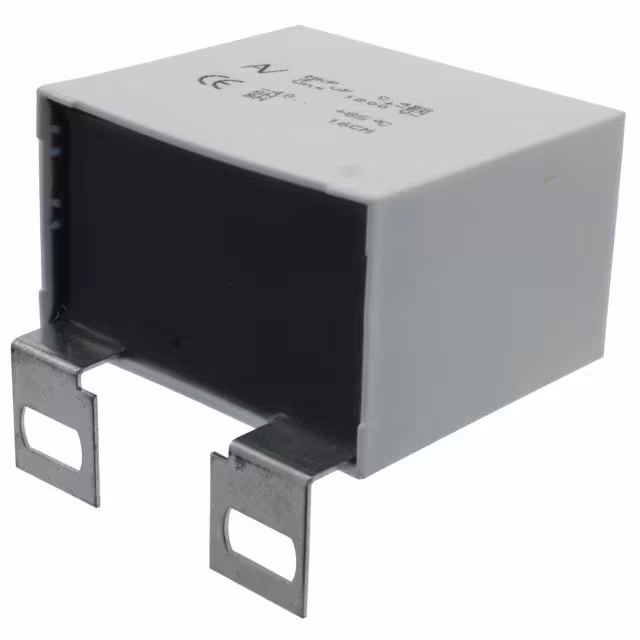

C4BSPBX4300ZBNJCAP FILM 3UF 5% 1.2KVDC SCREW |
4,303 | - |
|
Datasheet | Rectangular Box | 3 µF | ±5% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 2.5 mOhms | -40°C ~ 85°C | Chassis Mount | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | Screw Terminals | 1.457" (37.00mm) | DC Link, DC Filtering; Snubber | - | - |
|
C4AQSEW5400A3BJCAP FILM 40UF 5% 1.5KVDC RAD |
5,761 | - |
|
Datasheet | Radial - 4 Leads | 40 µF | ±5% | - | 1500V (1.5kV) | Polypropylene (PP), Metallized | 2.8 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 2.571" (65.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
C4AQOEW5800M3BJCAP FILM 80UF 5% 900VDC RADIAL |
5 | - |
|
Datasheet | Radial - 4 Leads | 80 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 2.4 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 2.571" (65.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
|
C4AQJEW6130M3BJCAP FILM 130UF 5% 700VDC RADIAL |
6,650 | - |
|
Datasheet | Radial - 4 Leads | 130 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 1.9 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 2.571" (65.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
C44AMGP5500ZA0JCAP FILM 50UF 5% 850VDC RADIAL |
6,063 | - |
|
Datasheet | Radial, Can | 50 µF | ±5% | 450V | 850V | Polypropylene (PP), Metallized | 5 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 2.992" Dia (76.00mm) | 5.512" (140.00mm) | Threaded, Male | 0.878" (22.30mm) | General Purpose | - | - |
|
C4DEHPQ6150A8TKCAP FILM 150UF 10% 600VDC RADIAL |
4,746 | - |
|
Datasheet | Radial, Can | 150 µF | ±10% | - | 600V | Polypropylene (PP), Metallized | 0.75 mOhms | -40°C ~ 85°C | Chassis Mount | 3.307" Dia (84.00mm) | 2.598" (66.00mm) | Threaded, Male | 1.772" (45.00mm) | DC Link, DC Filtering | - | Low ESL |
|
|
C44PLGR6500RASKCAP FILM 500UF 10% 700VDC RADIAL |
3,543 | - |
|
Datasheet | Radial, Can | 500 µF | ±10% | 330V | 700V | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis, Stud Mount | 2.953" Dia (75.00mm) | 9.803" (249.00mm) | Threaded, Male | 1.378" (35.00mm) | Power Factor Correction (PFC); Commutation; EMI, RFI Suppression | - | Long Life |
|
C44PKGR6200RASJCAP FILM 200UF 5% 1KVDC RADIAL |
9,479 | - |
|
Datasheet | Radial, Can | 200 µF | ±5% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis, Stud Mount | 2.953" Dia (75.00mm) | 9.803" (249.00mm) | Threaded, Male | 1.378" (35.00mm) | Power Factor Correction (PFC); Commutation; EMI, RFI Suppression | - | Long Life |
|
C44UQGT7178M32KC44U_M, FILM, METALLIZED POLYPRO |
1 | - |
|
Datasheet | Radial, Can | 1780 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 1 mOhms | -40°C ~ 75°C | Chassis Mount | 5.354" Dia (136.00mm) | 9.213" (234.00mm) | Threaded, Female | 1.969" (50.00mm) | DC Link, DC Filtering | - | Long Life |
|
|
C44UOGT7450T34KCAP FILM DC LINK 4500 UF 900 VDC |
5,111 | - |
|
Datasheet | Radial, Can | 4.5 mF | ±10% | - | 900V | Polypropylene (PP), Metallized | 0.95 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 5.354" Dia (136.00mm) | 13.740" (349.00mm) | Threaded, Female | 1.969" (50.00mm) | DC Link, DC Filtering | - | High Temperature, Long Life |
