Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C4AQQEW5550A3AJCAP FILM 55UF 5% 1.1KVDC RAD |
3 | - |
|
Datasheet | Radial - 4 Leads | 55 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 2.6 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 2.217" (56.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|

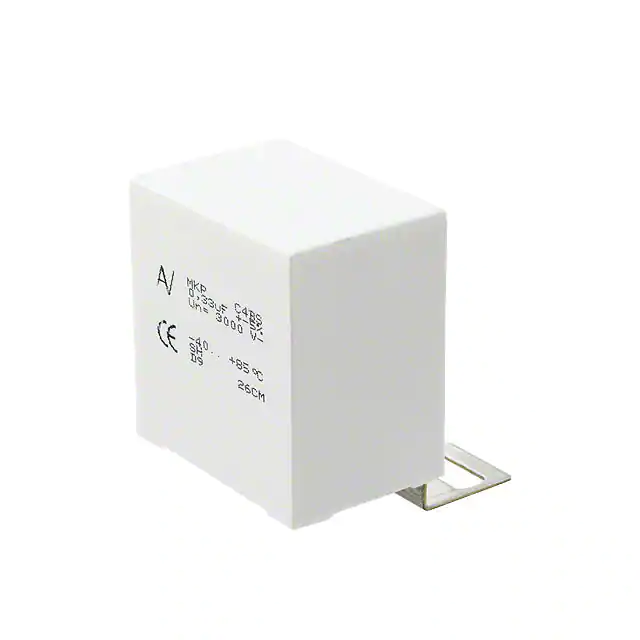

C4BSYBX3330ZBLJCAP FILM 0.33UF 5% 3KVDC SCREW |
7,937 | - |
|
Datasheet | Rectangular Box | 0.33 µF | ±5% | 750V | 3000V (3kV) | Polypropylene (PP), Metallized | 5.4 mOhms | -40°C ~ 85°C | Chassis Mount | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.772" (45.00mm) | Screw Terminals | 0.866" (22.00mm) | DC Link, DC Filtering; Snubber | - | - |
|
|
C4AQLBW5900A3OKCAP FILM 90UF 10% 500VDC RADIAL |
2,919 | - |
|
Datasheet | Radial - 4 Leads | 90 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 1.5 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.378" W (42.00mm x 35.00mm) | 1.976" (50.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
C4AQLBW5700M3LKCAP FILM 70UF 10% 500VDC RADIAL |
5,161 | - |
|
Datasheet | Radial - 4 Leads | 70 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 2.1 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.780" (45.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|

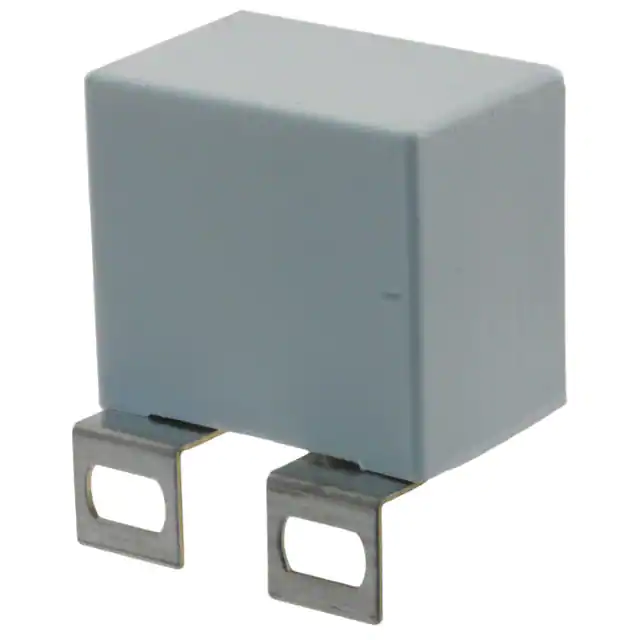

C4BTJBX4500ZAJJCAP FILM 5UF 5% 700VDC SCREW |
6,616 | - |
|
Datasheet | Rectangular Box | 5 µF | ±5% | 400V | 700V | Polypropylene (PP), Metallized | 2.6 mOhms | -40°C ~ 85°C | Chassis Mount | 1.654" L x 1.102" W (42.00mm x 28.00mm) | 1.457" (37.00mm) | Screw Terminals | 1.004" (25.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|

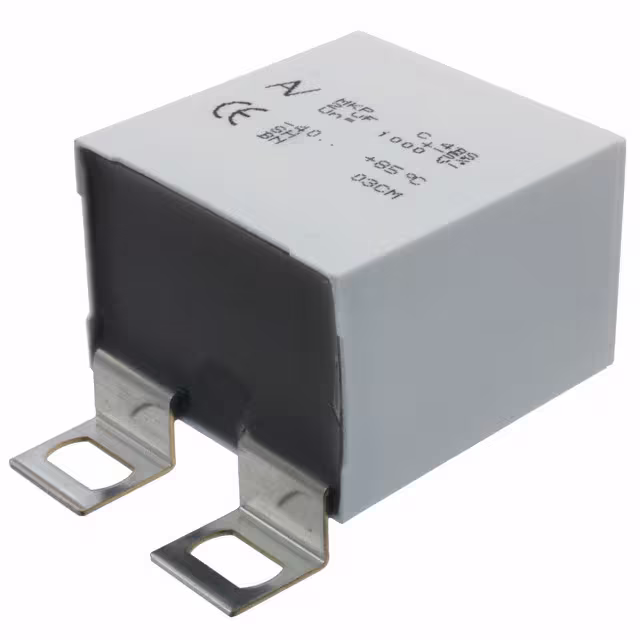

C4BSNBX4200ZALJCAP FILM 2UF 5% 1KVDC SCREW |
5,690 | - |
|
Datasheet | Rectangular Box | 2 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 2 mOhms | -40°C ~ 85°C | Chassis Mount | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.772" (45.00mm) | Screw Terminals | 1.004" (25.50mm) | DC Link, DC Filtering; Snubber | - | - |
|

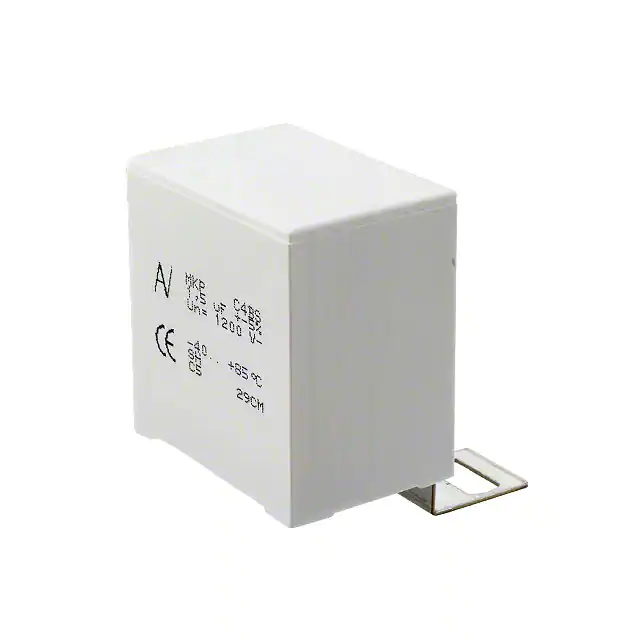

C4BSPBX4150ZBLJCAP FILM 1.5UF 5% 1.2KVDC SCREW |
8,629 | - |
|
Datasheet | Rectangular Box | 1.5 µF | ±5% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 2.3 mOhms | -40°C ~ 85°C | Chassis Mount | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.772" (45.00mm) | Screw Terminals | 0.866" (22.00mm) | DC Link, DC Filtering; Snubber | - | - |
|
|
C4AQLBW5900M3OKCAP FILM 90UF 10% 500VDC RADIAL |
6,156 | - |
|
Datasheet | Radial - 4 Leads | 90 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 1.7 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.378" W (42.00mm x 35.00mm) | 1.976" (50.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
|
C4AQQEW5450M3AJCAP FILM 45UF 5% 1.1KVDC RADIAL |
7,251 | - |
|
Datasheet | Radial - 4 Leads | 45 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 3.3 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 2.217" (56.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
|
C4AQGBW6100P3MKCAP FILM 100UF 10% 450VDC RADIAL |
3 | - |
|
Datasheet | Radial - 4 Leads | 100 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | 3.2 mOhms | -55°C ~ 125°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.783" (45.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESL |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
