Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

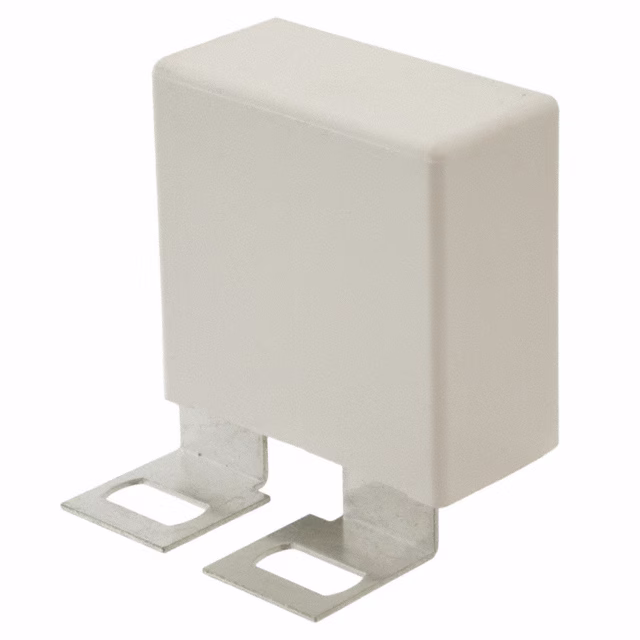

C4BSPBX3470ZBFJCAP FILM 0.47UF 5% 1.2KVDC SCREW |
3,877 | - |
|
Datasheet | Rectangular Box | 0.47 µF | ±5% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 6.7 mOhms | -40°C ~ 85°C | Chassis Mount | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.575" (40.00mm) | Screw Terminals | 0.866" (22.00mm) | DC Link, DC Filtering; Snubber | - | - |
|
C4AEJBW5150A3FJCAP FILM 15UF 5% 700VDC RADIAL |
5,671 | - |
|
Datasheet | Radial | 15 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 6.3 mOhms | -40°C ~ 85°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.583" (40.20mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|

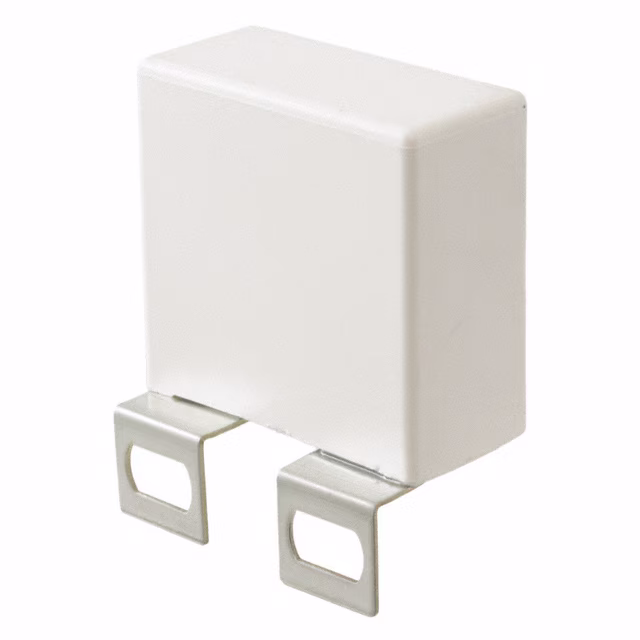

C4BSPBX3680ZAFJCAP FILM 0.68UF 5% 1.2KVDC SCREW |
5,709 | - |
|
Datasheet | Rectangular Box | 0.68 µF | ±5% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 4.7 mOhms | -40°C ~ 85°C | Chassis Mount | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.575" (40.00mm) | Screw Terminals | 1.004" (25.50mm) | DC Link, DC Filtering; Snubber | - | - |
|
C4AQCBW5550A3MJCAP FILM 55UF 5% 650VDC RADIAL |
9,535 | - |
|
Datasheet | Radial - 4 Leads | 55 µF | ±5% | - | 650V | Polypropylene (PP), Metallized | 4.1 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.783" (45.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
SMC10.2224J100A31TR16CAP FILM 0.22UF 5% 100VDC SMD |
5,398 | - |
|
Datasheet | Nonstandard | 0.22 µF | ±5% | 63V | 100V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 125°C | Surface Mount | 0.402" L x 0.358" W (10.20mm x 9.10mm) | 0.224" (5.70mm) | Solder Pads | - | General Purpose | - | High Temperature |
|
|
C4AQJBW5450M36JCAP FILM 45UF 5% 700VDC RADIAL |
9,556 | - |
|
Datasheet | Radial - 4 Leads | 45 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 2.5 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.378" W (42.00mm x 35.00mm) | 1.819" (46.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
C4AEHBW5200A3FJCAP FILM 20UF 5% 600VDC RADIAL |
5,587 | - |
|
Datasheet | Radial - 4 Leads | 20 µF | ±5% | - | 600V | Polypropylene (PP), Metallized | 5.3 mOhms | -40°C ~ 85°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.583" (40.20mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
C4AFBBW4400F3OKFILM CAP AC, 4 UF, 10%, 600 VAC |
1 | - |
|
Datasheet | Radial - 4 Leads | 4 µF | ±10% | 600V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 12.8 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.780" (45.20mm) | PC Pins | 1.476" (37.50mm) | Automotive | AEC-Q200 | - |
|
F161ZS475K063VCAP FILM 4.7UF 10% 63VDC SMD |
7,580 | - |
|
Datasheet | Nonstandard | 4.7 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.650" L x 0.591" W (16.50mm x 15.00mm) | 0.283" (7.20mm) | Solder Pads | - | Automotive | AEC-Q200 | - |
|

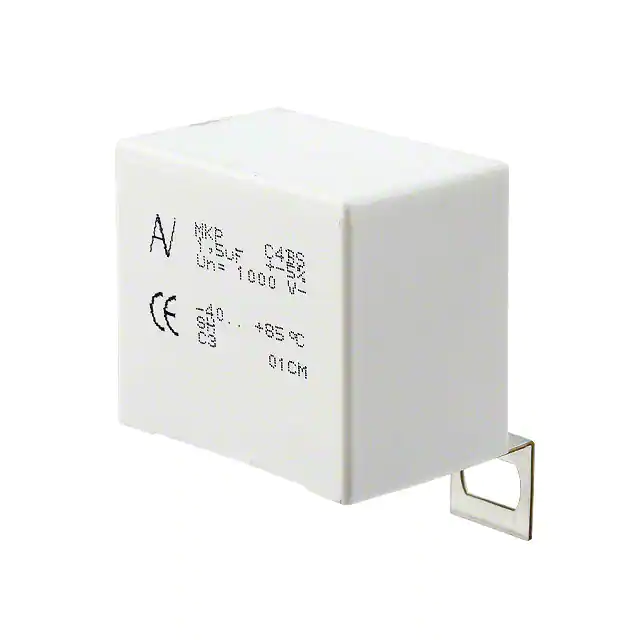

C4BSNBX4150ZAJJCAP FILM 1.5UF 5% 1KVDC SCREW |
4,096 | - |
|
Datasheet | Rectangular Box | 1.5 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 2.5 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673" L x 1.102" W (42.50mm x 28.00mm) | 1.457" (37.00mm) | Screw Terminals | 1.004" (25.50mm) | DC Link, DC Filtering; Snubber | - | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
