Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C44APFP4400ZA0JCAP FILM 4UF 5% 1.2KVDC RADIAL |
4,464 | - |
|
Datasheet | Radial, Can | 4 µF | ±5% | 500V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 2 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 1.969" Dia (50.00mm) | 4.055" (103.00mm) | Threaded, Male | 0.878" (22.30mm) | General Purpose | - | - |
|

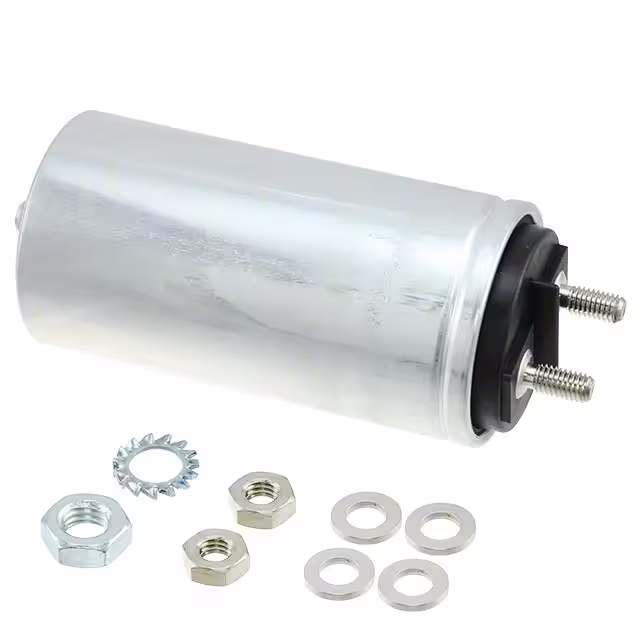

C44AFFP5500ZE0JCAP FILM 50UF 5% 400VDC RADIAL |
4,601 | - |
|
Datasheet | Radial, Can | 50 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 6 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 1.969" Dia (50.00mm) | 4.055" (103.00mm) | Threaded, Male | 0.878" (22.30mm) | General Purpose | - | - |
|
|
C44AFGP5750ZA0JCAP FILM 75UF 5% 400VDC RADIAL |
7,611 | - |
|
Datasheet | Radial, Can | 75 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 5 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 2.362" Dia (60.00mm) | 4.055" (103.00mm) | Threaded, Male | 0.878" (22.30mm) | General Purpose | - | - |
|
C44APGP4800ZE0JCAP FILM 8UF 5% 1.2KVDC RADIAL |
3,413 | - |
|
Datasheet | Radial, Can | 8 µF | ±5% | 500V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 3.5 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 2.165" Dia (55.00mm) | 5.512" (140.00mm) | Threaded, Male | 0.878" (22.30mm) | General Purpose | - | - |
|
C44USGT6180M84KCAP FILM 180UF 10% 1.5KVDC RAD |
1 | - |
|
Datasheet | Radial, Can | 180 µF | ±10% | - | 1500V (1.5kV) | Polypropylene (PP), Metallized | 3.5 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 5.433" (138.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
|
C44UQGT6290M82KCAP FILM 290UF 10% 1.1KVDC RAD |
1 | - |
|
Datasheet | Radial, Can | 290 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 2.1 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 4.646" (118.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
|
C44UQGT6320M83KCAP FILM 320UF 10% 1.1KVDC RAD |
1 | - |
|
Datasheet | Radial, Can | 320 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 2.4 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 5.039" (128.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
|
C44ASGP4400ZA0JCAP FILM 4UF 5% 1.5KVDC RADIAL |
4 | - |
|
Datasheet | Radial, Can | 4 µF | ±5% | 630V | 1500V (1.5kV) | Polypropylene (PP), Metallized | 2 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 2.362" Dia (60.00mm) | 4.055" (103.00mm) | Threaded, Male | 0.878" (22.30mm) | General Purpose | - | - |
|
C44PPGR5330RASKCAP FILM 33UF 10% 1.28KVDC RAD |
9,530 | - |
|
Datasheet | Radial, Can | 33 µF | ±10% | 550V | 1280V (1.28kV) | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis, Stud Mount | 2.953" Dia (75.00mm) | 4.685" (119.00mm) | Threaded, Male | 1.378" (35.00mm) | Power Factor Correction (PFC); Commutation; EMI, RFI Suppression | - | Long Life |
|
|
C44PXGR5200RCSKCAP FILM 20UF 10% 2.3KVDC RADIAL |
5,681 | - |
|
Datasheet | Radial, Can | 20 µF | ±10% | 1000V (1kV) | 2300V (2.3kV) | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis, Stud Mount | 2.953" Dia (75.00mm) | 5.591" (142.00mm) | Threaded, Male | 1.378" (35.00mm) | Power Factor Correction (PFC); Commutation; EMI, RFI Suppression | - | Long Life |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
