Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C4AF1EW5550A3AKCAP FILM 55UF 10% 500VDC RADIAL |
2,933 | - |
|
Datasheet | Radial - 4 Leads | 55 µF | ±10% | 250V | 500V | Polypropylene (PP), Metallized | 2.4 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 2.217" (56.30mm) | PC Pins | 2.067" (52.50mm) | Automotive | AEC-Q200 | - |
|
R75MW510050H3JCAP FILM 10UF 5% 400VDC RADIAL |
6,493 | - |
|
Datasheet | Radial | 10 µF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | 4.8 mOhms | -55°C ~ 125°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 1.736" (44.10mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
C4AQHBW5550P3MJCAP FILM 55UF 5% 600VDC RADIAL |
5 | - |
|
Datasheet | Radial - 4 Leads | 55 µF | ±5% | - | 600V | Polypropylene (PP), Metallized | 4.5 mOhms | -55°C ~ 125°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.783" (45.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESL |
|
|
C4AQIBW5200A3JJCAP FILM 20UF 5% 800VDC RADIAL |
7,322 | - |
|
Datasheet | Radial - 4 Leads | 20 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 4.7 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.102" W (42.00mm x 28.00mm) | 1.465" (37.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
C4AF9EW5375T3AKFILM, POWER, METALLIZED POLYPROP |
5 | - |
|
Datasheet | Radial - 4 Leads | 37.5 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | 2.8 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 2.217" (56.30mm) | PC Pins | 2.067" (52.50mm) | Automotive | AEC-Q200 | - |
|

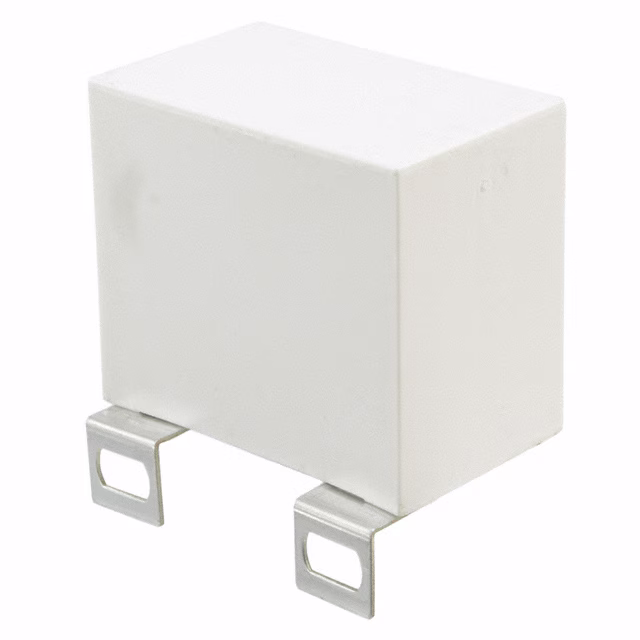

C4BSPBX4300ZANJCAP FILM 3UF 5% 1.2KVDC SCREW |
2,198 | - |
|
Datasheet | Rectangular Box | 3 µF | ±5% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 2.5 mOhms | -40°C ~ 85°C | Chassis Mount | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | Screw Terminals | 1.614" (41.00mm) | DC Link, DC Filtering; Snubber | - | - |
|
|
C4AF1EW5550T3AKFILM, POWER, METALLIZED POLYPROP |
4 | - |
|
Datasheet | Radial - 4 Leads | 55 µF | ±10% | 250V | 500V | Polypropylene (PP), Metallized | 2.4 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 2.217" (56.30mm) | PC Pins | 2.067" (52.50mm) | Automotive | AEC-Q200 | - |
|
|
C4AFBEW5120T3BKFILM, RADIAL, POWER BOX, AC FILT |
4,815 | - |
|
Datasheet | Radial - 4 Leads | 12 µF | ±10% | 600V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 2.6 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 2.571" (65.30mm) | PC Pins | 2.067" (52.50mm) | Automotive | AEC-Q200 | - |
|
JSNDK5560KB6L0CAP FILM 56UF 10% 63VDC SMD |
9,391 | - |
|
Datasheet | SMD, J-Lead | 56 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.681" L x 0.846" W (17.30mm x 21.50mm) | 0.701" (17.80mm) | - | - | DC Link, DC Filtering | - | Low ESR, Low ESL |
|
C44APFP4150ZA0JCAP FILM 1.5UF 5% 1.2KVDC RADIAL |
5,172 | - |
|
Datasheet | Radial, Can | 1.5 µF | ±5% | 500V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 2.5 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 1.772" Dia (45.00mm) | 3.228" (82.00mm) | Threaded, Male | 0.878" (22.30mm) | General Purpose | - | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
