Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C44UQGT6760M87KCAP FILM 760UF 10% 1.1KVDC RAD |
1 | - |
|
Datasheet | Radial, Can | 760 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 2.3 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 10.709" (272.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
|
C44UOGT6900M51KCAP FILM 900UF 10% 900VDC RADIAL |
9,937 | - |
|
Datasheet | Radial, Can | 900 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | 1.2 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 4.567" Dia (116.00mm) | 5.433" (138.00mm) | Threaded, Female | 1.969" (50.00mm) | DC Link, DC Filtering | - | - |
|
|
C44UUGT6400M51KCAP FILM 400UF 10% 1.3KVDC RAD |
1 | - |
|
Datasheet | Radial, Can | 400 µF | ±10% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 1.7 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 4.567" Dia (116.00mm) | 5.433" (138.00mm) | Threaded, Female | 1.969" (50.00mm) | DC Link, DC Filtering | - | - |
|
|
C44UOGT7110M52KCAP FILM 1100UF 10% 900VDC RAD |
4,077 | - |
|
Datasheet | Radial, Can | 1100 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | 1.4 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 4.567" Dia (116.00mm) | 6.220" (158.00mm) | Threaded, Female | 1.969" (50.00mm) | DC Link, DC Filtering | - | - |
|
|
C44UQGT6560M51KCAP FILM 560UF 10% 1.1KVDC RAD |
3,048 | - |
|
Datasheet | Radial, Can | 560 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 1.5 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 4.567" Dia (116.00mm) | 5.433" (138.00mm) | Threaded, Female | 1.969" (50.00mm) | DC Link, DC Filtering | - | - |
|
|
C44UUGT6470M52KCAP FILM 470UF 10% 1.3KVDC RAD |
9,010 | - |
|
Datasheet | Radial, Can | 470 µF | ±10% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 2 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 4.567" Dia (116.00mm) | 6.220" (158.00mm) | Threaded, Female | 1.969" (50.00mm) | DC Link, DC Filtering | - | - |
|

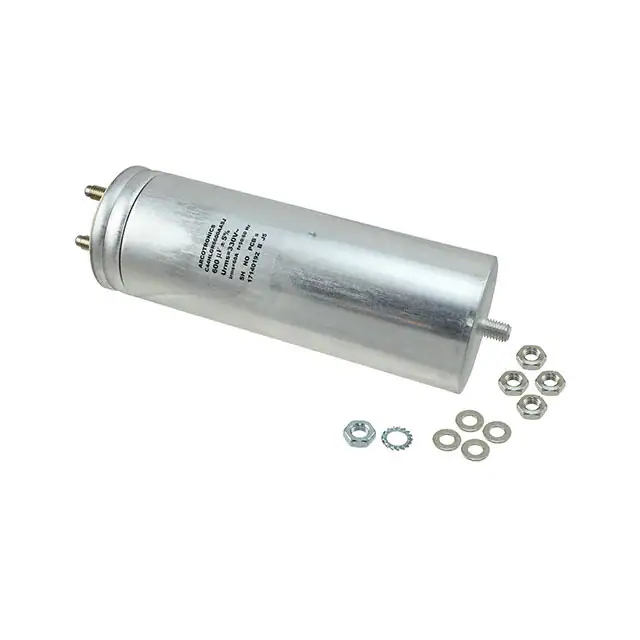

C44HLGR6600AASJCAP FILM 600UF 5% 700VDC RADIAL |
9,904 | - |
|
Datasheet | Radial, Can | 600 µF | ±5% | 330V | 700V | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 9.606" (244.00mm) | Threaded, Male | 1.378" (35.00mm) | Power Factor Correction (PFC); Commutation | - | Long Life |
|
|
C44UUGT6780M53KCAP FILM 780UF 10% 1.3KVDC RAD |
4,491 | - |
|
Datasheet | Radial, Can | 780 µF | ±10% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 1.5 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 4.567" Dia (116.00mm) | 9.370" (238.00mm) | Threaded, Female | 1.969" (50.00mm) | DC Link, DC Filtering | - | - |
|
|
C44UVGT6700M32KC44U_M, FILM, METALLIZED POLYPRO |
6,743 | - |
|
Datasheet | Radial, Can | 700 µF | ±10% | - | 1800V (1.8kV) | Polypropylene (PP), Metallized | 1.25 mOhms | -40°C ~ 75°C | Chassis Mount | 5.354" Dia (136.00mm) | 9.213" (234.00mm) | Threaded, Female | 1.969" (50.00mm) | DC Link, DC Filtering | - | Long Life |
|
|
C44UVGT6450M53KCAP FILM 450UF 10% 1.8KVDC RAD |
4,985 | - |
|
Datasheet | Radial, Can | 450 µF | ±10% | - | 1800V (1.8kV) | Polypropylene (PP), Metallized | 1.8 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 4.567" Dia (116.00mm) | 9.370" (238.00mm) | Threaded, Female | 1.969" (50.00mm) | DC Link, DC Filtering | - | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
