Film Capacitors
Browse available Film Capacitors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

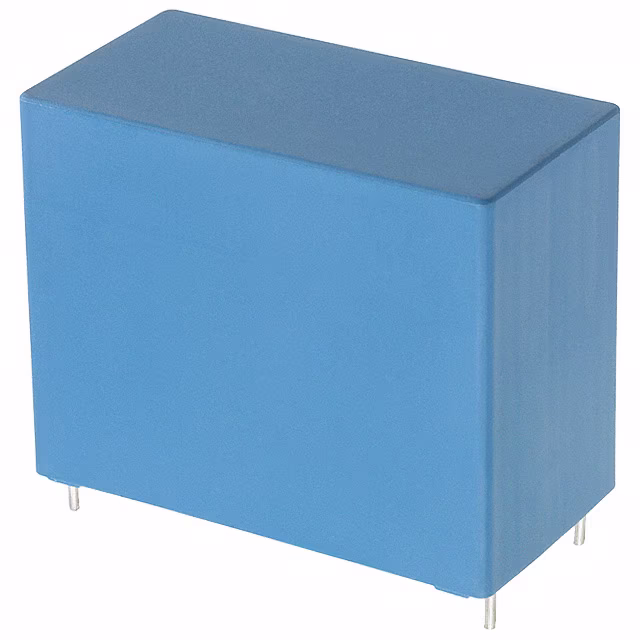

B32778G8456K000CAP FILM 45UF 800VDC RAD 4 LEAD |
734 | - |
|
Datasheet | Radial - 4 Leads | 45 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 6.6 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Long Life |
|
SMC12.7105J50B31TR24CAP FILM 1UF 5% 50VDC SMD |
875 | - |
|
Datasheet | Nonstandard | 1 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 125°C | Surface Mount | 0.500" L x 0.453" W (12.70mm x 11.50mm) | 0.256" (6.50mm) | Solder Pads | - | General Purpose | - | High Temperature |
|
C4AEOBW5400A3NJCAP FILM 40UF 5% 900VDC RADIAL |
340 | - |
|
Datasheet | Radial - 4 Leads | 40 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 3.3 mOhms | -40°C ~ 85°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
C4AQLBW6130A3NKCAP FILM 130UF 10% 500VDC RADIAL |
386 | - |
|
Datasheet | Radial - 4 Leads | 130 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 2.4 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.980" (50.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
940C10W2K-FCAP FILM 2UF 10% 1KVDC AXIAL |
502 | - |
|
Datasheet | Axial | 2 µF | ±10% | 500V | 1000V (1kV) | Polypropylene (PP), Metallized | 3 mOhms | -55°C ~ 105°C | Through Hole | 1.398" Dia x 1.811" L (35.50mm x 46.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
FFV36L0905K--CAP FILM 9UF 10% 1.1KVDC RADIAL |
441 | - |
|
Datasheet | Radial - 4 Leads | 9 µF | ±10% | 180V | 1100V (1.1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.575" L x 1.417" W (40.00mm x 36.00mm) | 1.575" (40.00mm) | PC Pins | 0.984" (25.00mm) | General Purpose | - | - |
|

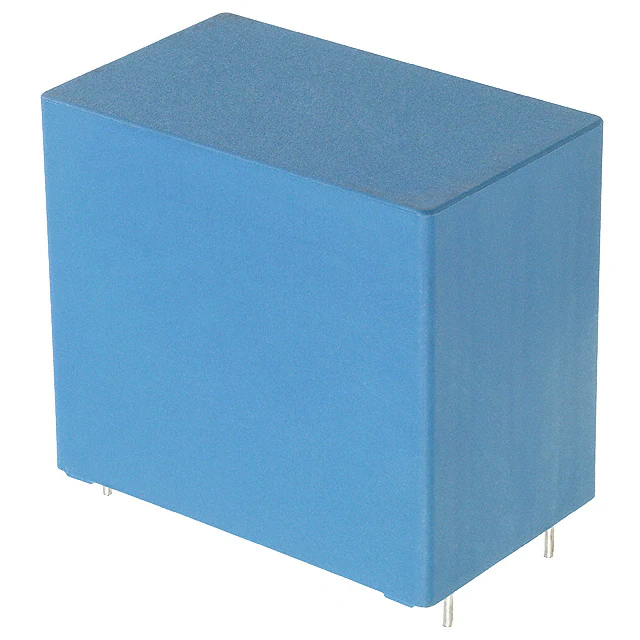

B32778G0406K000CAP FILM 40UF 1.1KVDC RAD 4 LEAD |
479 | - |
|
Datasheet | Radial - 4 Leads | 40 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 6.2 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Long Life |
|
|
940C20W1K-FCAP FILM 1UF 10% 2KVDC AXIAL |
498 | - |
|
Datasheet | Axial | 1 µF | ±10% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 105°C | Through Hole | 1.614" Dia x 2.126" L (41.00mm x 54.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
|
FFV36A0206K--CAP FILM 20UF 10% 700VDC RADIAL |
428 | - |
|
Datasheet | Radial - 4 Leads | 20 µF | ±10% | 120V | 700V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.575" L x 1.417" W (40.00mm x 36.00mm) | 1.575" (40.00mm) | PC Pins | 0.984" (25.00mm) | General Purpose | - | - |
|
FFB54I0206K--CAP FILM 20UF 10% 400VDC RADIAL |
134 | - |
|
Datasheet | Radial | 20 µF | ±10% | 105V | 400V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.457" (37.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | - |
|
935C4W3K-FCAP FILM 3UF 10% 400VDC AXIAL |
1,977 | - |
|
Datasheet | Axial | 3 µF | ±10% | 250V | 400V | Polypropylene (PP), Metallized | 12 mOhms | -55°C ~ 105°C | Through Hole | 0.961" Dia x 1.748" L (24.40mm x 44.40mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|
RA6106K100CAP FILM 10UF 10% 100VDC RADIAL |
511 | - |
|
Datasheet | Radial | 10 µF | ±10% | 80V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.650" L x 0.260" W (16.50mm x 6.60mm) | 0.461" (11.70mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching; High Pulse, DV/DT; EMI, RFI Suppression | - | Low ESR; Low ESL; Long Life |
|
|
C4AQLBW6100A3MKCAP FILM 100UF 10% 500VDC RADIAL |
132 | - |
|
Datasheet | Radial - 4 Leads | 100 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 3 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.783" (45.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
B32361A4206J080CAP FILM 20UF 5% 480VAC RADIAL |
876 | - |
|
Datasheet | Radial, Can | 20 µF | ±5% | 480V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis, Stud Mount | 2.500" Dia (63.50mm) | 2.756" (70.00mm) | Threaded, Male | 1.378" (35.00mm) | General Purpose | - | - |
|
|
B32361B3107J030CAP FILM 100UF 5% 330VAC RADIAL |
447 | - |
|
Datasheet | Radial, Can | 100 µF | ±5% | 330V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis, Stud Mount | 2.500" Dia (63.50mm) | 5.276" (134.00mm) | Threaded, Male | 1.378" (35.00mm) | General Purpose | - | - |
|
944U101K122ACICAP FILM 100UF 10% 1.2KVDC RAD |
2,848 | - |
|
Datasheet | Radial, Can | 100 µF | ±10% | - | 1200V (1.2kV) | Polypropylene (PP), Metallized | 1.3 mOhms | -40°C ~ 85°C | Chassis Mount | 3.327" Dia (84.50mm) | 2.559" (65.00mm) | Threaded, Female | 1.772" (45.00mm) | DC Link, DC Filtering | - | - |
|
UNL4W30K-FCAP FILM 30UF 10% 400VDC RADIAL |
359 | - |
|
Datasheet | Radial, Can | 30 µF | ±10% | - | 400V | Polypropylene (PP), Metallized | 6 mOhms | -55°C ~ 105°C | Through Hole | 1.378" Dia (35.00mm) | 2.134" (54.20mm) | PC Pins | 0.500" (12.70mm) | - | - | Low ESR |
|
|
B32361A4606J080CAP FILM 60UF 5% 480VAC RADIAL |
214 | - |
|
Datasheet | Radial, Can | 60 µF | ±5% | 480V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis, Stud Mount | 2.500" Dia (63.50mm) | 5.197" (132.00mm) | Threaded, Male | 1.378" (35.00mm) | General Purpose | - | - |
|
MKP1848680704Y5CAP FILM 80UF 5% 700VDC RADIAL |
492 | - |
|
Datasheet | Radial - 4 Leads | 80 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 4.5 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESR |
|
|
FFV36C0136K--CAP FILM 13UF 10% 900VDC RADIAL |
448 | - |
|
Datasheet | Radial - 4 Leads | 13 µF | ±10% | 150V | 900V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.575" L x 1.417" W (40.00mm x 36.00mm) | 1.575" (40.00mm) | PC Pins | 0.984" (25.00mm) | General Purpose | - | - |
