Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
664HC1600K2CM6CAP FILM 0.66UF 600VAC CHAS MT |
3 | - |
|
Datasheet | Nonstandard | 0.66 µF | ±10% | 600V | - | Polypropylene (PP) | 0.8 mOhms | -40°C ~ 85°C | Chassis Mount | 2.677" L x 1.181" W (68.00mm x 30.00mm) | 1.193" (30.30mm) | Threaded, Female | - | Conduction Cooled; High Pulse, DV/DT | - | - |
|
104HC1102K2SM6CAP FILM 0.1UF 10% 1KVAC CHASS |
8 | - |
|
Datasheet | Nonstandard | 0.1 µF | ±10% | 1000V (1kV) | - | Polypropylene (PP) | 1.5 mOhms | -40°C ~ 85°C | Chassis Mount | 2.677" L x 1.189" W (68.00mm x 30.20mm) | 1.201" (30.50mm) | Threaded, Female | - | Conduction Cooled; High Pulse, DV/DT | - | - |
|

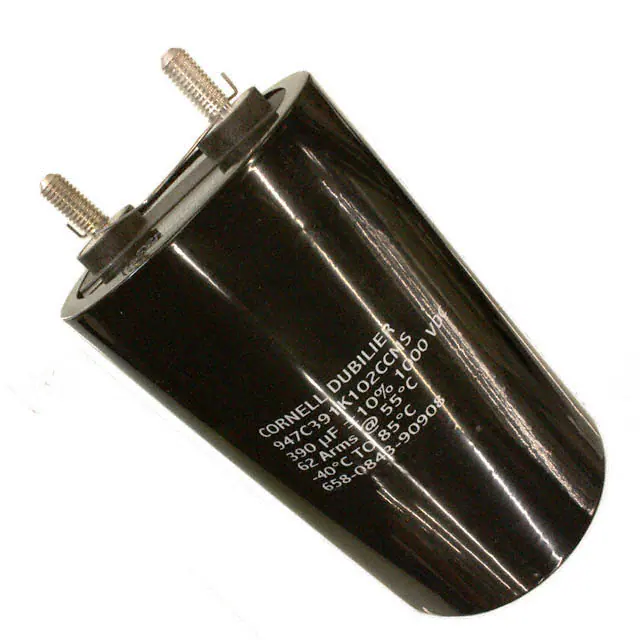

947C391K102CCMSCAP FILM 390UF 10% 1KVDC RADIAL |
19 | - |
|
Datasheet | Radial, Can | 390 µF | ±10% | 230V | 1000V (1kV) | Polypropylene (PP), Metallized | 3.7 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.543" Dia (90.00mm) | 5.787" (147.00mm) | Threaded, Male | 1.772" (45.00mm) | DC Link, DC Filtering | - | Long Life, Low ESR |
|
104LC3102KL505HM6CAP FILM 0.1UF 10% 1KVAC SMD |
4 | - |
|
Datasheet | Nonstandard | 0.1 µF | ±10% | 1000V (1kV) | - | Polypropylene (PP) | 1.2 mOhms | -40°C ~ 85°C | Chassis Mount | 1.969" L x 1.969" W (50.00mm x 50.00mm) | 1.339" (34.00mm) | Solder Pads | - | Conduction Cooled; High Pulse, DV/DT | - | - |
|

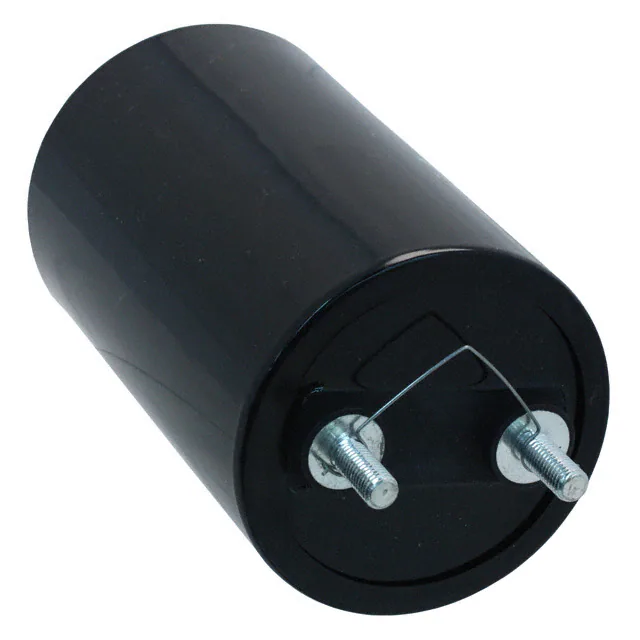

947C601K801CCMSCAP FILM 600UF 10% 800VDC RADIAL |
7 | - |
|
Datasheet | Radial, Can | 600 µF | ±10% | 230V | 800V | Polypropylene (PP), Metallized | 3.1 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.543" Dia (90.00mm) | 5.787" (147.00mm) | Threaded, Male | 1.772" (45.00mm) | DC Link, DC Filtering | - | Long Life, Low ESR |
|
DMT1P1K-FCAP FILM 0.1UF 10% 100VDC RADIAL |
45 | - |
|
Datasheet | Radial | 0.1 µF | ±10% | 65V | 100V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.681" L x 0.291" W (17.30mm x 7.40mm) | 0.539" (13.68mm) | PC Pins | 0.543" (13.80mm) | General Purpose | - | - |
|
160272J1000C-FCAP FILM 2700PF 5% 1KVDC RADIAL |
55 | - |
|
Datasheet | Radial | 2700 pF | ±5% | 250V | 1000V (1kV) | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.374" (9.50mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
684MWR400KCAP FILM 0.68UF 10% 400VDC AXIAL |
67 | - |
|
Datasheet | Axial | 0.68 µF | ±10% | 200V | 400V | Polyester, Metallized | 2.08 Ohms | -40°C ~ 105°C | Through Hole | 0.492" Dia x 1.339" L (12.50mm x 34.00mm) | - | PC Pins | - | General Purpose | - | Low ESR |
|
564MKP275KGCAP FILM 0.56UF 10% 310VAC RAD |
26 | - |
|
Datasheet | Radial | 0.56 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 0.563" (14.30mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
ALH335K251A052CAP FILM 3.3UF 10% 250VAC RADIAL |
54 | - |
|
Datasheet | Radial | 3.3 µF | ±10% | 250V | - | Polypropylene (PP) | 6.2 mOhms | -40°C ~ 105°C | Through Hole | 1.260" L x 0.551" W (32.00mm x 14.00mm) | 1.134" (28.80mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
