Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALH505K351B084CAP FILM 5UF 350VAC RAD 4 LEAD |
56 | - |
|
Datasheet | Radial - 4 Leads | 5 µF | ±10% | 350V | - | Polypropylene (PP) | 6.8 mOhms | -40°C ~ 105°C | Through Hole | 1.673" L x 0.787" W (42.50mm x 20.00mm) | 1.606" (40.80mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
|
ALH305K401A082CAP FILM 3UF 10% 400VAC RADIAL |
61 | - |
|
Datasheet | Radial | 3 µF | ±10% | 400V | - | Polypropylene (PP) | 5.7 mOhms | -40°C ~ 105°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.488" (37.80mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|

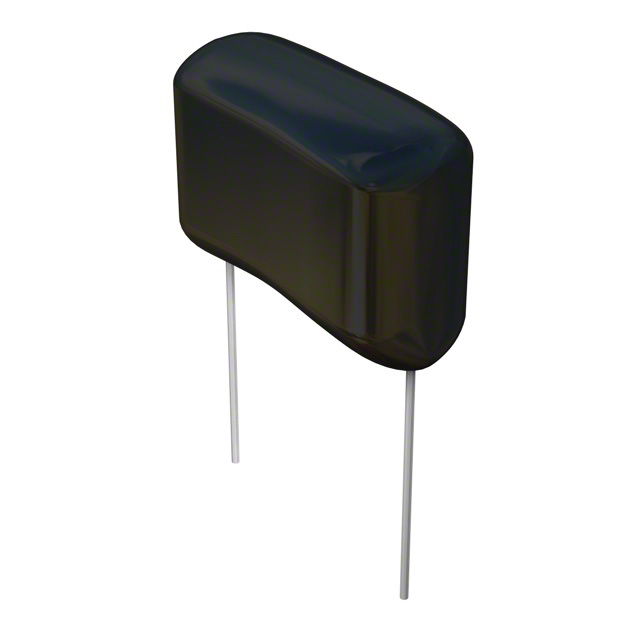

DME6W1K-FCAP FILM 1UF 10% 630VDC RADIAL |
85 | - |
|
Datasheet | Radial | 1 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.925" (23.50mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
|
ALH126K351C064CAP FILM 12UF 350VAC RAD 4 LEAD |
32 | - |
|
Datasheet | Radial - 4 Leads | 12 µF | ±10% | 350V | - | Polypropylene (PP) | 6.8 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.811" (46.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
942C16P22K-FCAP FILM 0.22UF 1.6KVDC AXIAL |
50 | - |
|
Datasheet | Axial | 0.22 µF | ±10% | 460V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 105°C | Through Hole | 0.925" Dia x 1.811" L (23.50mm x 46.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
BLH306K901C064DC LINK, THB, 85/85, AEC-Q200 |
18 | - |
|
Datasheet | Radial - 4 Leads | 30 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | 5.5 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.693" W (57.50mm x 43.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
|
ALH106K351B104CAP FILM 10UF 350VAC RAD 4 LEAD |
12 | - |
|
Datasheet | Radial - 4 Leads | 10 µF | ±10% | 350V | - | Polypropylene (PP) | 5.3 mOhms | -40°C ~ 105°C | Through Hole | 1.673" L x 1.181" W (42.50mm x 30.00mm) | 1.803" (45.80mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
|
ALH206K351C084CAP FILM 20UF 350VAC RAD 4 LEAD |
16 | - |
|
Datasheet | Radial - 4 Leads | 20 µF | ±10% | 350V | - | Polypropylene (PP) | 5.9 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 2.008" (51.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
|
ALH156K251B064CAP FILM 15UF 250VAC RAD 4 LEAD |
66 | - |
|
Datasheet | Radial - 4 Leads | 15 µF | ±10% | 250V | - | Polypropylene (PP) | 5.2 mOhms | -40°C ~ 105°C | Through Hole | 1.673" L x 1.102" W (42.50mm x 28.00mm) | 1.488" (37.80mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|

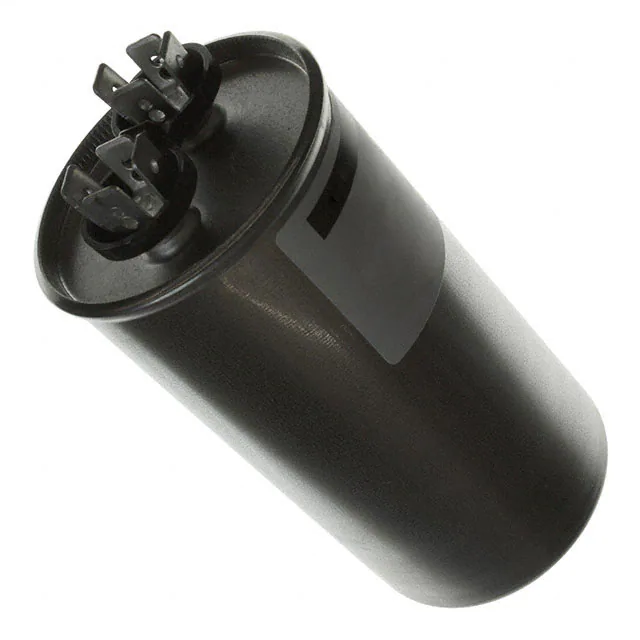

23FD3303A-FCAP FILM 3UF 10% 330VAC RADIAL |
41 | - |
|
Datasheet | Radial, Can | 3 µF | ±10% | 330V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 1.875" Dia (47.63mm), Lip | 2.630" (66.80mm) | Quick Connect, Disconnect | 0.813" (20.64mm) | Motor Run; Power Factor Correction (PFC) | - | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
