Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

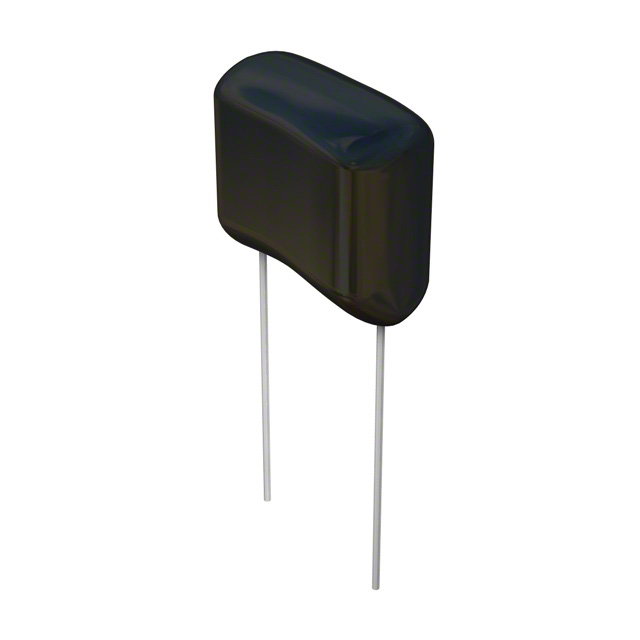

DME6P15K-FCAP FILM 0.15UF 10% 630VDC RAD |
69 | - |
|
Datasheet | Radial | 0.15 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.728" L x 0.315" W (18.50mm x 8.00mm) | 0.689" (17.50mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|

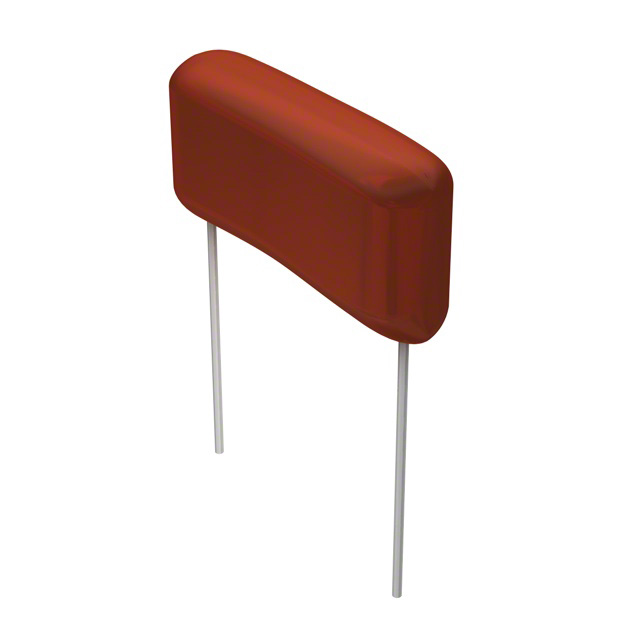

DPPM20D47K-FCAP FILM 4700PF 10% 2KVDC RADIAL |
29 | - |
|
Datasheet | Radial | 4700 pF | ±10% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.394" W (31.00mm x 10.00mm) | 0.807" (20.50mm) | PC Pins | 1.043" (26.50mm) | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
225P47294XD3CAP FILM 4700PF 10% 400VDC RAD |
66 | - |
|
Datasheet | Radial | 4700 pF | ±10% | - | 400V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.799" L x 0.252" W (20.30mm x 6.40mm) | 0.551" (14.00mm) | PC Pins | 0.374" (9.50mm) | Audio; DC Link, DC Filtering | - | - |
|
ALH225K351A072CAP FILM 2.2UF 10% 350VAC RADIAL |
52 | - |
|
Datasheet | Radial | 2.2 µF | ±10% | 350V | - | Polypropylene (PP) | 6.9 mOhms | -40°C ~ 105°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.331" (33.80mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
|
ALH335K351A082CAP FILM 3.3UF 10% 350VAC RADIAL |
48 | - |
|
Datasheet | Radial | 3.3 µF | ±10% | 350V | - | Polypropylene (PP) | 5.7 mOhms | -40°C ~ 105°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.488" (37.80mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
|
225P10392XA3CAP FILM 10000PF 10% 200VDC RAD |
93 | - |
|
Datasheet | Radial | 10000 pF | ±10% | - | 200V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.799" L x 0.252" W (20.30mm x 6.40mm) | 0.579" (14.70mm) | PC Pins | 0.614" (15.60mm) | Audio; DC Link, DC Filtering | - | - |
|
|
ALH685K251A082CAP FILM 6.8UF 10% 250VAC RADIAL |
39 | - |
|
Datasheet | Radial | 6.8 µF | ±10% | 250V | - | Polypropylene (PP) | 4.9 mOhms | -40°C ~ 105°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.488" (37.80mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
BLH505K901A062DC LINK, THB, 85/85, AEC-Q200 |
45 | - |
|
Datasheet | Radial | 5 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | 12.5 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.134" (28.80mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
940C6P15K-FCAP FILM 0.15UF 10% 600VDC AXIAL |
93 | - |
|
Datasheet | Axial | 0.15 µF | ±10% | 275V | 600V | Polypropylene (PP), Metallized | 13 mOhms | -55°C ~ 105°C | Through Hole | 0.413" Dia x 1.339" L (10.50mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
942C8P22K-FCAP FILM 0.22UF 10% 850VDC AXIAL |
41 | - |
|
Datasheet | Axial | 0.22 µF | ±10% | 360V | 850V | Polypropylene (PP), Metallized | 7 mOhms | -55°C ~ 105°C | Through Hole | 0.709" Dia x 1.339" L (18.00mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
