Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Series.jpg "B32928C3206M000")
|

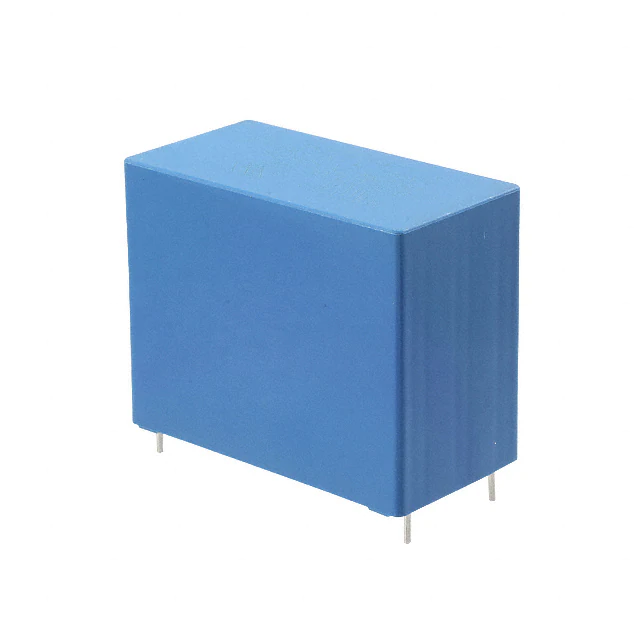

B32928C3206M000CAP FILM 20UF 20% 630VDC RADIAL |
480 | - |
|
Datasheet | Radial | 20 µF | ±20% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | EMI, RFI Suppression | X2 | - |
|
B32776T5126K000CAP FILM 12UF 10% 575VDC RADIAL |
1,966 | - |
|
Datasheet | Radial | 12 µF | ±10% | - | 575V | Polypropylene (PP), Metallized | 14.4 mOhms | -40°C ~ 105°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 0.748" (19.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
B32716H1206K000MKP DC FILTERING - 1100VDC, 20UF |
144 | - |
|
Datasheet | Radial - 4 Leads | 20 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 3.4 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.299" W (42.00mm x 33.00mm) | 1.890" (48.00mm) | PC Pins | 1.476" (37.50mm) | Automotive | AEC-Q200 | Long Life |
|
|
B32928C3206K000CAP FILM 20UF 10% 630VDC RADIAL |
298 | - |
|
Datasheet | Radial | 20 µF | ±10% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | EMI, RFI Suppression | X2 | - |
|
|
B32776Z4506K000FILM CAP MKP DC FILTERING - 500V |
357 | - |
|
Datasheet | Radial - 4 Leads | 50 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 4.3 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.102" W (42.00mm x 28.00mm) | 1.673" (42.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
B32676G1106K Z 1CAP FILM 10UF 10% 750VDC RADIAL |
25,853 | - |
|
Datasheet | Radial | 10 µF | ±10% | - | 750V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | AEC-Q200 | Long Life |
|
B33331V7206J080CAP FILM 20UF 5% 460VAC RADIAL |
184 | - |
|
Datasheet | Radial, Can | 20 µF | ±5% | 460V | - | Polypropylene (PP), Metallized | 11 mOhms | -40°C ~ 85°C | Chassis Mount | 1.594" Dia (40.50mm) | 3.425" (87.00mm) | Quick Connect - 0.250" (6.3mm) | - | General Purpose | - | - |
|
B32926D3156M000CAP FILM 15UF 20% 630VDC RADIAL |
150 | - |
|
Datasheet | Radial | 15 µF | ±20% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 1.654" L x 1.299" W (42.00mm x 33.00mm) | 1.890" (48.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | - |
|
B32332I6156J080CAP FILM 15UF 5% 450VAC RADIAL |
150 | - |
|
Datasheet | Radial, Can | 15 µF | ±5% | 450V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.181" Dia (30.00mm) | 3.189" (81.00mm) | Quick Connect, Disconnect | - | Motor Run | - | - |
|
|
B32778Z5606K000CAP FILM 60UF 600VDC RDL 4 LEAD |
233 | - |
|
Datasheet | Radial - 4 Leads | 60 µF | ±10% | - | 600V | Polypropylene (PP), Metallized | 5.8 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Long Life |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
