Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32776G8206K000CAP FILM 20UF 800VDC RAD 4 LEAD |
147 | - |
|
Datasheet | Radial - 4 Leads | 20 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 7.5 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.102" W (42.00mm x 28.00mm) | 1.457" (37.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
 Series.jpg "B32928C3256K000")
|
B32928C3256K000CAP FILM 25UF 10% 630VDC RADIAL |
709 | - |
|
Datasheet | Radial | 25 µF | ±10% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | EMI, RFI Suppression | X2 | - |
|
B32564J1336K000CAP FILM 33UF 10% 100VDC 2DIP |
1,973 | - |
|
Datasheet | 2-DIP | 33 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 1.142" L x 0.512" W (29.00mm x 13.00mm) | 0.780" (19.80mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
B32526T3226K000CAP FILM 22UF 10% 250VDC RADIAL |
400 | - |
|
Datasheet | Radial | 22 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET) | - | -55°C ~ 125°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 0.748" (19.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | - | - |
|

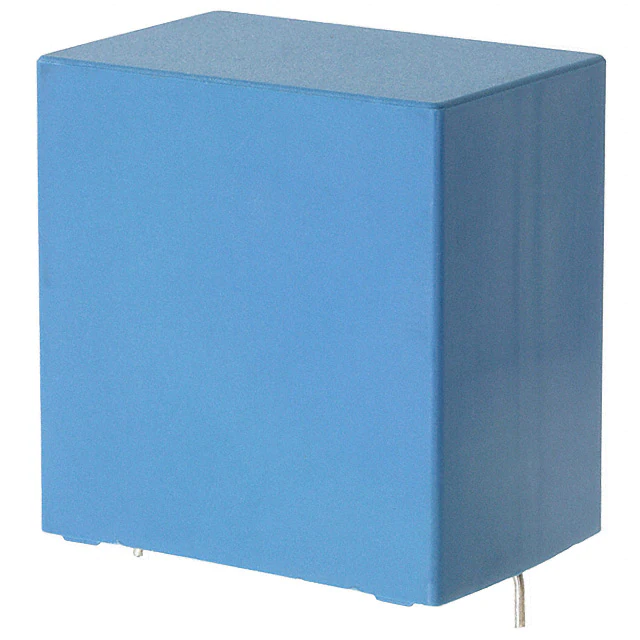

B32526R3686K000CAP FILM 68UF 10% 250VDC RADIAL |
386 | - |
|
Datasheet | Radial | 68 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | - | - | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | - | - |
|
B32776E8306K000CAP FILM 30UF 10% 800VDC RADIAL |
1,128 | - |
|
Datasheet | Radial | 30 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 5.5 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
B32756G8156K000CAP FILM 15UF 10% 600VDC RADIAL |
135 | - |
|
Datasheet | Radial - 4 Leads | 15 µF | ±10% | 350V | 600V | Polypropylene (PP), Metallized | 2.6 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.299" W (42.00mm x 33.00mm) | 1.890" (48.00mm) | PC Pins | 1.476" (37.50mm) | General Purpose | - | - |
|
B32320I8117K000110MFD 800V PP 50X95 PBT 5 PIN |
190 | - |
|
Datasheet | Radial, Can - 5 Lead | 110 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 5 mOhms | -40°C ~ 85°C | Through Hole | 1.969" Dia (50.00mm) | 3.740" (95.00mm) | Solder Lug | - | General Purpose | - | Long Life |
|

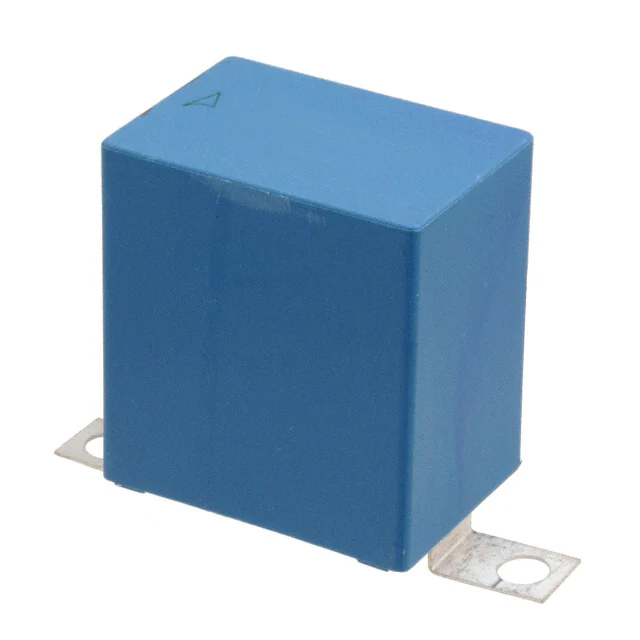

B32656S2104J564CAP FILM 0.1UF 5% 2KVDC SCREW |
984 | - |
|
Datasheet | Rectangular Box | 0.1 µF | ±5% | 800V | 2000V (2kV) | Polypropylene (PP), Metallized | 20 mOhms | -55°C ~ 100°C | Chassis Mount | - | - | Screw Terminals | 0.984" (25.00mm) | Snubber | - | Low ESL |
|
B32678G3476K000CAP FILM 47UF 10% 300VDC RADIAL |
179 | - |
|
Datasheet | Radial | 47 µF | ±10% | - | 300V | Polypropylene (PP), Metallized | 2.6 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | AEC-Q200 | Long Life |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
