Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

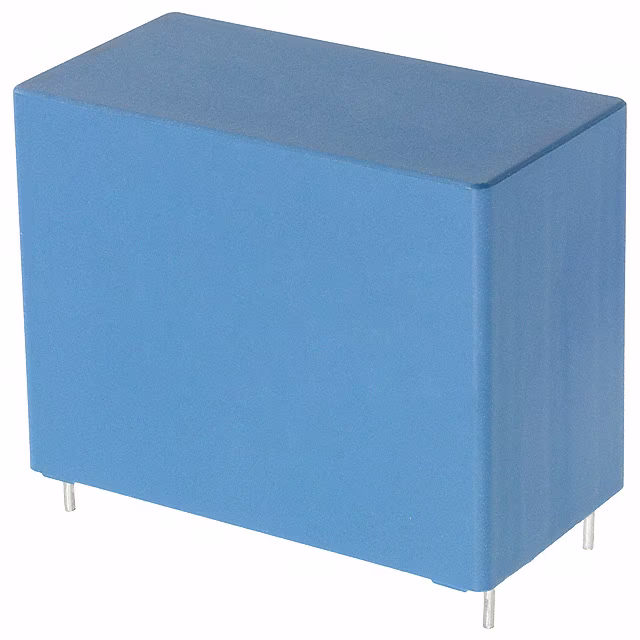

B32778G8506K000CAP FILM 50UF 800VDC RAD 4 LEAD |
125 | - |
|
Datasheet | Radial - 4 Leads | 50 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 6.3 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Long Life |
|
B32361A4406J080CAP FILM 40UF 5% 480VAC RADIAL |
223 | - |
|
Datasheet | Radial, Can | 40 µF | ±5% | 480V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis, Stud Mount | 2.500" Dia (63.50mm) | 4.213" (107.00mm) | Threaded, Male | 1.378" (35.00mm) | General Purpose | - | - |
|
|
B32361A3806J030CAP FILM 80UF 5% 330VAC RADIAL |
606 | - |
|
Datasheet | Radial, Can | 80 µF | ±5% | 330V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis, Stud Mount | 2.500" Dia (63.50mm) | 4.213" (107.00mm) | Threaded, Male | 1.378" (35.00mm) | General Purpose | - | - |
|
B32371A2207J050CAP FILM 200UF 5% 675VDC RADIAL |
201 | - |
|
Datasheet | Radial, Can | 200 µF | ±5% | 250V | 675V | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis, Stud Mount | 2.500" Dia (63.50mm) | 5.315" (135.00mm) | Threaded, Male | 1.378" (35.00mm) | General Purpose | - | - |
|
B32373A5476J030CAP FILM 47UF 5% 1.35KVDC RADIAL |
27 | - |
|
Datasheet | Radial, Can | 47 µF | ±5% | 530V | 1350V (1.35kV) | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis, Stud Mount | 2.953" Dia (75.00mm) | 4.823" (122.50mm) | Threaded, Male | 1.378" (35.00mm) | General Purpose | - | - |
|
B25680B1427A101CAP FILM 420UF 10% 1.1KV RADIAL |
280 | - |
|
Datasheet | Radial, Can | 420 µF | ±10% | - | 1100V (1.1kV) | - | 2.4 mOhms | -40°C ~ 85°C | Chassis Mount | 3.346" Dia (85.00mm) | 5.354" (136.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
|
B25680B0557K901CAP FILM 550UF 10% 900V RADIAL |
57 | - |
|
Datasheet | Radial, Can | 550 µF | ±10% | - | 900V | - | 2.3 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 5.354" (136.00mm) | Threaded, Female | 1.260" (32.00mm) | General Purpose | - | - |
|
B25632E0137K900POWER ELECTRONIC CAPACITORS (PEC |
62 | - |
|
Datasheet | Radial, Can | 130 µF | ±10% | - | 900V | - | 1.3 mOhms | -40°C ~ 85°C | Chassis Mount | 3.327" Dia (84.50mm) | 2.598" (66.00mm) | Threaded, Female | 1.772" (45.00mm) | DC Link, DC Filtering; Snubber | - | - |
|
B25690A0737K901CAP FILM 730UF 10% 900V RADIAL |
49 | - |
|
Datasheet | Radial, Can | 730 µF | ±10% | - | 900V | - | 1.6 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 6.929" (176.00mm) | Threaded, Female | 1.260" (32.00mm) | General Purpose | - | - |
|
B32362A4107J080CAP FILM 100UF 5% 480VAC RADIAL |
168 | - |
|
Datasheet | Radial, Can | 100 µF | ±5% | 480V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis, Stud Mount | 2.953" Dia (75.00mm) | 7.756" (197.00mm) | Threaded, Male | 1.378" (35.00mm) | General Purpose | - | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
