Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32656S0155J561CAP FILM 1.5UF 5% 1KVDC SCREW |
5,268 | - |
|
Datasheet | Rectangular Box | 1.5 µF | ±5% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 100°C | Chassis Mount | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.772" (45.00mm) | Screw Terminals | 1.004" (25.50mm) | Snubber | AEC-Q200 | Low ESL |
|

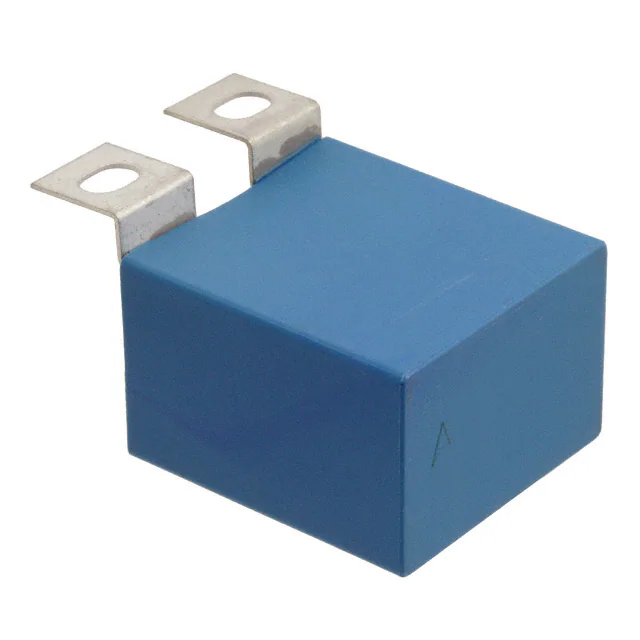

B32656S7145K561CAP FILM 1.4UF 10% 1.25KVDC SCRW |
9,253 | - |
|
Datasheet | Rectangular Box | 1.4 µF | ±10% | 500V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 15 mOhms | -55°C ~ 100°C | Chassis Mount | - | - | Screw Terminals | 1.004" (25.50mm) | Snubber | - | Low ESL |
|
B32656S2474K562CAP FILM 0.47UF 10% 2KVDC SCREW |
6,545 | - |
|
Datasheet | Rectangular Box | 0.47 µF | ±10% | 800V | 2000V (2kV) | Polypropylene (PP), Metallized | 8 mOhms | -55°C ~ 100°C | Chassis Mount | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.772" (45.00mm) | Screw Terminals | 0.866" (22.00mm) | Snubber | AEC-Q200 | Low ESL |
|
B32354S3356K010CAP FILM 35UF 10% 500VDC RADIAL |
6,563 | - |
|
Datasheet | Radial - 4 Leads | 35 µF | ±10% | 350V | 500V | Polypropylene (PP), Metallized | 10 mOhms | -40°C ~ 85°C | Through Hole | 2.264" L x 1.969" W (57.50mm x 50.00mm) | 2.165" (55.00mm) | PC Pins | 2.067" (52.50mm) | EMI, RFI Suppression | - | - |
|
|
B32354S3256K010CAP FILM 25UF 10% 500VDC RADIAL |
1 | - |
|
Datasheet | Radial - 4 Leads | 25 µF | ±10% | 350V | 500V | Polypropylene (PP), Metallized | 12 mOhms | -40°C ~ 85°C | Through Hole | 2.264" L x 1.575" W (57.50mm x 40.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | EMI, RFI Suppression | - | - |
|
B32320I0706K00070MFD 1100V PP 50X95 PBT 5 PIN |
6,866 | - |
|
Datasheet | Radial, Can - 5 Lead | 70 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 4.7 mOhms | -40°C ~ 85°C | Through Hole | 1.969" Dia (50.00mm) | 3.740" (95.00mm) | Solder Lug | - | General Purpose | - | Long Life |
|

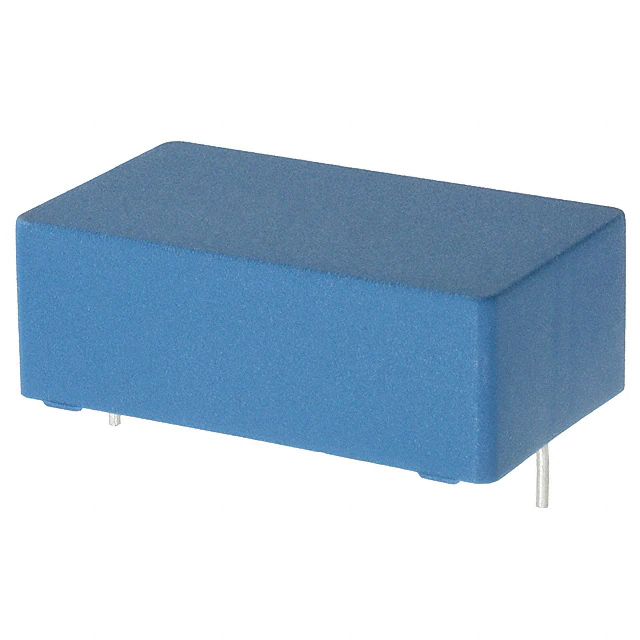

B32526T0566K000CAP FILM 56UF 10% 63VDC RADIAL |
8,167 | - |
|
Datasheet | Radial | 56 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET) | - | -55°C ~ 125°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 0.591" (15.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | - | - |
|
B32526T0826K000CAP FILM 82UF 10% 63VDC RADIAL |
6,895 | - |
|
Datasheet | Radial | 82 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET) | - | -55°C ~ 125°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 0.748" (19.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | - | - |
|
B32361A3706J030CAP FILM 70UF 5% 330VAC RADIAL |
2,389 | - |
|
Datasheet | Radial, Can | 70 µF | ±5% | 330V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis, Stud Mount | 2.500" Dia (63.50mm) | 4.213" (107.00mm) | Threaded, Male | 1.378" (35.00mm) | General Purpose | - | - |
|
B32928A4206K000CAP FILM 20UF 10% 650VDC RADIAL |
3,219 | - |
|
Datasheet | Radial - 4 Leads | 20 µF | ±10% | 350V | 650V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 2.244" (57.00mm) | PC Pins | 2.067" (52.50mm) | EMI, RFI Suppression | X2 | 85C/85% Humidity |
