Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

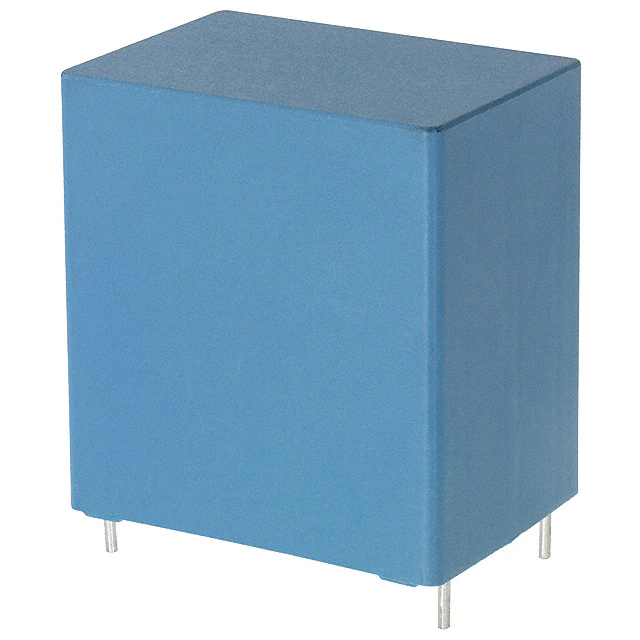

B32776G0146K000CAP FILM 14UF 1.1KVDC RAD 4 LEAD |
1,472 | - |
|
Datasheet | Radial - 4 Leads | 14 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 8.7 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.102" W (42.00mm x 28.00mm) | 1.457" (37.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
|
B32776G1106K000CAP FILM 10UF 1.3KVDC RAD 4 LEAD |
431 | - |
|
Datasheet | Radial - 4 Leads | 10 µF | ±10% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 9.6 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.102" W (42.00mm x 28.00mm) | 1.457" (37.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
B32916A3685K000CAP FILM 6.8UF 10% 760VDC RADIAL |
379 | - |
|
Datasheet | Radial | 6.8 µF | ±10% | 330V | 760V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 1.102" W (41.50mm x 28.00mm) | 1.673" (42.50mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X1 | - |
|
B32656S7105K577CAP FILM 1UF 10% 1.25KVDC SCREW |
153 | - |
|
Datasheet | Rectangular Box | 1 µF | ±10% | 500V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 100°C | Chassis Mount | 1.654" L x 1.102" W (42.00mm x 28.00mm) | 1.457" (37.00mm) | Screw Terminals | 1.366" (34.70mm) | Snubber | AEC-Q200 | Low ESL |
|
B32778Z4806K000CAP FILM 80UF 500VDC RDL 4 LEAD |
383 | - |
|
Datasheet | Radial - 4 Leads | 80 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 5.3 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Long Life |
|
|
B32776G1126K000CAP FILM 12UF 1.3KVDC RAD 4 LEAD |
515 | - |
|
Datasheet | Radial - 4 Leads | 12 µF | ±10% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 8.1 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.102" W (42.00mm x 28.00mm) | 1.673" (42.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
|
B32776G4306K000CAP FILM 30UF 450VDC RAD 4 LEAD |
2,087 | - |
|
Datasheet | Radial - 4 Leads | 30 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | 7 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.555" (39.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
B32354S3206K010CAP FILM 20UF 10% 500VDC RADIAL |
162 | - |
|
Datasheet | Radial - 4 Leads | 20 µF | ±10% | 350V | 500V | Polypropylene (PP), Metallized | 12 mOhms | -40°C ~ 85°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | EMI, RFI Suppression | - | - |
|
B32656S0125K563CAP FILM 1.2UF 10% 1KVDC SCREW |
110 | - |
|
Datasheet | Rectangular Box | 1.2 µF | ±10% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 100°C | Chassis Mount | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.555" (39.50mm) | Screw Terminals | 2.244" (57.00mm) | Snubber | AEC-Q200 | Low ESL |
|

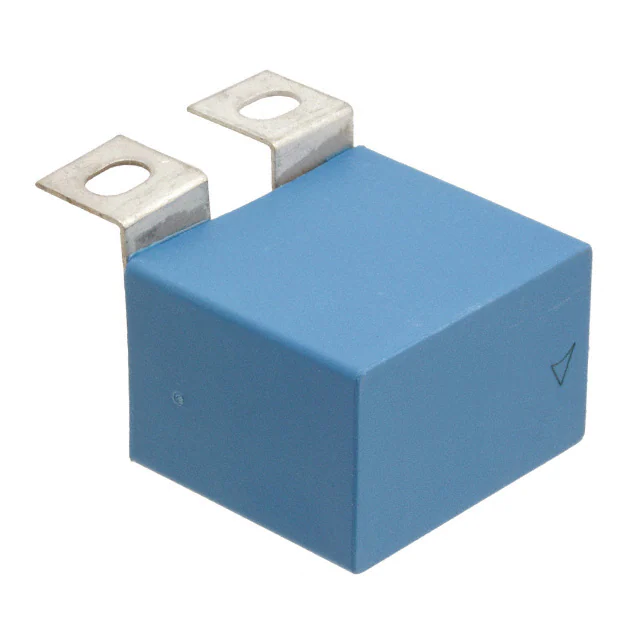

B32656S1474K561CAP FILM 0.47UF 10% 1.7KVDC SCRW |
159 | - |
|
Datasheet | Rectangular Box | 0.47 µF | ±10% | 750V | 1700V (1.7kV) | Polypropylene (PP), Metallized | 8 mOhms | -55°C ~ 100°C | Chassis Mount | 1.654" L x 1.102" W (42.00mm x 28.00mm) | 1.457" (37.00mm) | Screw Terminals | 1.004" (25.50mm) | Snubber | AEC-Q200 | Low ESL |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
