Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

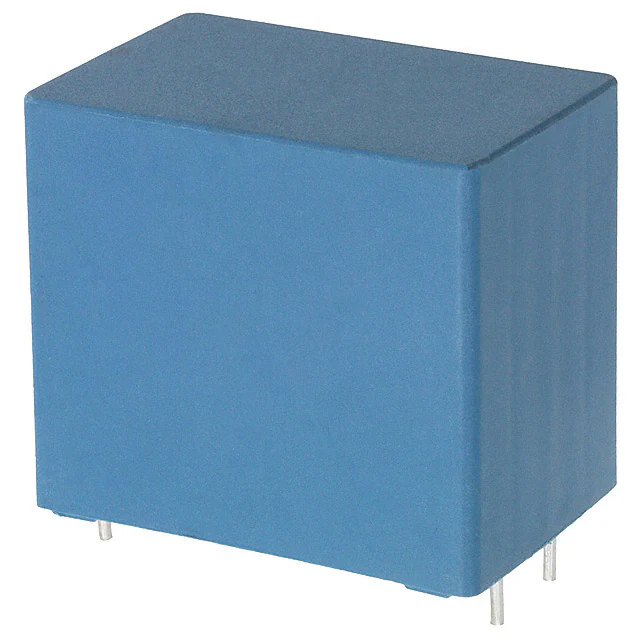

B32776G4506K000CAP FILM 50UF 450VDC RAD 4 LEAD |
5,281 | - |
|
Datasheet | Radial - 4 Leads | 50 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | 4.3 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.102" W (42.00mm x 28.00mm) | 1.673" (42.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
B32776G0206K000CAP FILM 20UF 1.1KVDC RAD 4 LEAD |
5,744 | - |
|
Datasheet | Radial - 4 Leads | 20 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 6 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
B32332I6306J080CAP FILM 30UF 5% 450VAC RADIAL |
137 | - |
|
Datasheet | Radial, Can | 30 µF | ±5% | 450V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.378" Dia (35.00mm) | 3.780" (96.00mm) | Quick Connect, Disconnect | - | Motor Run | - | - |
|
B32320I0157K000150MFD 1100V PP 60X120 PBT 5 PIN |
137 | - |
|
Datasheet | Radial, Can - 5 Lead | 150 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 4.3 mOhms | -40°C ~ 85°C | Through Hole | 2.362" Dia (60.00mm) | 4.724" (120.00mm) | Solder Lug | - | General Purpose | - | Long Life |
|
B32656S7125K561CAP FILM 1.2UF 10% 1.25KVDC SCRW |
254 | - |
|
Datasheet | Rectangular Box | 1.2 µF | ±10% | 500V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 100°C | Chassis Mount | - | - | Screw Terminals | 1.004" (25.50mm) | Snubber | - | Low ESL |
|
B32718H8506K000MKP DC FILTERING - 800VDC, 50UF |
401 | - |
|
Datasheet | Radial - 4 Leads | 50 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | Automotive | AEC-Q200 | Long Life |
|
|
B32676G8106K000CAP FILM 10UF 10% 875VDC RADIAL |
251 | - |
|
Datasheet | Radial | 10 µF | ±10% | - | 875V | Polypropylene (PP), Metallized | 3.7 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.299" W (42.00mm x 33.00mm) | 1.890" (48.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | AEC-Q200 | Long Life |
|
B32778G8606K000CAP FILM 60UF 800VDC RAD 4 LEAD |
4,312 | - |
|
Datasheet | Radial - 4 Leads | 60 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 5.1 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Long Life |
|
|
B32656A0225J000CAP FILM 2.2UF 5% 1KVDC RADIAL |
248 | - |
|
Datasheet | Radial | 2.2 µF | ±5% | 500V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
|
B32776G8306K000CAP FILM 30UF 800VDC RAD 4 LEAD |
2,676 | - |
|
Datasheet | Radial - 4 Leads | 30 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 5.1 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
