Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

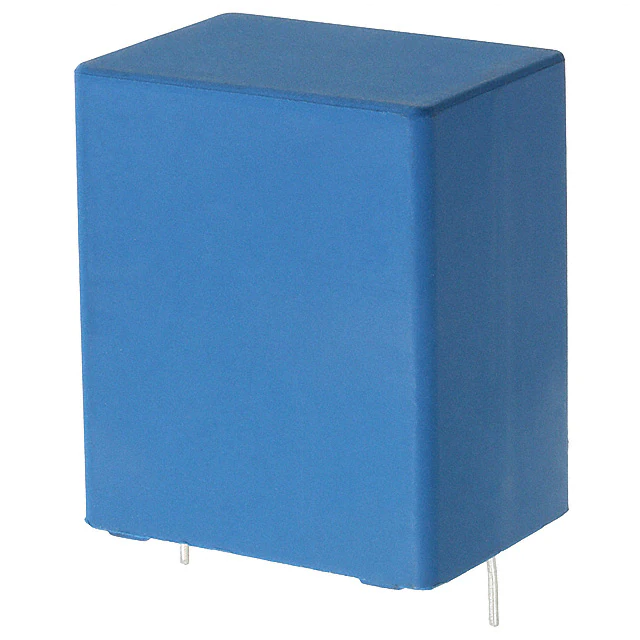

B32774D0705K000CAP FILM 7UF 10% 1.1KVDC RADIAL |
1,001 | - |
|
Datasheet | Radial | 7 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 8.1 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.437" (36.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | Long Life |
|
B32355C4205J019CAP FILM 2UF 5% 400VAC RADIAL |
898 | - |
|
Datasheet | Radial, Can | 2 µF | ±5% | 400V | - | Polypropylene (PP), Metallized | - | -25°C ~ 100°C | Chassis Mount | 0.984" Dia (25.00mm) | 2.126" (54.00mm) | Wire Leads | - | Motor Run | - | High Temperature |
|
|
B32355C4155J019CAP FILM 1.5UF 5% 400VAC RADIAL |
628 | - |
|
Datasheet | Radial, Can | 1.5 µF | ±5% | 400V | - | Polypropylene (PP), Metallized | - | -25°C ~ 100°C | Chassis Mount | 0.984" Dia (25.00mm) | 2.126" (54.00mm) | Wire Leads | - | Motor Run | - | High Temperature |
|
B32756G4505K000CAP FILM 5UF 10% 800VDC RADIAL |
211 | - |
|
Datasheet | Radial - 4 Leads | 5 µF | ±10% | 400V | 800V | Polypropylene (PP), Metallized | 5.3 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 0.866" W (42.00mm x 22.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | General Purpose | - | - |
|

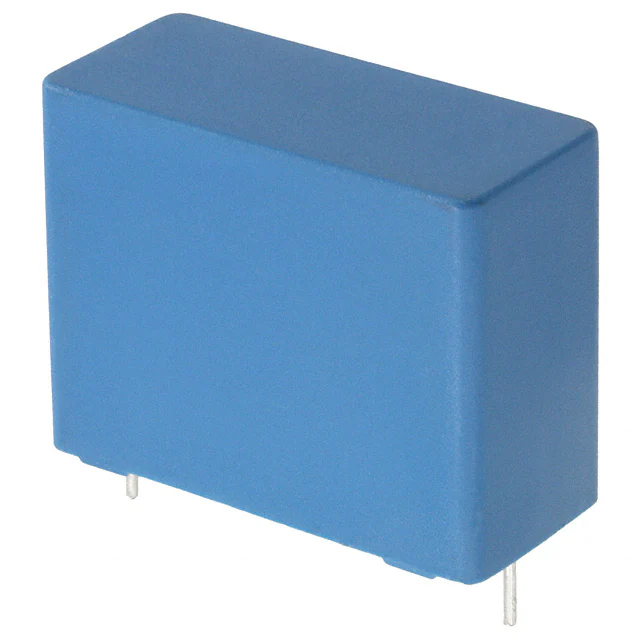

B32776P6106K000CAP FILM 10UF 10% 630VDC RADIAL |
3,183 | - |
|
Datasheet | Radial | 10 µF | ±10% | - | 630V | Polypropylene (PP), Metallized | 7 mOhms | -40°C ~ 125°C | Through Hole | 1.654" L x 0.709" W (42.00mm x 18.00mm) | 1.280" (32.50mm) | PC Pins | 1.476" (37.50mm) | Automotive | AEC-Q200 | - |
|
B32776Z5256K000FILM CAP MKP DC FILTERING - 600V |
353 | - |
|
Datasheet | Radial - 4 Leads | 25 µF | ±10% | - | 600V | Polypropylene (PP), Metallized | 7 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.555" (39.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|

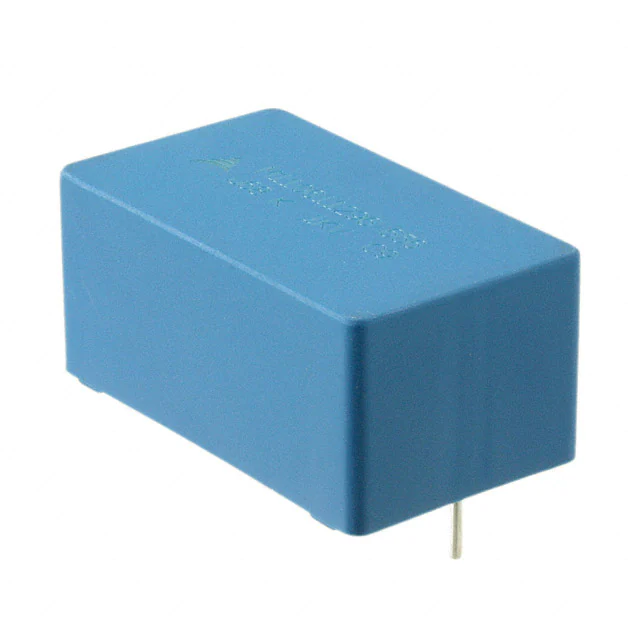

B32776T1275K000CAP FILM 2.7UF 10% 1.3KVDC RAD |
821 | - |
|
Datasheet | Radial | 2.7 µF | ±10% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 34.7 mOhms | -40°C ~ 105°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 0.591" (15.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
|
B32716H9156K000MKP DC FILTERING - 900VDC, 15UF |
1,254 | - |
|
Datasheet | Radial - 4 Leads | 15 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | 5.6 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.555" (39.50mm) | PC Pins | 1.476" (37.50mm) | Automotive | AEC-Q200 | Long Life |
|
|
B32776T8685K000CAP FILM 6.8UF 10% 800VDC RADIAL |
275 | - |
|
Datasheet | Radial | 6.8 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 22.1 mOhms | -40°C ~ 105°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 0.591" (15.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
B32656J1224K000CAP FILM 0.22UF 10% 1.6KVDC RAD |
794 | - |
|
Datasheet | Radial | 0.22 µF | ±10% | 600V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.654" L x 0.630" W (42.00mm x 16.00mm) | 1.122" (28.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | AEC-Q200 | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
