Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

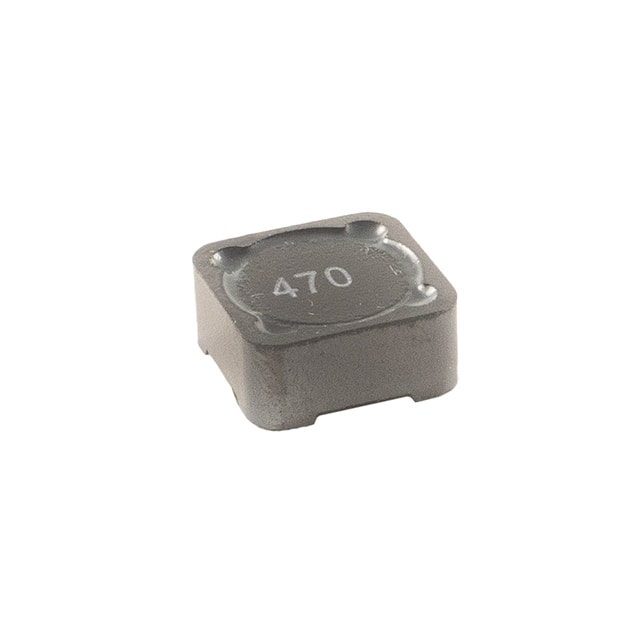

PCSDR125-470M-RC47UH +/-20% SMD INDUCTOR |
4,695 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 2.714 A | 3.23A | Shielded | 88.8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.484" L x 0.484" W (12.30mm x 12.30mm) | 0.236" (6.00mm) |
|
RDC20-102K-RC1000UH RADIAL DRUM CORE INDUCTOR |
1,728 | - |
|
Datasheet | RDC20 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | - | 1 mH | ±10% | 1 A | 3.1A | Unshielded | 818mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | Radial Lead | 0.825" Dia (20.96mm) | 0.840" (21.34mm) |
|
PCHC123H-4R7M-RC4.7H 20% POWER CHOKE HIGH CURREN |
2,630 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 10 A | 16A | Shielded | 15mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.146" (3.70mm) |
|
VTC210-101L-RC100H 15% VRT MOUNT TOROIDAL CHOK |
4,954 | - |
|
Datasheet | - | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 100 µH | ±15% | 2.4 A | - | Unshielded | 130mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.860" Dia x 0.450" L (21.84mm x 11.43mm) | - |
|
|
VTC210-151L-RC150H 15% VRT MOUNT TOROIDAL CHOK |
3,881 | - |
|
Datasheet | - | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 150 µH | ±15% | 3.4 A | - | Unshielded | 62mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.860" Dia x 0.450" L (21.84mm x 11.43mm) | - |
|
CC03-2N2K-RC2.2NH 10% CERAMIC CORE CHIP INDU |
3,545 | - |
|
Datasheet | - | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 2.2 nH | ±10% | - | - | Unshielded | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0603 | 0.071" L x 0.047" W (1.80mm x 1.20mm) | 0.047" (1.20mm) |
|
|
VTC210-561L-RC560H 15% VRT MOUNT TOROIDAL CHOK |
1,081 | - |
|
Datasheet | - | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 560 µH | ±15% | 1.5 A | - | Unshielded | 300mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.860" Dia x 0.450" L (21.84mm x 11.43mm) | - |
|
PCHC1265HP-220M22H 20% POWER CHOKE HIGH CURRENT |
1,771 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 9 A | 12A | Shielded | 37mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.256" (6.50mm) |
|
CC10-120NG-RC120NH 2% CERAMIC CORE CHIP INDUC |
4,613 | - |
|
Datasheet | - | Nonstandard | Tape & Box (TB) | Active | Drum Core, Wirewound | Ceramic | 120 nH | ±2% | 650 mA | - | Unshielded | 630mOhm Max | 60 @ 350MHz | 950MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.087" (2.20mm) |
|
VTCB2213-361360UH, TOROIDAL CHOKE |
4,754 | - |
|
Datasheet | - | Radial, Vertical (Open) | Box | Active | Toroidal | - | 360 µH | - | 2.5 A | - | Unshielded | 130mOhm Max | - | - | - | -40°C ~ 125°C | 40 kHz | - | Through Hole | - | 0.866" L x 0.512" W (22.00mm x 13.00mm) | 0.906" (23.00mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
