Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

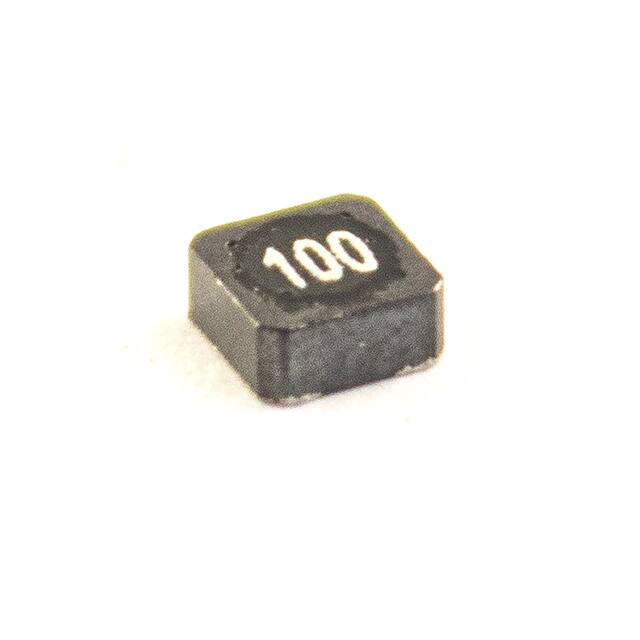

PCS3X15-100M10UH, SHIELDED POWER INDUCTOR |
4,930 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 750 mA | 650mA | Shielded | 440mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
VTC-4486470UH,VERTIVAL TOROIDAL CHOKE |
1,387 | - |
|
Datasheet | - | Vertical, 2 PC Pin | Tray | Active | Toroidal | - | 470 µH | ±20% | 1 A | - | Unshielded | 225mOhm Max | - | - | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | Radial | 0.748" Dia x 0.374" L (19.00mm x 9.50mm) | - |
.jpg "PCHC420Z2-1R0M-RC")
|
PCHC420Z2-1R0M-RC1.00UH, SMD HIGH CURRENT SHIELDE |
3,147 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 4.4 A | 7.5A | Shielded | 27mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
PCHC1265HP-5R6M5.6H 20% POWER CHOKE HIGH CURREN |
4,197 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | - | - | 5.6 µH | ±20% | 12.5 A | 23A | Shielded | 10mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
PCHC1265HP-101M100H 20% POWER CHOKE HIGH CURREN |
1,460 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | 4.2 A | 5.5A | Shielded | 165mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.256" (6.50mm) |
|
FWECY1390-220M22H 20% FLAT WIRE SMD POWER IN |
3,348 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 7.7 A | 6.8A | Shielded | 23.1mOhm Max | - | 20.3MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.492" W (13.00mm x 12.50mm) | 0.354" (9.00mm) |
|
|
FWECY1390-330M33H 20% FLAT WIRE SMD POWER IN |
2,915 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±20% | 7.7 A | 4.4A | Shielded | 23.1mOhm Max | - | 15.7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.492" W (13.00mm x 12.50mm) | 0.354" (9.00mm) |
|
|
FWECY1390-470M47H 20% FLAT WIRE SMD POWER IN |
3,533 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 7.7 A | 3A | Shielded | 23.1mOhm Max | - | 13.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.492" W (13.00mm x 12.50mm) | 0.354" (9.00mm) |
|
PCS104-100M-RC10H 20% POWER CHIP INDUCTOR |
3,918 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 4.4 A | - | Shielded | 35mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.157" (4.00mm) |
|
AHC50-101M-RC100uH, 20%, Axial Hash Choke |
3,994 | - |
|
Datasheet | - | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 2 A | - | Unshielded | 216mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Axial | 0.394" Dia x 1.380" L (10.00mm x 35.05mm) | - |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
