Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LSQBB160808T220MFIXED IND 22 UH 0.05A 1.3 OHM |
1,350 | - |
|
Datasheet | LSQB | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 50 mA | - | Unshielded | 1.3Ohm Max | - | 16MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
LLQMB201616T1R2JFIXED IND 1.2UH 370MA 410MOHM SM |
4,794 | - |
|
Datasheet | LLQM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.2 µH | ±5% | 370 mA | - | Unshielded | 410mOhm | 30 @ 7.96MHz | 180MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LLQMB201616TR82JFIXED IND 820NH 390MA 340MOHM SM |
3,763 | - |
|
Datasheet | LLQM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 820 nH | ±5% | 390 mA | - | Unshielded | 340mOhm | 30 @ 25.2MHz | 250MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LLQMB201616TR56JFIXED IND 560NH 410MA 290MOHM SM |
3,434 | - |
|
Datasheet | LLQM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 560 nH | ±5% | 410 mA | - | Unshielded | 290mOhm | 30 @ 25.2MHz | 300MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LLQMB201616TR47JFIXED IND 470NH 430MA 260MOHM SM |
4,881 | - |
|
Datasheet | LLQM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 470 nH | ±5% | 430 mA | - | Unshielded | 260mOhm | 30 @ 25.2MHz | 350MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|

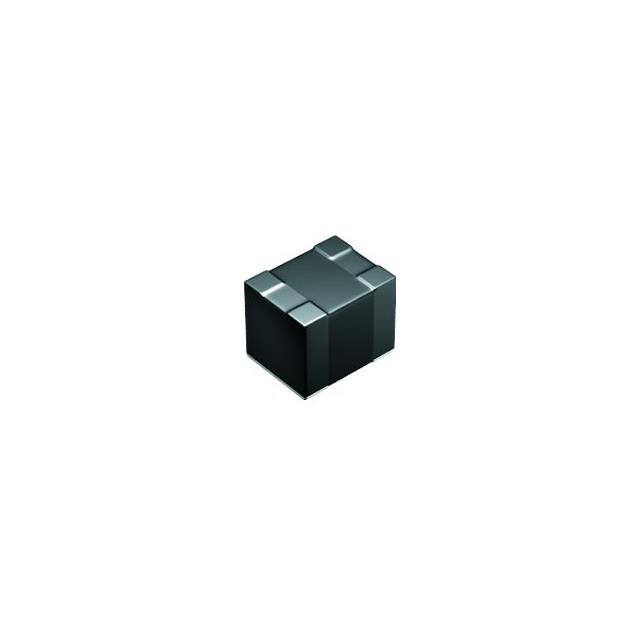

LSQMB201616TR18JFIXED IND 180NH 560MA 150MOHM SM |
1,102 | - |
|
Datasheet | LSQM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 180 nH | ±5% | 560 mA | - | Unshielded | 150mOhm | 30 @ 25.2MHz | 500MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LLQMB201616T100JFIXED IND 10UH 215MA 1.2 OHM SMD |
1,870 | - |
|
Datasheet | LLQM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±5% | 215 mA | - | Unshielded | 1.2Ohm | 25 @ 2.52MHz | 27MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LSQMB201616TR82JFIXED IND 820NH 390MA 340MOHM SM |
1,045 | - |
|
Datasheet | LSQM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 820 nH | ±5% | 390 mA | - | Unshielded | 340mOhm | 30 @ 25.2MHz | 250MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LLQMB201616T3R3JFIXED IND 3.3UH 290MA 680MOHM SM |
2,615 | - |
|
Datasheet | LLQM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±5% | 290 mA | - | Unshielded | 680mOhm | 30 @ 7.96MHz | 48MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LLQMB201616T221JFIXED IND 220UH 65MA 23.4OHM SMD |
4,942 | - |
|
Datasheet | LLQM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 220 µH | ±5% | 65 mA | - | Unshielded | 18Ohm | 15 @ 796kHz | 5.5MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
