Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LLQMB201616TR22JFIXED IND 220NH 520MA 200MOHM SM |
3,567 | - |
|
Datasheet | LLQM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 220 nH | ±5% | 520 mA | - | Unshielded | 200mOhm | 30 @ 25.2MHz | 450MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LLQMB201616T5R6JFIXED IND 5.6UH 255MA 880MOHM SM |
4,653 | - |
|
Datasheet | LLQM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 5.6 µH | ±5% | 255 mA | - | Unshielded | 880mOhm | 25 @ 7.96MHz | 36MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LLQMB201616T470JFIXED IND 47UH 115MA 4.1 OHM SMD |
3,563 | - |
|
Datasheet | LLQM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±5% | 115 mA | - | Unshielded | 4.1Ohm | 20 @ 2.52MHz | 13MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LLQMB201616T6R8JFIXED IND 6.8UH 240MA 970MOHM SM |
2,857 | - |
|
Datasheet | LLQM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±5% | 240 mA | - | Unshielded | 970mOhm | 25 @ 7.96MHz | 33MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LSQMB201616TR12JFIXED IND 120NH 610MA 130MOHM SM |
2,598 | - |
|
Datasheet | LSQM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 120 nH | ±5% | 610 mA | - | Unshielded | 130mOhm | 30 @ 25.2MHz | 600MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LLQMB201616TR18JFIXED IND 180NH 560MA 150MOHM SM |
3,420 | - |
|
Datasheet | LLQM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 180 nH | ±5% | 560 mA | - | Unshielded | 150mOhm | 30 @ 25.2MHz | 500MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|

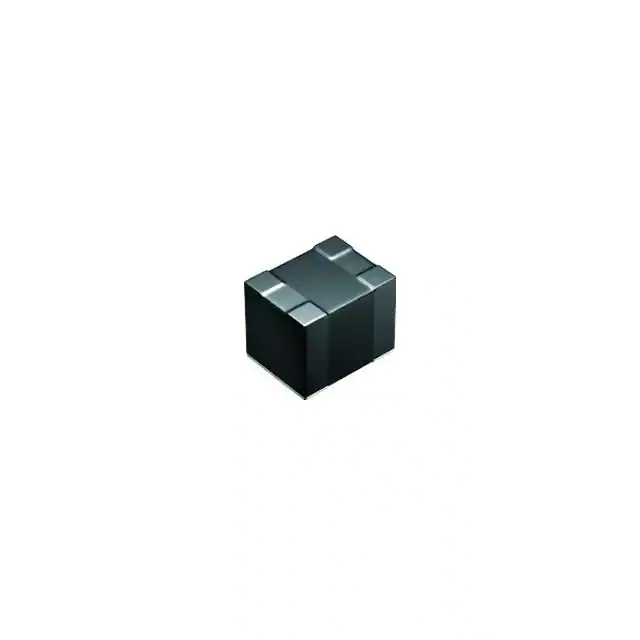

LLQMB201616T560JFIXED IND 56UH 95MA 5.9 OHM SMD |
4,304 | - |
|
Datasheet | LLQM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 56 µH | ±5% | 95 mA | - | Unshielded | 5.9Ohm | 20 @ 2.52MHz | 12MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LLQMB201616T180JFIXED IND 18UH 150MA 2.5 OHM SMD |
2,264 | - |
|
Datasheet | LLQM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 18 µH | ±5% | 150 mA | - | Unshielded | 2.5Ohm | 25 @ 2.52MHz | 18MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LSQMB201616T221JFIXED IND 220UH 65MA 23.4OHM SMD |
1,405 | - |
|
Datasheet | LSQM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 220 µH | ±5% | 65 mA | - | Unshielded | 18Ohm | 15 @ 796kHz | 5.5MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LSQMB201616TR27JFIXED IND 270NH 510MA 210MOHM SM |
3,234 | - |
|
Datasheet | LSQM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 270 nH | ±5% | 510 mA | - | Unshielded | 210mOhm | 30 @ 25.2MHz | 425MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
