Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LLQMB201616TR15JFIXED IND 150NH 570MA 150MOHM SM |
1,097 | - |
|
Datasheet | LLQM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 150 nH | ±5% | 570 mA | - | Unshielded | 150mOhm | 30 @ 25.2MHz | 550MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LLQMB201616T101JFIXED IND 100UH 80MA 8 OHM SMD |
4,325 | - |
|
Datasheet | LLQM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 100 µH | ±5% | 80 mA | - | Unshielded | 8Ohm | 15 @ 796kHz | 9MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LLQMB201616T1R5JFIXED IND 1.5UH 350MA 470MOHM SM |
1,338 | - |
|
Datasheet | LLQM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 µH | ±5% | 350 mA | - | Unshielded | 470mOhm | 30 @ 7.96MHz | 135MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|

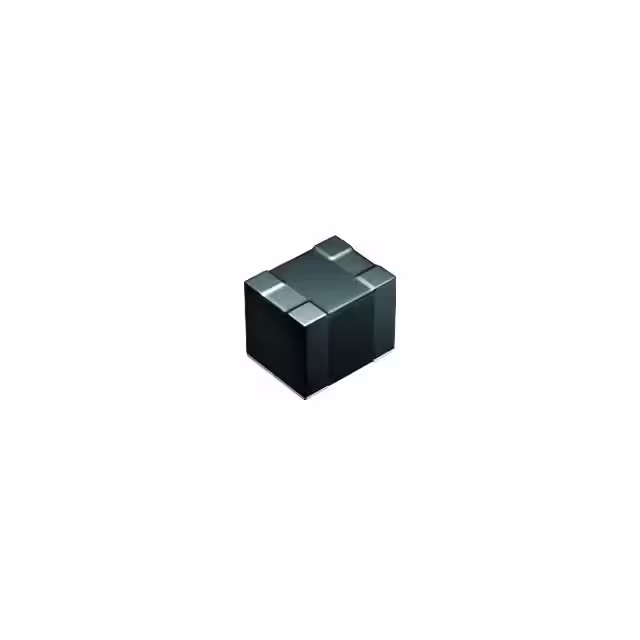

LLQMB201616T270JFIXED IND 27UH 130MA 3.2 OHM SMD |
4,712 | - |
|
Datasheet | LLQM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 27 µH | ±5% | 130 mA | - | Unshielded | 3.2Ohm | 25 @ 2.52MHz | 16MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LLQMB201616T1R0JFIXED IND 1UH 385MA 380 MOHM SMD |
2,550 | - |
|
Datasheet | LLQM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±5% | 385 mA | - | Unshielded | 380mOhm | 30 @ 7.96MHz | 220MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LLQMB201616T4R7JFIXED IND 4.7UH 270MA 1.014 OHM |
1,611 | - |
|
Datasheet | LLQM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±5% | 270 mA | - | Unshielded | 780mOhm | 30 @ 7.96MHz | 40MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LLQMB201616TR27JFIXED IND 270NH 510MA 210MOHM SM |
3,408 | - |
|
Datasheet | LLQM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 270 nH | ±5% | 510 mA | - | Unshielded | 210mOhm | 30 @ 25.2MHz | 425MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LLQMB201616TR12JFIXED IND 120NH 610MA 130MOHM SM |
3,205 | - |
|
Datasheet | LLQM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 120 nH | ±5% | 610 mA | - | Unshielded | 130mOhm | 30 @ 25.2MHz | 600MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LLQMB201616T220JFIXED IND 22UH 140MA 2.8 OHM SMD |
4,802 | - |
|
Datasheet | LLQM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±5% | 140 mA | - | Unshielded | 2.8Ohm | 25 @ 2.52MHz | 17MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LLQMB201616T120JFIXED IND 12UH 200MA 1.4 OHM SMD |
1,394 | - |
|
Datasheet | LLQM | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 12 µH | ±5% | 200 mA | - | Unshielded | 1.4Ohm | 25 @ 2.52MHz | 23MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
