Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
70F152AI-RCFIXED IND 15MH 47MA 113 OHM TH |
3,579 | - |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 15 mH | ±5% | 47 mA | - | Unshielded | 113Ohm Max | 50 @ 79kHz | 320kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.300" Dia x 0.500" L (7.62mm x 12.70mm) | - |
|
70F253AI-RCFIXED IND 2.5MH 57MA 45.6 OHM TH |
4,058 | - |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 2.5 mH | ±5% | 57 mA | - | Unshielded | 45.6Ohm Max | 48 @ 250kHz | 960kHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.260" Dia x 0.380" L (6.60mm x 9.65mm) | - |
|
70F563AI-RCFIXED IND 5.6MH 46MA 69.6 OHM TH |
4,553 | - |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 5.6 mH | ±5% | 46 mA | - | Unshielded | 69.6Ohm Max | 53 @ 250kHz | 680kHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.300" Dia x 0.380" L (7.62mm x 9.65mm) | - |
|
70F252AF-RCFIXED IND 25MH 46MA 115 OHM TH |
1,591 | - |
|
Datasheet | 70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 25 mH | ±5% | 46 mA | - | Unshielded | 115Ohm Max | 59 @ 79kHz | 250kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.340" Dia x 0.630" L (8.64mm x 16.00mm) | - |
|
4622-RCFIXED IND 10UH 1.5A 110 MOHM TH |
1,183 | - |
|
Datasheet | 4600 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 10 µH | ±5% | 1.5 A | - | Unshielded | 110mOhm Max | 69 @ 2.52MHz | 40MHz | - | -55°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | - |
|
|
4624-RCFIXED IND 15UH 1A 170 MOHM TH |
4,324 | - |
|
Datasheet | 4600 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 15 µH | ±5% | 1 A | - | Unshielded | 170mOhm Max | 62 @ 2.52MHz | 33MHz | - | -55°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | - |
|
|
4626-RCFIXED IND 24UH 800MA 340 MOHM TH |
1,071 | - |
|
Datasheet | 4600 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 24 µH | ±5% | 800 mA | - | Unshielded | 340mOhm Max | 65 @ 2.52MHz | 25MHz | - | -55°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | - |
|
|
4628-RCFIXED IND 39UH 600MA 650 MOHM TH |
3,385 | - |
|
Datasheet | 4600 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 39 µH | ±5% | 600 mA | - | Unshielded | 650mOhm Max | 70 @ 2.52MHz | 20MHz | - | -55°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | - |
|
|
4632-RCFIXED IND 100UH 400MA 3 OHM TH |
4,711 | - |
|
Datasheet | 4600 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 100 µH | ±5% | 400 mA | - | Unshielded | 3Ohm Max | 107 @ 790kHz | 12MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | - |
|

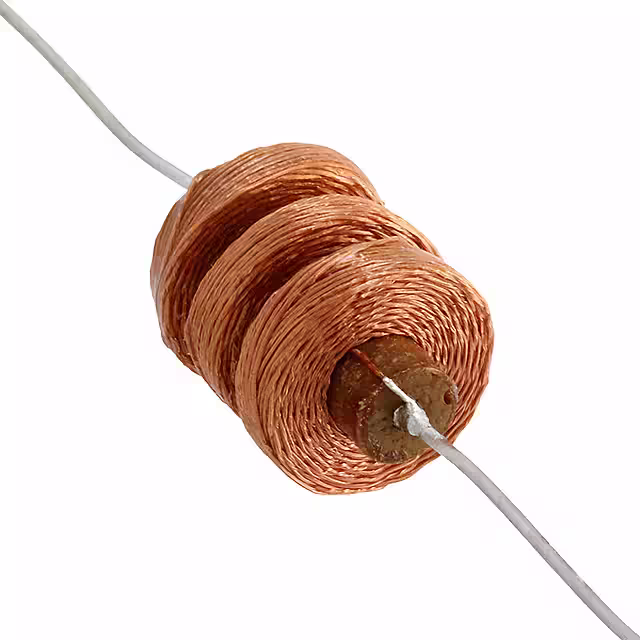

4652-RCFIXED IND 1MH 160MA 19 OHM TH |
4,400 | - |
|
Datasheet | 4600 | Axial | Bulk | Obsolete | Wirewound | Phenolic | 1 mH | ±5% | 160 mA | - | Unshielded | 19Ohm Max | 59 @ 252kHz | 3.7MHz | - | -55°C ~ 125°C | 252 kHz | - | Through Hole | - | 0.560" Dia x 0.875" L (14.22mm x 22.22mm) | - |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
