High Frequency (RF) Relays
Browse available High Frequency (RF) Relays components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Coil Type | Coil Current | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Type | Termination Style | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9002-05-00RELAY RF SPST-NO 500MA 5V |
14,815 |
1+：$6.89000 10+：$6.13800 25+：$5.86160 50+：$5.66080 100+：$5.46670 250+：$5.22000 500+：$5.04066 1000+：$4.86737 |
|
Datasheet | 9000 | Tube | Active | Non Latching | 14.3 mA | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 3.75 VDC | 0.4 VDC | 0.35 ms | 0.1 ms | - | Through Hole | PC Pin | -20°C ~ 85°C |
|
|
9002-05-01RELAY RF SPST-NO 500MA 5V |
9,254 | - |
|
Datasheet | 9000 | Tube | Active | Non Latching | 14.3 mA | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 3.75 VDC | 0.4 VDC | 0.35 ms | 0.1 ms | Diode | Through Hole | PC Pin | -20°C ~ 85°C |
|
9002-05-10RELAY RF SPST-NO 500MA 5V |
1,680 | - |
|
Datasheet | 9000 | Tube | Active | Non Latching | 14.3 mA | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 3.75 VDC | 0.4 VDC | 0.35 ms | 0.1 ms | Magnetic Shield | Through Hole | PC Pin | -20°C ~ 85°C |
|
9202-05-20RELAY RF SPST-NO 500MA 5V |
7,192 | - |
|
Datasheet | 9200 | Tube | Active | Non Latching | 33.3 mA | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 3.75 VDC | 0.4 VDC | 0.4 ms | 0.1 ms | Sealed - Hermetically | Surface Mount | J Lead | -20°C ~ 85°C |
|
9002-05-11RELAY RF SPST-NO 500MA 5V |
5,397 | - |
|
Datasheet | 9000 | Tube | Active | Non Latching | 14.3 mA | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 3.75 VDC | 0.4 VDC | 0.35 ms | 0.1 ms | Diode, Magnetic Shield | Through Hole | PC Pin | -20°C ~ 85°C |
|
9402-05-20RELAY RF SPST-NO 500MA 5V |
9,130 | - |
|
Datasheet | 9400 | Tube | Active | Non Latching | 25 mA | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 3.75 VDC | 0.4 VDC | 0.4 ms | 0.2 ms | - | Surface Mount | J Lead | -20°C ~ 85°C |
|
9814-05-20RELAY RF SPST-NO 250MA 5V |
26,084 | - |
|
Datasheet | 9800 | Tube | Active | Non Latching | 33.3 mA | 5VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 3.8 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | Magnetic Shield | Surface Mount | J Lead | -20°C ~ 85°C |
|
9814-05-00TRRELAY RF SPST-NO 250MA 5V |
8,706 | - |
|
Datasheet | 9800 | Tape & Reel (TR) | Active | Non Latching | 33.3 mA | 5VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 3.8 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | Magnetic Shield | Surface Mount | Gull Wing | -20°C ~ 85°C |
|
9290-05-00TRRELAY RF SPST-NO 500MA 5V |
1,578 |
1+：$10.29000 10+：$9.16600 25+：$8.75280 50+：$8.45260 100+：$8.16240 250+：$7.79388 500+：$7.52594 |
|
Datasheet | 9290 | Tape & Reel (TR) | Active | Non Latching | 31.3 mA | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 3.75 VDC | 0.4 VDC | 0.4 ms | 0.1 ms | Magnetic Shield | Surface Mount | Gull Wing | -20°C ~ 85°C |
|
CRF05-1ARELAY RF SPST-NO 500MA 5V |
6,781 | - |
|
Datasheet | CRF | Tape & Reel (TR) | Active | Non Latching | 33.3 mA | 5VDC | SPST-NO (1 Form A) | 500 mA | 170VAC, 170VDC - Max | 3.75 VDC | 0.75 VDC | 0.1 ms | 0.02 ms | - | Surface Mount | SMD (SMT) Tab | -40°C ~ 125°C |
|
|
9814-05-00RELAY RF SPST-NO 250MA 5V |
31,123 | - |
|
Datasheet | 9800 | Tube | Active | Non Latching | 33.3 mA | 5VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 3.8 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | Magnetic Shield | Surface Mount | Gull Wing | -20°C ~ 85°C |
|
|
9270-05-00TRRELAY RF SPST-NO 500MA 5V |
9,703 |
1+：$12.31000 10+：$10.96500 25+：$10.47080 50+：$10.11160 100+：$9.76440 250+：$9.32348 500+：$9.00290 |
|
Datasheet | 9270 | Tape & Reel (TR) | Active | Non Latching | 50 mA | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 2.5 VDC | 0.4 VDC | 0.4 ms | 0.1 ms | Magnetic Shield | Surface Mount | Gull Wing | -20°C ~ 125°C |
|

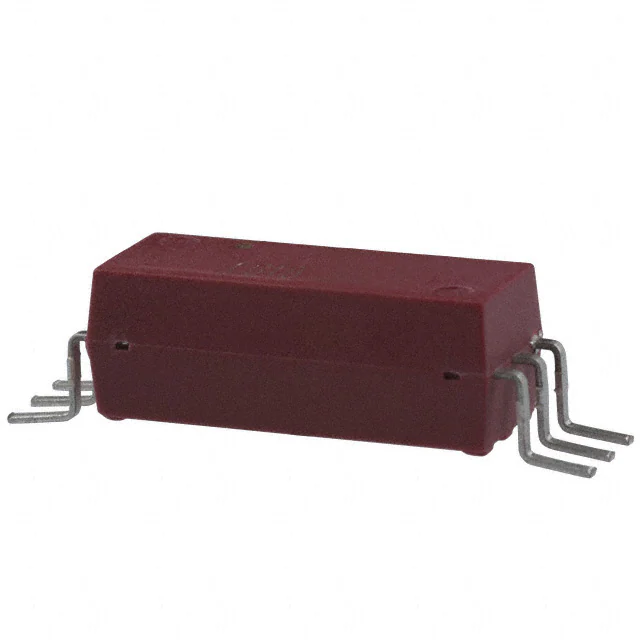

9402-05-00TRRELAY RF SPST-NO 500MA 5V |
4,015 | - |
|
Datasheet | 9400 | Tape & Reel (TR) | Active | Non Latching | 25 mA | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 3.75 VDC | 0.4 VDC | 0.4 ms | 0.2 ms | - | Surface Mount | Gull Wing | -20°C ~ 85°C |
|
ARS144HRELAY RF SPDT 500MA 4.5V |
0 |
1+：$38.00000 10+：$33.84400 25+：$32.31680 50+：$31.20660 100+：$30.13380 250+：$28.77096 |
|
Datasheet | ARS | Box | Active | Non Latching | 44.4 mA | 4.5VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 3.38 VDC | 0.45 VDC | 10 ms | 6 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
CRF05-1ASRELAY RF SPST-NO 500MA 5V |
4,127 | - |
|
Datasheet | CRF | Tape & Reel (TR) | Active | Non Latching | 33.3 mA | 5VDC | SPST-NO (1 Form A) | 500 mA | 170VAC, 170VDC - Max | 3.75 VDC | 0.75 VDC | 0.1 ms | 0.02 ms | - | Surface Mount | BGA | -40°C ~ 125°C |
|
ARS1412RELAY RF SPDT 500MA 12V |
993 | - |
|
Datasheet | ARS | Tube | Active | Non Latching | 16.7 mA | 12VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 9 VDC | 1.2 VDC | 10 ms | 6 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
1462051-1RELAY RF SPDT 2A 3V |
1,424 |
1+：$14.43000 10+：$12.85600 25+：$12.27720 50+：$11.85580 100+：$11.44870 |
|
Datasheet | HF3, AXICOM | Tape & Reel (TR) | Active | Non Latching | 46.7 mA | 3VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 2.25 VDC | 0.3 VDC | 5 ms | 4 ms | - | Surface Mount | Gull Wing | -55°C ~ 85°C |
|
G6K-2F-RF-S DC4.5RELAY RF DPDT 1A 4.5V |
4,218 | - |
|
Datasheet | G6K-RF | Tray | Active | Non Latching | 23.2 mA | 4.5VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 3.6 VDC | 0.45 VDC | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
G6K-2F-RF-TR03 DC5RELAY RF DPDT 1A 5V |
10,006 | - |
|
Datasheet | G6K-RF | Tape & Reel (TR) | Active | Non Latching | 21.1 mA | 5VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 4 VDC | 0.5 VDC | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6K-2F-RF-TR03 DC12RELAY RF DPDT 1A 12V |
1,518 | - |
|
Datasheet | G6K-RF | Tape & Reel (TR) | Active | Non Latching | 9.1 mA | 12VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 9.6 VDC | 1.2 VDC | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
High Frequency (RF) Relays FAQ
What High Frequency (RF) Relays components can I source from EGOO?
You can browse available High Frequency (RF) Relays product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete High Frequency (RF) Relays parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
