High Frequency (RF) Relays
Browse available High Frequency (RF) Relays components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Coil Type | Coil Current | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Type | Termination Style | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9814-03-20RELAY RF SPST-NO 250MA 3.3V |
327 |
1+：$12.76000 10+：$11.36800 25+：$10.85560 98+：$10.13367 196+：$9.78551 294+：$9.58738 588+：$9.25769 1078+：$8.97853 |
|
Datasheet | 9800 | Tube | Active | Non Latching | 47.1 mA | 3.3VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 2.5 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | Magnetic Shield | Surface Mount | J Lead | -20°C ~ 85°C |
|
9270-05-00RELAY RF SPST-NO 500MA 5V |
84 |
1+：$12.02000 10+：$10.71200 25+：$10.22920 50+：$9.87840 109+：$9.49789 327+：$8.98584 545+：$8.75708 1090+：$8.45584 |
|
Datasheet | 9270 | Bulk | Active | Non Latching | 50 mA | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 2.5 VDC | 0.4 VDC | 0.4 ms | 0.1 ms | Magnetic Shield | Surface Mount | Gull Wing | -20°C ~ 125°C |
|
9402-12-00RELAY RF SPST-NO 500MA 12V |
1,532 | - |
|
Datasheet | 9400 | Bulk | Active | Non Latching | 14.5 mA | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 9 VDC | 1 VDC | 0.4 ms | 0.2 ms | - | Surface Mount | Gull Wing | -20°C ~ 85°C |
|
9402-05-20TRRELAY RF SPST-NO 500MA 5V |
3,876 | - |
|
Datasheet | 9400 | Tape & Reel (TR) | Active | Non Latching | 25 mA | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 3.75 VDC | 0.4 VDC | 0.4 ms | 0.2 ms | - | Surface Mount | J Lead | -20°C ~ 85°C |
|
9814-03-00RELAY RF SPST-NO 250MA 3.3V |
3,526 | - |
|
Datasheet | 9800 | Tube | Active | Non Latching | 47.1 mA | 3.3VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 2.5 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | Magnetic Shield | Surface Mount | Gull Wing | -20°C ~ 85°C |
|
G6K-2F-RF-TR03 DC3RELAY RF DPDT 1A 3V |
2,139 | - |
|
Datasheet | G6K-RF | Tape & Reel (TR) | Active | Non Latching | 33 mA | 3VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 2.4 VDC | 0.3 VDC | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|

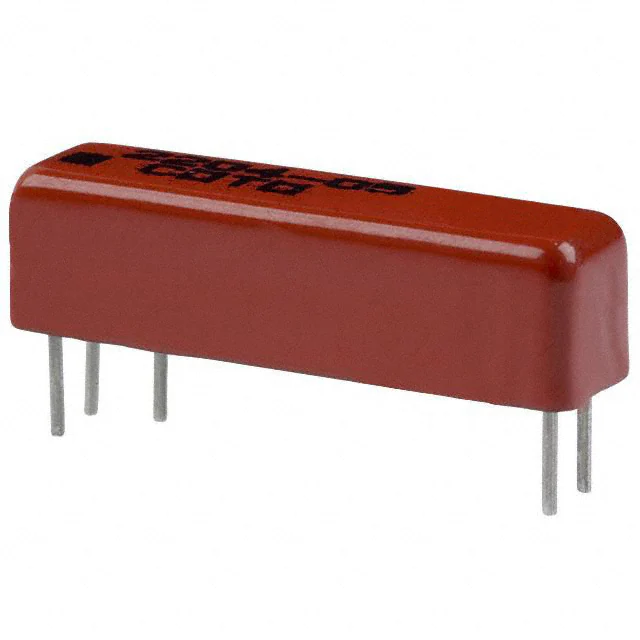

2200-2302RELAY RF SPST-NO 500MA 5V |
3,005 |
1+：$19.08000 10+：$16.99400 29+：$16.10724 58+：$15.55431 116+：$15.02000 261+：$14.41770 522+：$13.92170 |
|
Datasheet | 2200 | Tube | Active | Non Latching | 33.3 mA | 5VDC | SPST-NO (1 Form A) | 500 mA | 150VAC, 150VDC - Max | 3.6 VDC | 0.5 VDC | 0.55 ms | 0.1 ms | Sealed - Hermetically | Through Hole | PC Pin | -20°C ~ 85°C |
|
ARS1012RELAY RF SPDT 500MA 12V |
100 |
1+：$40.28000 10+：$35.87500 25+：$34.25600 50+：$33.07900 100+：$31.94170 250+：$30.49732 |
|
Datasheet | ARS | Box | Active | Non Latching | 16.7 mA | 12VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 9 VDC | 1.2 VDC | 10 ms | 6 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
G6K-2F-RF-S-TR03 DC4.5RELAY RF DPDT 1A 4.5V |
711 | - |
|
Datasheet | G6K-RF | Tape & Reel (TR) | Active | Non Latching | 23.2 mA | 4.5VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 3.6 VDC | 0.45 VDC | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
G6K-2P-RF DC4.5RELAY RF DPDT 1A 4.5V |
280 | - |
|
Datasheet | G6K-RF | Tube | Active | Non Latching | 23.2 mA | 4.5VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 3.6 VDC | 0.45 VDC | 3 ms | 3 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
ARS14Y12RELAY RF SPDT 500MA 12V |
298 | - |
|
Datasheet | ARS | Tube | Active | Non Latching | 16.7 mA | 12VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 9 VDC | 1.2 VDC | 10 ms | 6 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
ARS10Y12RELAY RF SPDT 500MA 12V |
1,055 | - |
|
Datasheet | ARS | Tube | Active | Non Latching | 16.7 mA | 12VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 9 VDC | 1.2 VDC | 10 ms | 6 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|

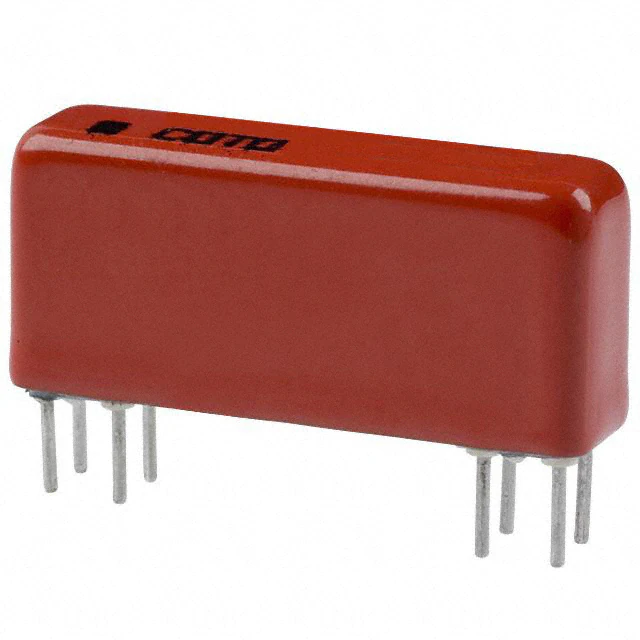

2332-05-020RELAY RF DPST-NO 500MA 5V |
267 | - |
|
Datasheet | 2300 | Tray | Active | Non Latching | 28.6 mA | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 3.8 VDC | 0.4 VDC | 0.5 ms | 0.15 ms | Sealed - Hermetically | Through Hole | PC Pin | -20°C ~ 85°C |
|
1462050-4RELAY RF SPDT 2A 12V |
455 |
1+：$19.32000 10+：$17.20600 25+：$16.42960 50+：$15.86580 100+：$15.32080 |
|
Datasheet | HF3, AXICOM | Tape & Reel (TR) | Active | Non Latching | 11.7 mA | 12VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 9 VDC | 1.2 VDC | 5 ms | 4 ms | - | Surface Mount | Gull Wing | -55°C ~ 85°C |
|
|
1462051-4RELAY RF SPDT 2A 12V |
2,196 |
1+：$19.32000 10+：$17.20600 25+：$16.42960 50+：$15.86580 100+：$15.32070 |
|
Datasheet | HF3, AXICOM | Tape & Reel (TR) | Active | Non Latching | 11.7 mA | 12VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 9 VDC | 1.2 VDC | 5 ms | 4 ms | - | Surface Mount | Gull Wing | -55°C ~ 85°C |
|
|
G6K-2F-RF-S DC24RELAY RF DPDT 1A 24V |
647 | - |
|
Datasheet | G6K-RF | Tray | Active | Non Latching | 4.6 mA | 24VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 19.2 VDC | 2.4 VDC | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
ARA220A12RELAY RF DPDT 1A 12V |
633 | - |
|
Datasheet | ARA | Tube | Active | Latching, Dual Coil | 11.7 mA | 12VDC | DPDT (2 Form C) | 1 A | 30VDC - Max | 9 VDC | - | 4 ms | 4 ms | - | Surface Mount | Gull Wing | -40°C ~ 85°C |
|
|
ARA220A05RELAY RF DPDT 1A 5V |
1,409 | - |
|
Datasheet | ARA | Tube | Active | Latching, Dual Coil | 28.1 mA | 5VDC | DPDT (2 Form C) | 1 A | 30VDC - Max | 3.75 VDC | - | 4 ms | 4 ms | - | Surface Mount | Gull Wing | -40°C ~ 85°C |
|
|
G6K-2F-RF-T-TR03 DC4.5RELAY RF DPDT 1A 4.5V |
4,982 | - |
|
Datasheet | G6K-RF | Tape & Reel (TR) | Active | Non Latching | 23.2 mA | 4.5VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 3.6 VDC | 0.45 VDC | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6K-2F-RF-TR03 DC4.5RELAY RF DPDT 1A 4.5V |
363 | - |
|
Datasheet | G6K-RF | Tape & Reel (TR) | Active | Non Latching | 23.2 mA | 4.5VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 3.6 VDC | 0.45 VDC | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
High Frequency (RF) Relays FAQ
What High Frequency (RF) Relays components can I source from EGOO?
You can browse available High Frequency (RF) Relays product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete High Frequency (RF) Relays parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
