High Frequency (RF) Relays
Browse available High Frequency (RF) Relays components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Coil Type | Coil Current | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Type | Termination Style | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2904-05-421RELAY RF SPST-NO 500MA 5V |
691 | - |
|
Datasheet | 2900 | Tube | Active | Non Latching | 13.5 mA | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 3.8 VDC | 0.4 VDC | 0.5 ms | 0.1 ms | - | Through Hole | PC Pin | -20°C ~ 85°C |
|
1462050-9RELAY RF SPDT 2A 12V |
400 | - |
|
Datasheet | HF3, AXICOM | Tape & Reel (TR) | Active | Latching, Single Coil | 5.8 mA | 12VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 9 VDC | - | 5 ms | 5 ms | - | Surface Mount | Gull Wing | -55°C ~ 85°C |
|
|
9853-05-20TRRELAY RF SPDT 100MA 5V |
965 | - |
|
Datasheet | 9853 | Tape & Reel (TR) | Active | Non Latching | 45.5 mA | 5VDC | SPDT (1 Form C) | 100 mA | 50VAC, 50VDC - Max | 3.8 VDC | 0.4 VDC | 1 ms | 1 ms | Magnetic Shield | Surface Mount | J Lead | -20°C ~ 85°C |
|
ARN10A12RELAY RF SPDT 12V |
507 | - |
|
Datasheet | ARN | Tray | Active | Non Latching | 26.7 mA | 12VDC | SPDT (1 Form C) | - | - | 9 VDC | 1.2 VDC | 5 ms | 5 ms | Sealed - Flux Protection | Surface Mount | Gull Wing | -40°C ~ 85°C |
|
|
IM03DGRRF Relay, 2 Form C, DPDT, Moment |
44,400 | - |
|
Datasheet | * | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IM26TSRF Relay, 2 Form C, DPDT, Moment |
4,557 | - |
|
Datasheet | * | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ARE10A4HZRELAY RF SPDT 500MA 4.5V |
133 | - |
|
Datasheet | ARE | Tape & Reel (TR) | Obsolete | Non Latching | 44.4 mA | 4.5VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 3.38 VDC | 0.45 VDC | 10 ms | 5 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
ARE10A03RELAY RF SPDT 500MA 3V |
264 | - |
|
Datasheet | ARE | Tube | Obsolete | Non Latching | 66.7 mA | 3VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 2.25 VDC | 0.3 VDC | 10 ms | 5 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
ARE10A24RELAY RF SPDT 500MA 24V |
426 | - |
|
Datasheet | ARE | Tube | Obsolete | Non Latching | 8.3 mA | 24VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 5 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|

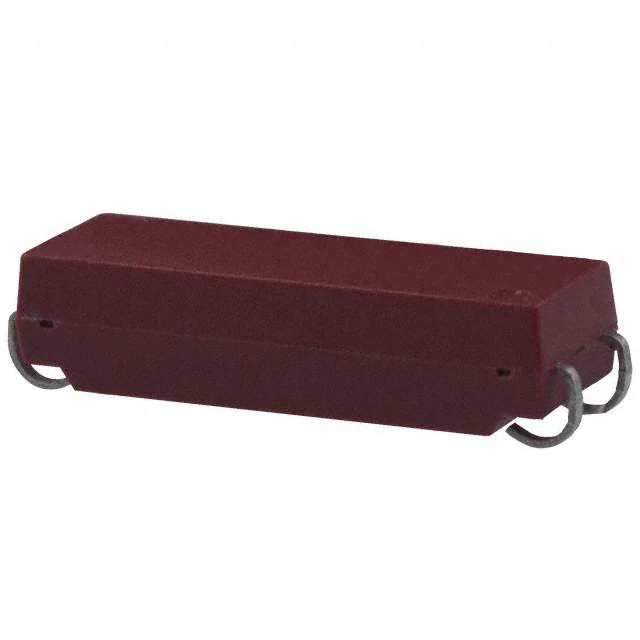

9202-05-20TRRELAY RF SPST-NO 500MA 5V |
1,415 | - |
|
Datasheet | 9200 | Tape & Reel (TR) | Active | Non Latching | 33.3 mA | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 3.75 VDC | 0.4 VDC | 0.4 ms | 0.1 ms | Sealed - Hermetically | Surface Mount | J Lead | -20°C ~ 85°C |
|
|
1462050-6RELAY RF SPDT 2A 3V |
2,563 | - |
|
Datasheet | HF3, AXICOM | Tape & Reel (TR) | Active | Latching, Single Coil | 23.4 mA | 3VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 2.25 VDC | - | 5 ms | 5 ms | - | Surface Mount | Gull Wing | -55°C ~ 85°C |
|
1-1462051-5RELAY RF SPDT 2A 24V |
3,653 | - |
|
Datasheet | HF3, AXICOM | Tape & Reel (TR) | Discontinued at Digi-Key | Latching, Dual Coil | 5.8 mA | 24VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 18 VDC | - | 5 ms | 5 ms | - | Surface Mount | Gull Wing | -55°C ~ 85°C |
|
G6K-2F-RF DC9RELAY RF DPDT 1A 9V |
300 | - |
|
Datasheet | G6K-RF | Tray | Active | Non Latching | 11.3 mA | 9VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 7.2 VDC | 0.9 VDC | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6K-2F-RF-T-TR03-DC5SIGNAL RELAYS - SMT TAPE & REEL |
9,300 | - |
|
Datasheet | G6K-RF | Box | Active | Non Latching | 21.1 mA | 5VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 4 VDC | 0.5 VDC | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
ARJ20A12ZRELAY RF DPDT 300MA 12V |
866 | - |
|
Datasheet | ARJ | Tape & Reel (TR) | Active | Non Latching | 16.7 mA | 12VDC | DPDT (2 Form C) | 300 mA | 30VDC - Max | 9 VDC | 1.2 VDC | 5 ms | 5 ms | - | Surface Mount | Gull Wing | -30°C ~ 70°C |
|
|
G6K 1387HRELAY RF DPDT 1A 5V T&R |
9,300 | - |
|
Datasheet | G6K-RF | Box | Active | Non Latching | 21.1 mA | 5VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 4 VDC | 0.5 VDC | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6K-2P-RF-DC24RF Relay, 2 Form C, DPDT, Moment |
269 | - |
|
Datasheet | G6K-RF | Bulk | Active | Non Latching | 4.6 mA | 24VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 19.2 VDC | 2.4 VDC | 3 ms | 3 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
G6K 1486FLOW SIGNAL RELAY |
269 | - |
|
Datasheet | G6K-RF | Bulk | Active | Non Latching | 4.6 mA | 24VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 19.2 VDC | 2.4 VDC | 3 ms | 3 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
G6K 1219GRELAY RF DPDT 1A 5V |
362 | - |
|
Datasheet | G6K-RF | Bulk | Active | Latching, Single Coil | 21.1 mA | 5VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 3.75 VDC | - | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6KU-2F-RF-DC5RELAY |
362 | - |
|
Datasheet | G6K-RF | - | Active | Latching, Single Coil | 21.1 mA | 5VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 3.75 VDC | - | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
High Frequency (RF) Relays FAQ
What High Frequency (RF) Relays components can I source from EGOO?
You can browse available High Frequency (RF) Relays product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete High Frequency (RF) Relays parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
