High Frequency (RF) Relays
Browse available High Frequency (RF) Relays components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Coil Type | Coil Current | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Type | Termination Style | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1617104-9RELAY RF DPDT 1A 5V |
4,401 | - |
|
Datasheet | MW6, CII | Bulk | Obsolete | Non Latching | 100 mA | 5VDC | DPDT (2 Form C) | 1 A | 28VDC - Nom | 3.6 VDC | - | 4 ms | 3 ms | - | Through Hole | PC Pin | -55°C ~ 85°C |
|
|
1-1617100-2RELAY RF DPDT 1A 18V |
4,468 | - |
|
Datasheet | MW4HP, CII | Bulk | Obsolete | Non Latching | 20 mA | 18VDC | DPDT (2 Form C) | 1 A | 28VDC - Nom | 10.5 VDC | 0.9 VDC | 2 ms | 1.5 ms | - | Through Hole | PC Pin | -65°C ~ 125°C |
|
|
1617107-2RELAY RF DPDT 1A 12V |
4,138 | - |
|
Datasheet | MW6S, CII | Bulk | Obsolete | Non Latching | 14 mA | 12VDC | DPDT (2 Form C) | 1 A | 28VDC - Nom | 9 VDC | - | 4 ms | 2 ms | - | Through Hole | PC Pin | -65°C ~ 125°C |
|
|
MW6HP-18PRELAY RF DPDT 1A 18V |
2,284 | - |
|
Datasheet | MW6HP, CII | Bulk | Active | Non Latching | 20 mA | 18VDC | DPDT (2 Form C) | 1 A | 28VDC - Nom | 10.5 VDC | 0.9 VDC | 2 ms | 1.5 ms | - | Through Hole | PC Pin | -65°C ~ 125°C |
|
|
MW6HP-5PRELAY RF DPDT 1A 5V |
2,006 | - |
|
Datasheet | MW6HP, CII | Bulk | Active | Non Latching | 100 mA | 5VDC | DPDT (2 Form C) | 1 A | 28VDC - Nom | 2.7 VDC | 0.22 VDC | 2 ms | 1.5 ms | - | Through Hole | PC Pin | -65°C ~ 125°C |
|
RK1-5VRELAY RF SPDT 10MA 5V |
2,178 | - |
|
Datasheet | RK | Tube | Obsolete | Non Latching | 40 mA | 5VDC | SPDT (1 Form C) | 10 mA | 30VDC - Max | 3.75 VDC | 0.5 VDC | 10 ms | 6 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
RK1-12VRELAY RF SPDT 10MA 12V |
3,875 | - |
|
Datasheet | RK | Tube | Obsolete | Non Latching | 16.7 mA | 12VDC | SPDT (1 Form C) | 10 mA | 30VDC - Max | 9 VDC | 1.2 VDC | 10 ms | 6 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
RK1-24VRELAY RF SPDT 10MA 24V |
3,843 | - |
|
Datasheet | RK | Tube | Obsolete | Non Latching | 8.3 mA | 24VDC | SPDT (1 Form C) | 10 mA | 30VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 6 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 70°C |
|
RP1-5VRELAY RF SPDT 100MA 5V |
2,587 | - |
|
Datasheet | RP | Tube | Obsolete | Non Latching | 28.1 mA | 5VDC | SPDT (1 Form C) | 100 mA | 30VDC - Nom | 3.75 VDC | 0.5 VDC | 3 ms | 2 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
RP1-12VRELAY RF SPDT 100MA 12V |
4,409 | - |
|
Datasheet | RP | Tube | Obsolete | Non Latching | 11.7 mA | 12VDC | SPDT (1 Form C) | 100 mA | 30VDC - Nom | 9 VDC | 1.2 VDC | 3 ms | 2 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
RP1-24VRELAY RF SPDT 100MA 24V |
1,285 | - |
|
Datasheet | RP | Tube | Obsolete | Non Latching | 11.3 mA | 24VDC | SPDT (1 Form C) | 100 mA | 30VDC - Nom | 18 VDC | 2.4 VDC | 3 ms | 2 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|

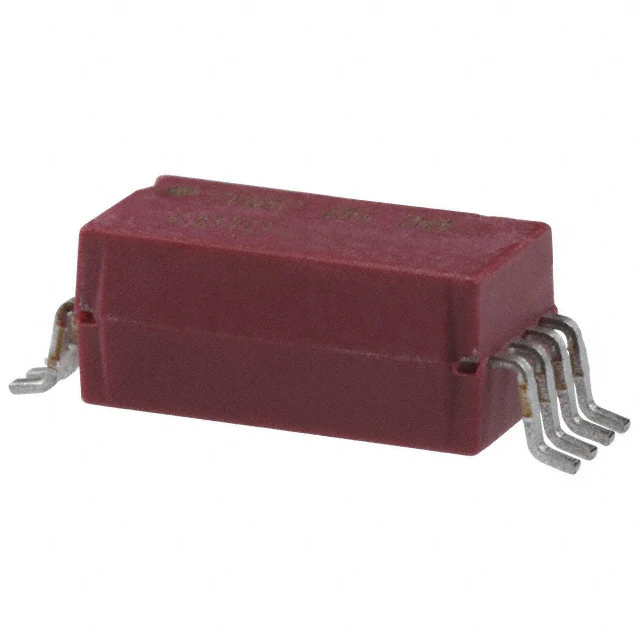

9802-05-00RELAY RF SPST-NO 250MA 5V |
4,198 | - |
|
Datasheet | 9800 | Bulk | Obsolete | Non Latching | 33.3 mA | 5VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 3.8 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | Magnetic Shield | Surface Mount | Gull Wing | -20°C ~ 85°C |
|

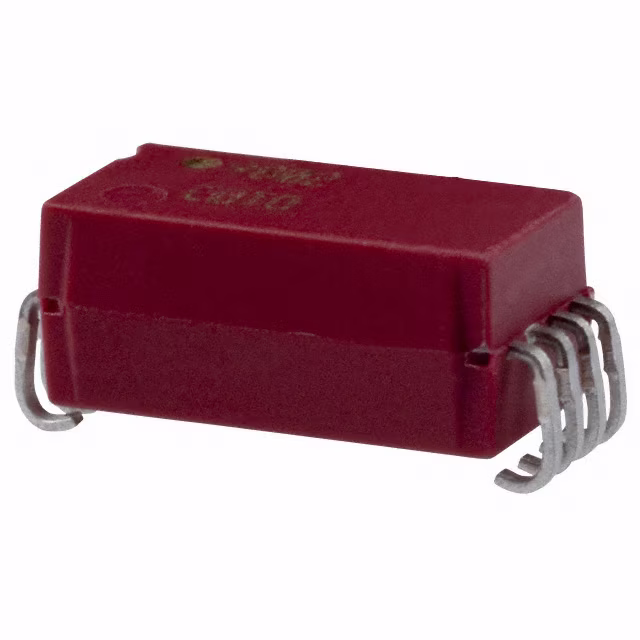

9802-05-20RELAY RF SPST-NO 250MA 5V |
4,136 | - |
|
Datasheet | 9800 | Tube | Obsolete | Non Latching | 33.3 mA | 5VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 3.8 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | Magnetic Shield | Surface Mount | J Lead | -20°C ~ 85°C |
|
9290-12-00RELAY RF SPST-NO 500MA 12V |
3,086 | - |
|
Datasheet | 9290 | Bulk | Active | Non Latching | 20 mA | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 9 VDC | 1 VDC | 0.4 ms | 0.1 ms | Magnetic Shield | Surface Mount | Gull Wing | -20°C ~ 85°C |
|

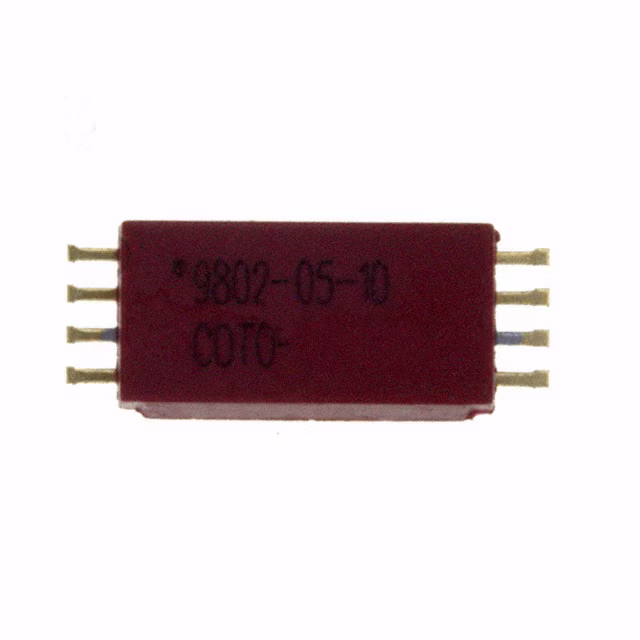

9802-05-10RELAY RF SPST-NO 250MA 5V |
2,021 | - |
|
Datasheet | 9800 | Tube | Obsolete | Non Latching | 33.3 mA | 5VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 3.8 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | Magnetic Shield | Surface Mount | Axial | -20°C ~ 85°C |
|
G6W-1F DC12RELAY RF SPDT 10MA 12V |
3,847 | - |
|
Datasheet | G6W | Bulk | Obsolete | Non Latching | 16.7 mA | 12VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 9.6 VDC | 1.2 VDC | 10 ms | 10 ms | Sealed - Fully | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6W-1F DC24RELAY RF SPDT 10MA 24V |
4,174 | - |
|
Datasheet | G6W | Bulk | Obsolete | Non Latching | 8.3 mA | 24VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 19.2 VDC | 2.4 VDC | 10 ms | 10 ms | Sealed - Fully | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6W-1F DC4.5RELAY RF SPDT 10MA 4.5V |
4,331 | - |
|
Datasheet | G6W | Bulk | Obsolete | Non Latching | 44.4 mA | 4.5VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 3.6 VDC | 0.45 VDC | 10 ms | 10 ms | Sealed - Fully | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
G6W-1P DC24RELAY RF SPDT 10MA 24V |
4,131 | - |
|
Datasheet | G6W | Bulk | Obsolete | Non Latching | 8.3 mA | 24VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 19.2 VDC | 2.4 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 70°C |
|
ARE1312RELAY RF SPDT 500MA 12V |
2,664 | - |
|
Datasheet | ARE | Bulk | Obsolete | Non Latching | 16.7 mA | 12VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 9 VDC | 1.2 VDC | 10 ms | 5 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
