High Frequency (RF) Relays
Browse available High Frequency (RF) Relays components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Coil Type | Coil Current | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Type | Termination Style | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ARE134HRELAY RF SPDT 500MA 4.5V |
3,926 | - |
|
Datasheet | ARE | Tube | Obsolete | Non Latching | 44.4 mA | 4.5VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 3.38 VDC | 0.45 VDC | 10 ms | 5 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
ARE13A12RELAY RF SPDT 500MA 12V |
2,639 | - |
|
Datasheet | ARE | Tube | Obsolete | Non Latching | 16.7 mA | 12VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 9 VDC | 1.2 VDC | 10 ms | 5 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
G6Z-1P DC12RELAY RF SPDT 10MA 12V |
4,420 | - |
|
Datasheet | G6Z | Tube | Obsolete | Non Latching | 16.7 mA | 12VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 9 VDC | 1.2 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
G6Z-1P DC24RELAY RF SPDT 10MA 24V |
1,180 | - |
|
Datasheet | G6Z | Tube | Obsolete | Non Latching | 8.3 mA | 24VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
G6Z-1PE DC5RELAY RF SPDT 10MA 5V |
3,641 | - |
|
Datasheet | G6Z | Tube | Obsolete | Non Latching | 40 mA | 5VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 3.75 VDC | 0.5 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
G6Z-1PE DC12RELAY RF SPDT 10MA 12V |
1,667 | - |
|
Datasheet | G6Z | Tube | Obsolete | Non Latching | 16.7 mA | 12VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 9 VDC | 1.2 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
G6Z-1PE DC24RELAY RF SPDT 10MA 24V |
4,413 | - |
|
Datasheet | G6Z | Tube | Obsolete | Non Latching | 8.3 mA | 24VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 70°C |
|
G6Z-1F DC5RELAY RF SPDT 10MA 5V |
4,065 | - |
|
Datasheet | G6Z | Tube | Obsolete | Non Latching | 40 mA | 5VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 3.75 VDC | 0.5 VDC | 10 ms | 10 ms | Sealed - Fully | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6Z-1F DC12RELAY RF SPDT 10MA 12V |
2,085 | - |
|
Datasheet | G6Z | Tube | Obsolete | Non Latching | 16.7 mA | 12VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 9 VDC | 1.2 VDC | 10 ms | 10 ms | Sealed - Fully | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6Z-1FE DC5RELAY RF SPDT 10MA 5V |
1,229 | - |
|
Datasheet | G6Z | Tube | Obsolete | Non Latching | 40 mA | 5VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 3.75 VDC | 0.5 VDC | 10 ms | 10 ms | Sealed - Fully | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6Z-1FE DC12RELAY RF SPDT 10MA 12V |
2,893 | - |
|
Datasheet | G6Z | Tube | Obsolete | Non Latching | 16.7 mA | 12VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 9 VDC | 1.2 VDC | 10 ms | 10 ms | Sealed - Fully | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6Z-1FE DC24RELAY RF SPDT 10MA 24V |
1,778 | - |
|
Datasheet | G6Z | Tube | Obsolete | Non Latching | 8.3 mA | 24VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 10 ms | Sealed - Fully | Surface Mount | Gull Wing | -40°C ~ 70°C |
|

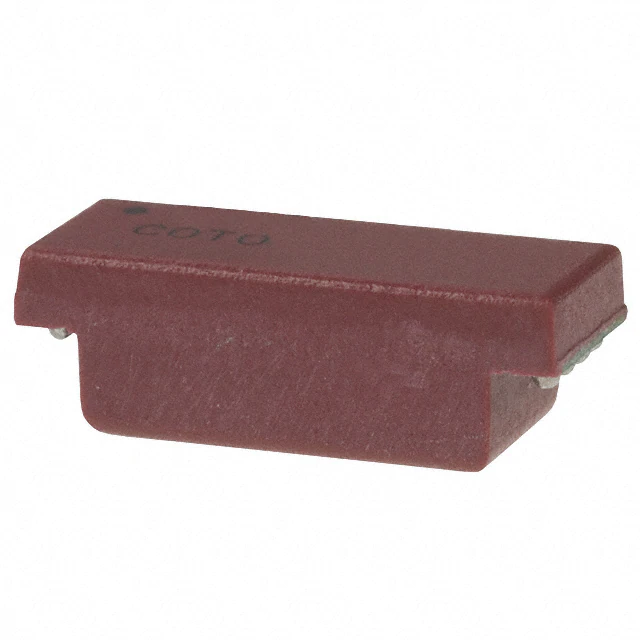

B10-05BRELAY RF SPST-NO 250MA 5V |
3,213 | - |
|
Datasheet | B10 | Tube | Obsolete | Non Latching | 33.3 mA | 5VDC | SPST-NO (1 Form A) | 250 mA | 125VAC, 125VDC - Max | 3.8 VDC | 0.4 VDC | 0.1 ms | 0.03 ms | - | Surface Mount | BGA | -20°C ~ 85°C |
|

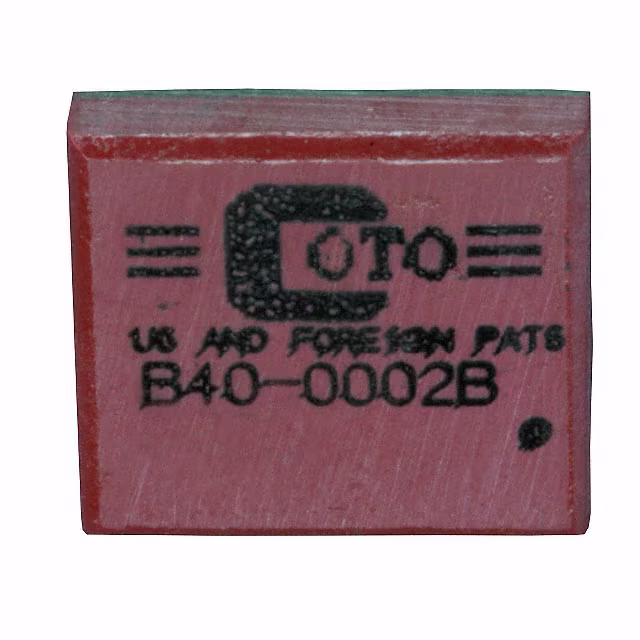

B40-0002BRELAY RF SPST-NO X 4 250MA 3.3V |
1,731 | - |
|
Datasheet | B40 | Tube | Obsolete | Non Latching | 60 mA | 3.3VDC | SPST-NO (1 Form A) x 4 | 250 mA | 125VAC, 125VDC - Max | 2.4 VDC | 0.4 VDC | 0.1 ms | 0.03 ms | - | Surface Mount | BGA | -20°C ~ 85°C |
|

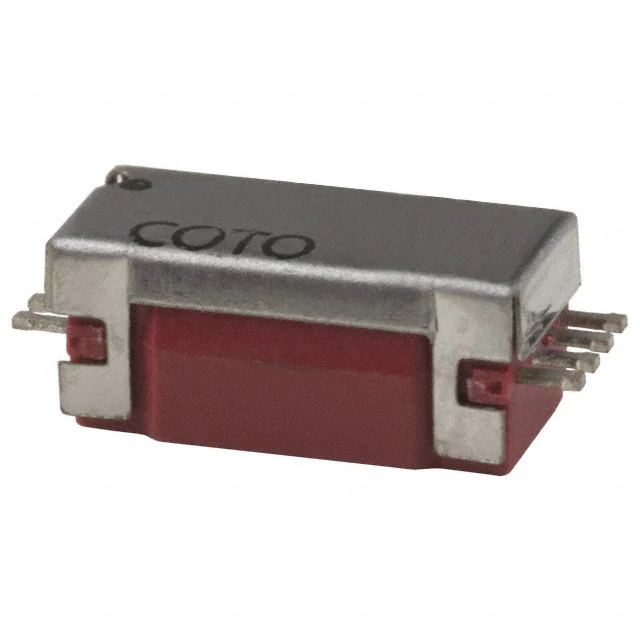

9814-03-10RELAY RF SPST-NO 250MA 3.3V |
2,017 | - |
|
Datasheet | 9800 | Tube | Obsolete | Non Latching | 47.1 mA | 3.3VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 2.5 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | Magnetic Shield | Surface Mount | Axial | -20°C ~ 85°C |
|
|
9814-05-10RELAY RF SPST-NO 250MA 5V |
3,892 | - |
|
Datasheet | 9800 | Tube | Obsolete | Non Latching | 33.3 mA | 5VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 3.8 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | Magnetic Shield | Surface Mount | Axial | -20°C ~ 85°C |
|
9852-03-00RELAY RF SPDT 100MA 3.3V |
4,411 | - |
|
Datasheet | 9800 | Tube | Obsolete | Non Latching | 47.1 mA | 3.3VDC | SPDT (1 Form C) | 100 mA | 30VAC, 30VDC - Max | 2.5 VDC | 0.4 VDC | 1 ms | 1 ms | Magnetic Shield | Surface Mount | Gull Wing | -20°C ~ 85°C |
|
9852-03-20RELAY RF SPDT 100MA 3.3V |
1,379 | - |
|
Datasheet | 9800 | Tube | Obsolete | Non Latching | 47.1 mA | 3.3VDC | SPDT (1 Form C) | 100 mA | 30VAC, 30VDC - Max | 2.5 VDC | 0.4 VDC | 1 ms | 1 ms | Magnetic Shield | Surface Mount | J Lead | -20°C ~ 85°C |
|
|
9852-05-10RELAY RF SPDT 100MA 5V |
4,663 | - |
|
Datasheet | 9800 | Tube | Obsolete | Non Latching | 45.5 mA | 5VDC | SPDT (1 Form C) | 100 mA | 30VAC, 30VDC - Max | 3.8 VDC | 0.4 VDC | 1 ms | 1 ms | Magnetic Shield | Surface Mount | Axial | -20°C ~ 85°C |
|
|
G6Z-1FE-A DC24RELAY RF SPDT 10MA 24V |
2,177 | - |
|
Datasheet | G6Z | Bulk | Obsolete | Non Latching | 8.3 mA | 24VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 10 ms | Sealed - Fully | Surface Mount | Gull Wing | -40°C ~ 70°C |
High Frequency (RF) Relays FAQ
What High Frequency (RF) Relays components can I source from EGOO?
You can browse available High Frequency (RF) Relays product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete High Frequency (RF) Relays parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
