Analog Switches, Multiplexers, Demultiplexers
Compare the current Analog Switches, Multiplexers, Demultiplexers Interface selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AS21P2TLRQIC SWITCH SPDT X 2 500MOHM 10QFN |
4,340 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 500mOhm | 100mOhm | 1.65V ~ 4.3V | - | 65ns, 40ns | 55MHz | 49pC | 5pF | 20nA | -72dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-QFN (1.8x1.4) |
|
STG3680QTRIC SWITCH SPDT X 2 800MOHM 16QFN |
4,793 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 800mOhm | 60mOhm | 1.65V ~ 4.3V | - | 50ns, 30ns | 50MHz | 35pC | 5pF | 10nA | -54dB @ 100kHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-QFN (3x3) |
|
M74HC4851YTTRIC MUX 8:1 195OHM 16TSSOP |
1,973 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 8:1 | 1 | 195Ohm | 3Ohm | 2V ~ 6V | - | - | - | - | 6.7pF, 22pF | 100nA | - | -55°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 16-TSSOP |
|

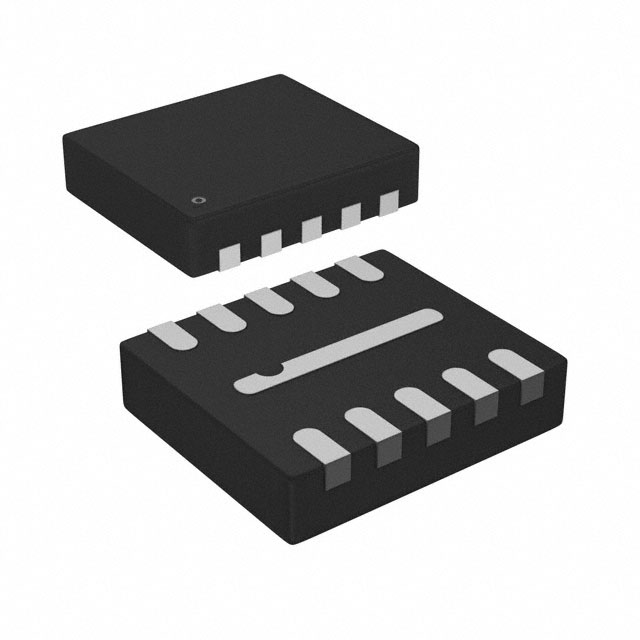

STG3684ADTRIC SWITCH SPDT X 2 500MOHM 10DFN |
1,352 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 500mOhm | 100mOhm | 1.65V ~ 4.3V | - | 55ns, 30ns | 55MHz | 49pC | 5pF | 20nA | -72dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-DFN (2.3x2) |
.jpg "ST3DV520QTR")
|
ST3DV520QTRIC SWITCH SPDT X 4 7.5OHM 56QFN |
4,064 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 4 | 7.5Ohm | 500mOhm | 3V ~ 3.6V | - | 9ns, 8.5ns | 450MHz | - | 6pF | 5µA | -45dB @ 250MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 56-QFN (11x5) |
|
STG4160BJRIC SW SPDTX1 500MOHM 8FLIPCHIP |
4,978 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 500mOhm | 10mOhm | 1.65V ~ 4.8V | - | 38ns, 38ns | 50MHz | 162pC | 30pF | 30nA | -67dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-FlipChip |
|
|
STG5223QTRIC SWITCH SPDT X 2 500MOHM 10QFN |
4,885 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 500mOhm | 100mOhm | 1.65V ~ 4.3V | - | 55ns, 30ns | 55MHz | 49pC | 40pF | 20nA | -72dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-QFN (1.8x1.4) |
|
STG1218IQTIC SWITCH SPDTX4 14OHM 20QFN |
3,907 | - |
|
Datasheet | - | Bulk | Active | SPDT - Open/Closed | 2:1 | 4 | 14Ohm | 300mOhm | 2.7V ~ 5.5V, 2.7V ~ 15.5V | - | 320ns, 195ns | 200MHz | 48pC | 25pF | 1.5µA | -66dB @ 1MHz | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 20-QFN (4x4) |
|
M74HCT4053RM13TRIC SWITCH SPDT X 3 120OHM 16SO |
1,194 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 3 | 120Ohm | 5Ohm | 4.5V ~ 5.5V | ±1V ~ 6V | 34ns, 31ns | 190MHz | - | 0.75pF, 5pF | 100nA | -50dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-SO |
|
|
STG6684QTRIC SWITCH SPDT X 2 550MOHM 10QFN |
3,332 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 550mOhm | 10mOhm | 1.65V ~ 4.3V | - | 55ns, 30ns | 65MHz | 49pC | 85pF | 100nA | -85dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-QFN (1.8x1.4) |
Analog Switches, Multiplexers, Demultiplexers FAQ
How can I narrow the current Analog Switches, Multiplexers, Demultiplexers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Analog Switches, Multiplexers, Demultiplexers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
