Magnetic Wire
Compare the current Magnetic Wire Magnetics - Transformer, Inductor Components selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Wire Gauge | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Length - Approximate | Ratings | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
32H240#32 HVY MAG WIRE, 240C NAT 5LB |
4,385 | - |
|
Datasheet | - | Box | Active | 32 AWG | Copper, Annealed Bare | Polyimide | 0.010" (0.25mm) | 396.0' (120.7m) | MW 16-C | 5.0 lbs (2.3kg) |
|
260/38LITZ2.5#14 LITZ WIRE, 5/52/38STR, 2.5LB |
4,306 | - |
|
Datasheet | - | Box | Active | 14 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.090" (2.29mm) | 201.0' (61.3m) | MW 80-C | 2.5 lbs (1.1 kg) |
|
37HNSP#37 HVY MAG WIRE, 155C NAT 1LB |
3,896 | - |
|
Datasheet | - | Box | Active | 37 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.006" (0.16mm) | 15290.0' (4660m) | MW 79-C | 1.0 lbs (453.6 g) |
|
41HNSP#41 HVY MAG WIRE, 155C RED 1LB |
2,643 | - |
|
Datasheet | - | Box | Active | 41 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.004" (0.11mm) | 39340.0' (11990m) | MW 79-C | 1.0 lbs (453.6 g) |
|
17HNS2.5#17 HVY MAG WIRE, 155C RED 2.5LB |
4,528 | - |
|
Datasheet | - | Box | Active | 17 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.048" (1.22mm) | 394.0' (120m) | MW 80-C | 2.5 lbs (1.1 kg) |
|
35HNS2.5#35 HVY MAG WIRE, 155C RED 2.5LB |
1,712 | - |
|
Datasheet | - | Box | Active | 35 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.007" (0.18mm) | 24728.0' (7537m) | MW 79-C | 2.5 lbs (1.1 kg) |
|
39HNS2.5#39 HVY MAG WIRE, 155C RED 2.5LB |
1,974 | - |
|
Datasheet | - | Box | Active | 39 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.004" (0.11mm) | 63175.0' (19255.7m) | MW 79-C | 2.5 lbs (1.1 kg) |
|
23HNS#23 HVY MAG WIRE, 155C RED 5LB |
1,184 | - |
|
Datasheet | - | Box | Active | 23 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.025" (0.63mm) | 3125.0' (952m) | MW 80-C | 5.0 lbs (2.3kg) |
|

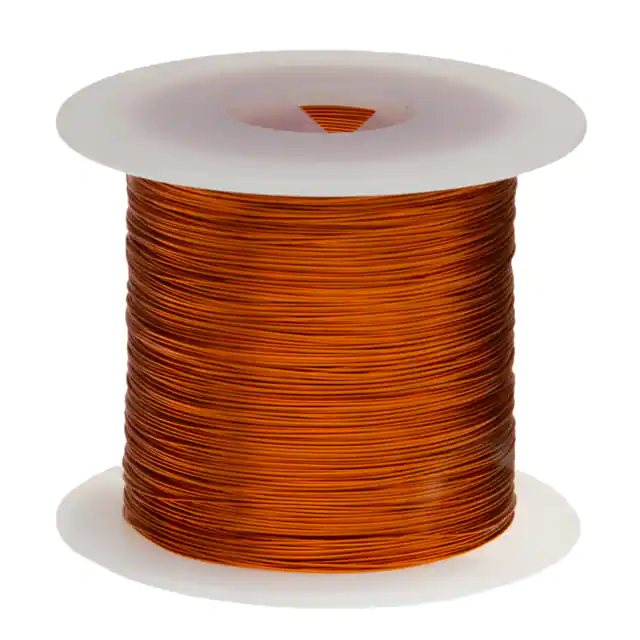

14H2402.5#14 HVY MAG WIRE, 240C NAT 2.5LB |
3,737 | - |
|
Datasheet | - | Box | Active | 14 AWG | Copper, Annealed Bare | Polyimide | 0.068" (1.73mm) | 198.0' (60.4m) | MW 16-C | 2.5 lbs (1.1 kg) |
|
37HNS#37 HVY MAG WIRE, 155C NAT 5LB |
3,764 | - |
|
Datasheet | - | Box | Active | 37 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.006" (0.16mm) | 76450.0' (23302m) | MW 79-C | 5.0 lbs (2.3kg) |
Magnetic Wire FAQ
How can I narrow the current Magnetic Wire selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Magnetic Wire parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
