Magnetic Wire
Compare the current Magnetic Wire Magnetics - Transformer, Inductor Components selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Wire Gauge | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Length - Approximate | Ratings | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
22H200P.12522H200P.125 MAGNET WIRE, ENAMELE |
4,453 | - |
|
Datasheet | - | Bag | Active | 22 AWG | Copper, Annealed Bare | Polyester | - | 62.0' (19m) | MW 35-C | 0.13 lbs (56.7 g) |
|
24H200P.12524H200P.125 MAGNET WIRE, ENAMELE |
2,157 | - |
|
Datasheet | - | Bag | Active | 24 AWG | Copper, Annealed Bare | Polyester | - | 98.0' (30m) | MW 35-C | 0.13 lbs (56.7 g) |
|
22H200P.2522H200P.25 22 AWG MAGNET WIRE, E |
4,101 | - |
|
Datasheet | - | Bag | Active | 22 AWG | Copper, Annealed Bare | Polyester | - | 125.0' (38m) | MW 35-C | 0.25 lbs (113.4 g) |
|
26H200P.125MAGNET WIRE, ENAMELED COPPER WIR |
3,131 | - |
|
Datasheet | - | Bag | Active | 26 AWG | Copper, Annealed Bare | Polyester | - | 157.0' (48m) | MW 35-C | 0.13 lbs (56.7 g) |
|
24H200P.2524H200P.25 24 AWG MAGNET WIRE, E |
2,658 | - |
|
Datasheet | - | Bag | Active | 24 AWG | Copper, Annealed Bare | Polyester | - | 197.0' (60m) | MW 35-C | 0.25 lbs (113.4 g) |
|

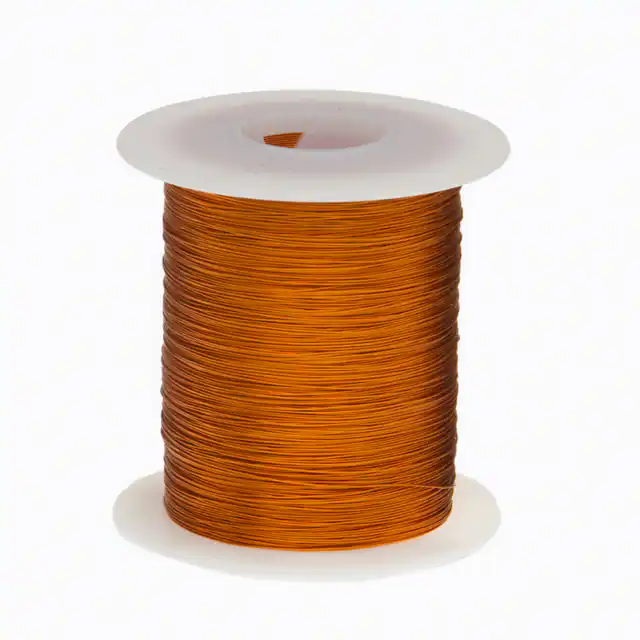

28H200P.12528H200P.125 MAGNET WIRE, ENAMELE |
1,242 | - |
|
Datasheet | - | Bag | Active | 28 AWG | Copper, Annealed Bare | Polyester | - | 248.0' (76m) | MW 35-C | 0.13 lbs (56.7 g) |
|
30H200P.12530H200P.125 MAGNET WIRE, ENAMELE |
3,585 | - |
|
Datasheet | - | Bag | Active | 30 AWG | Copper, Annealed Bare | Polyester with Polyamideimide (PAI) Overcoat | - | 391.0' (119m) | MW 35-C | 0.13 lbs (56.7 g) |
|

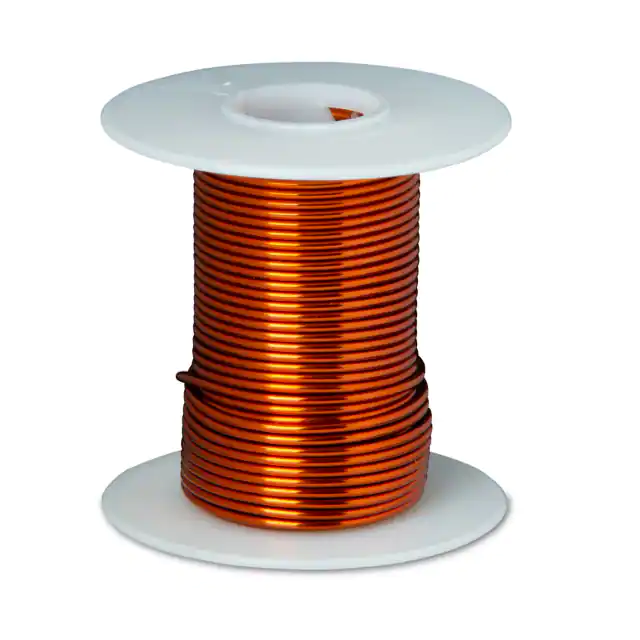

18H200P.2518H200P.25 MAGNET WIRE, ENAMELED |
1,543 | - |
|
Datasheet | - | Bag | Active | 18 AWG | Copper, Annealed Bare | Polyester | - | 50.0' (15m) | MW 35-C | 0.25 lbs (113.4 g) |
|
26H200P.2526H200P.25 MAGNET WIRE, ENAMELED |
3,558 | - |
|
Datasheet | - | Bag | Active | 26 AWG | Copper, Annealed Bare | Polyester | - | 314.0' (96m) | MW 35-C | 0.25 lbs (113.4 g) |
|
25SNSP.12525SNSP.125 MAGNET WIRE, ENAMELED |
2,841 | - |
|
Datasheet | - | Bag | Active | 25 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 127.0' (39m) | MW 80-C | 0.13 lbs (56.7 g) |
Magnetic Wire FAQ
How can I narrow the current Magnetic Wire selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Magnetic Wire parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
