Magnetic Wire
Compare the current Magnetic Wire Magnetics - Transformer, Inductor Components selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Wire Gauge | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Length - Approximate | Ratings | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
34HNS#34 HVY MAG WIRE, 155C RED 5LB |
2,608 | - |
|
Datasheet | - | Box | Active | 34 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.008" (0.20mm) | 39185.0' (11943m) | MW 79-C | 5.0 lbs (2.3kg) |
|
24H2402.5#24 HVY MAG WIRE, 240C NAT 2.5LB |
4,750 | - |
|
Datasheet | - | Box | Active | 24 AWG | Copper, Annealed Bare | Polyimide | 0.023" (0.58mm) | 198.0' (60.4m) | MW 16-C | 2.5 lbs (1.1 kg) |
|
|
39HNS#39 HVY MAG WIRE, 155C RED 5LB |
2,928 | - |
|
Datasheet | - | Box | Active | 39 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.004" (0.11mm) | 126350.0' (38511.5m) | MW 79-C | 5.0 lbs (2.3kg) |
|
|
40HNS#40 HVY MAG WIRE, 155C RED 5LB |
3,388 | - |
|
Datasheet | - | Box | Active | 40 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.004" (0.11mm) | 159700.0' (48677m) | MW 79-C | 5.0 lbs (2.3kg) |
|
41HNS#41 HVY MAG WIRE, 155C RED 5LB |
3,155 | - |
|
Datasheet | - | Box | Active | 41 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.004" (0.11mm) | 196700.0' (59954m) | MW 79-C | 5.0 lbs (2.3kg) |
|
|
30H2402.5#30 HVY MAG WIRE, 240C NAT 2.5LB |
4,614 | - |
|
Datasheet | - | Box | Active | 30 AWG | Copper, Annealed Bare | Polyimide | 0.012" (0.30mm) | 198.0' (60.4m) | MW 16-C | 2.5 lbs (1.1 kg) |
|

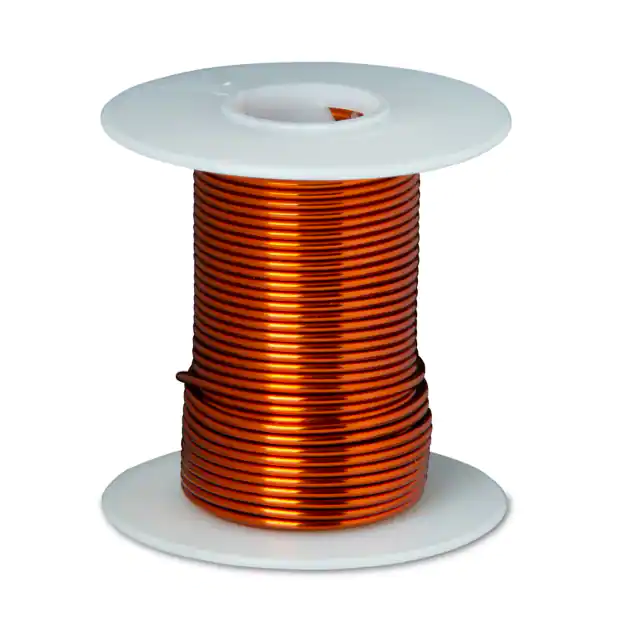

14H200P.12514H200P.125 MAGNET WIRE, ENAMELE |
1,748 | - |
|
Datasheet | - | Bag | Active | 14 AWG | Copper, Annealed Bare | Polyester | - | 9.0' (2.7m) | MW 35-C | 0.13 lbs (56.7 g) |
|
16H200P.12516H200P.125 MAGNET WIRE, ENAMELE |
1,624 | - |
|
Datasheet | - | Bag | Active | 16 AWG | Copper, Annealed Bare | Polyester | - | 16.0' (4.9m) | MW 35-C | 0.13 lbs (56.7 g) |
|
20H200P.12520H200P.125 MAGNET WIRE, ENAMELE |
2,580 | - |
|
Datasheet | - | Bag | Active | 20 AWG | Copper, Annealed Bare | Polyester | - | 39.0' (12m) | MW 35-C | 0.13 lbs (56.7 g) |
|
18H200P.125MAGNET WIRE, ENAMELED COPPER WIR |
3,358 | - |
|
Datasheet | - | Bag | Active | 18 AWG | Copper, Annealed Bare | Polyester | - | 25.0' (7.6m) | MW 35-C | 0.13 lbs (56.7 g) |
Magnetic Wire FAQ
How can I narrow the current Magnetic Wire selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Magnetic Wire parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
