Magnetic Wire
Compare the current Magnetic Wire Magnetics - Transformer, Inductor Components selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Wire Gauge | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Length - Approximate | Ratings | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

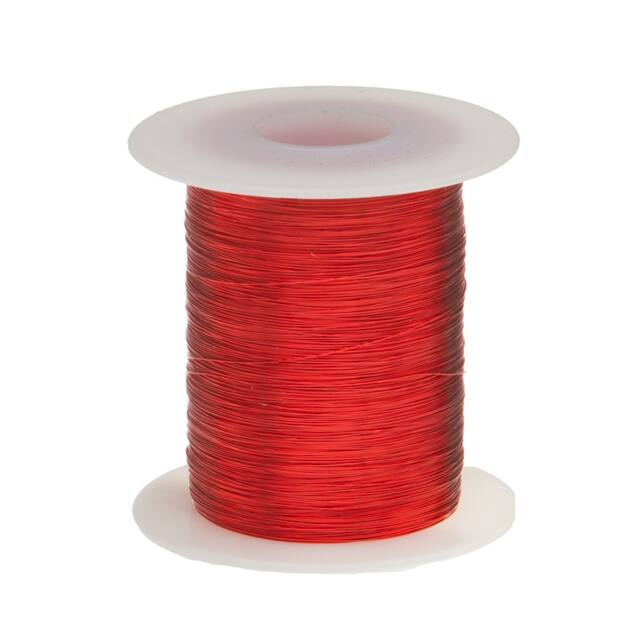

29HNSP.25#29 HVY MAG WIRE, 155C RED 4OZ |
1,686 | - |
|
Datasheet | - | Box | Active | 29 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.013" (0.33mm) | 616.0' (188m) | MW 80-C | 0.25 lbs (113.4 g) |
|
38S200P.2538S200P.25 MAGNET WIRE, ENAMELED |
1,194 | - |
|
Datasheet | - | Bag | Active | 38 AWG | Copper, Annealed Bare | Polyester | - | 4988.0' (1520m) | MW 35-C | 0.25 lbs (113.4 g) |
|
16HNSP.25MAGNET WIRE, HEAVY BUILD ENAMELE |
4,450 | - |
|
Datasheet | - | Bag | Active | 16 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 31.0' (9.4m) | MW 80-C | 0.25 lbs (113.4 g) |
|
26H200P.526H200P.5 26 AWG MAGNET WIRE, EN |
1,964 | - |
|
Datasheet | - | Bag | Active | 26 AWG | Copper, Annealed Bare | Polyester | - | 629.0' (192m) | MW 35-C | 0.5 lbs (226.8 g) |
|
18H200P.518H200P.5 18 AWG MAGNET WIRE, EN |
4,925 | - |
|
Datasheet | - | Bag | Active | 18 AWG | Copper, Annealed Bare | Polyester | - | 100.0' (30m) | MW 35-C | 0.5 lbs (226.8 g) |
|

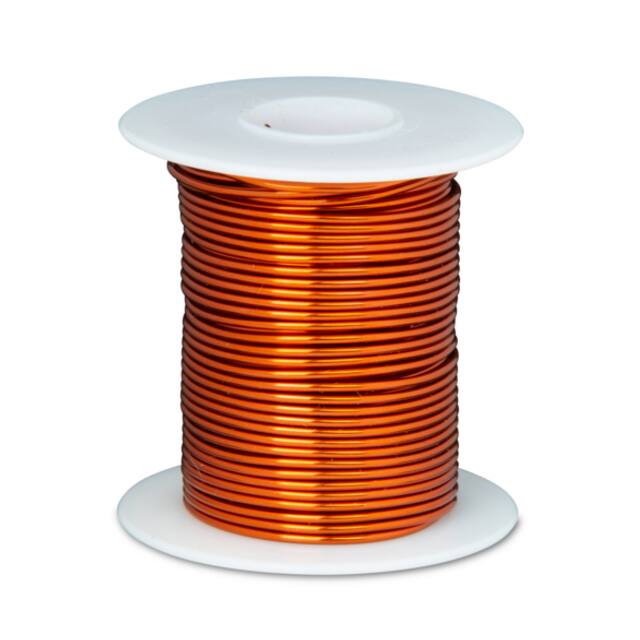

16H200P.516H200P.5 MAGNET WIRE, ENAMELED |
2,038 | - |
|
Datasheet | - | Bag | Active | 16 AWG | Copper, Annealed Bare | Polyester | - | 62.0' (19m) | MW 35-C | 0.5 lbs (226.8 g) |
|
31HNSP.25#31 HVY MAG WIRE, 155C RED 4OZ |
2,028 | - |
|
Datasheet | - | Box | Active | 31 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.010" (0.25mm) | 987.0' (301m) | MW 80-C | 0.25 lbs (113.4 g) |
|

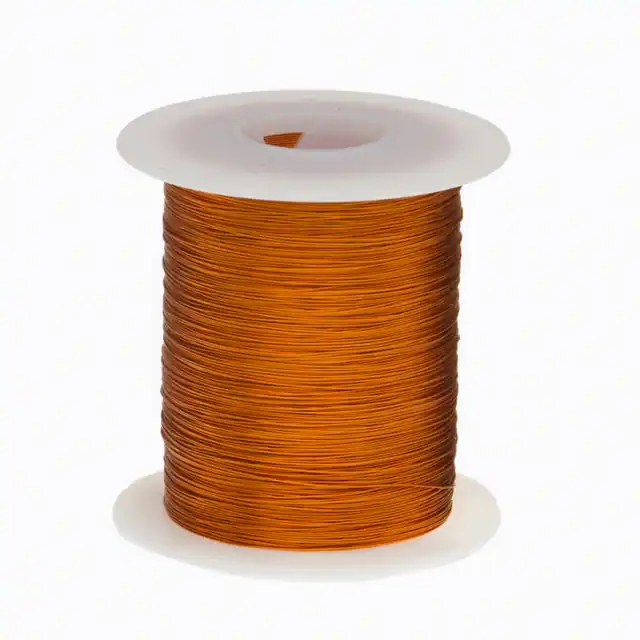

22H200P.522H200P.5 MAGNET WIRE, ENAMELED |
2,725 | - |
|
Datasheet | - | Bag | Active | 22 AWG | Copper, Annealed Bare | Polyester | - | 250.0' (76.2m) | MW 35-C | 0.5 lbs (226.8 g) |
|
23HNSP.25#23 HVY MAG WIRE, 155C RED 4OZ |
2,444 | - |
|
Datasheet | - | Box | Active | 23 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.025" (0.63mm) | 156.0' (47.5m) | MW 80-C | 0.25 lbs (113.4 g) |
|

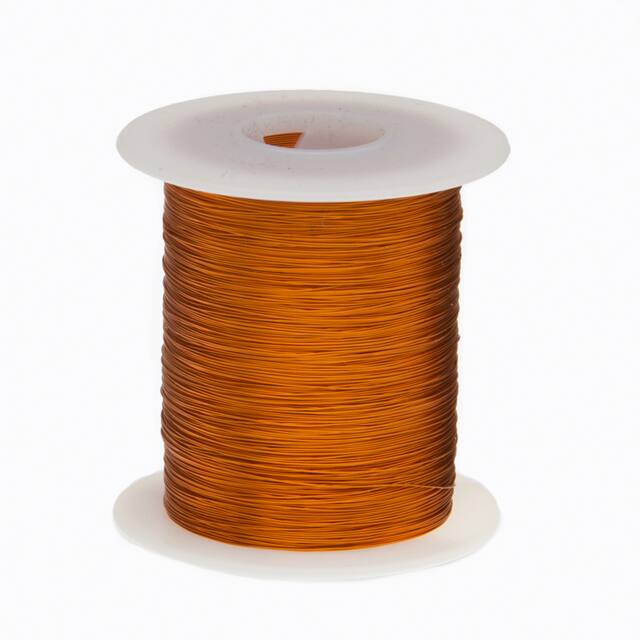

28H200P.528H200P.5 28 AWG MAGNET WIRE, EN |
2,942 | - |
|
Datasheet | - | Bag | Active | 28 AWG | Copper, Annealed Bare | Polyester | - | 994.0' (303m) | MW 35-C | 0.5 lbs (226.8 g) |
Magnetic Wire FAQ
How can I narrow the current Magnetic Wire selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Magnetic Wire parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
