Magnetic Wire
Compare the current Magnetic Wire Magnetics - Transformer, Inductor Components selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Wire Gauge | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Length - Approximate | Ratings | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

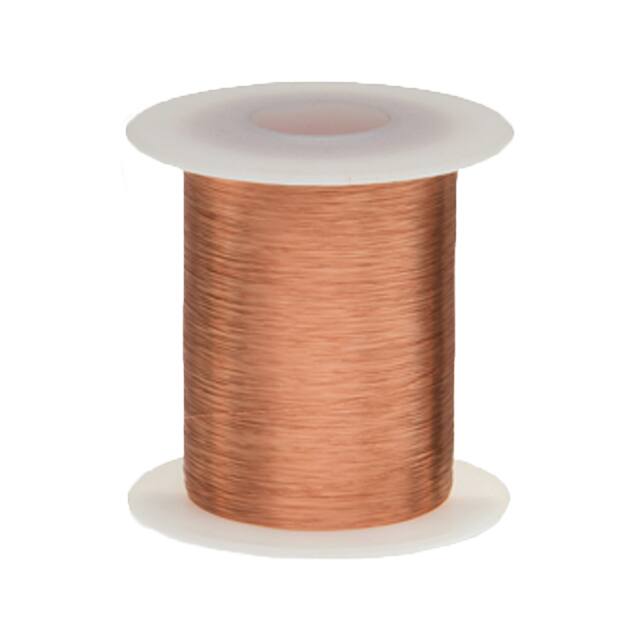

41SNSP.2541SNSP.25 41 AWG MAGNET WIRE, EN |
3,382 | - |
|
Datasheet | - | Bag | Active | 41 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 10180.0' (3103m) | MW 79-C | 0.25 lbs (113.4 g) |
|
35HNSP.25#35 HVY MAG WIRE, 155C RED 4OZ |
3,095 | - |
|
Datasheet | - | Box | Active | 35 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.007" (0.18mm) | 2473.0' (754m) | MW 79-C | 0.25 lbs (113.4 g) |
|

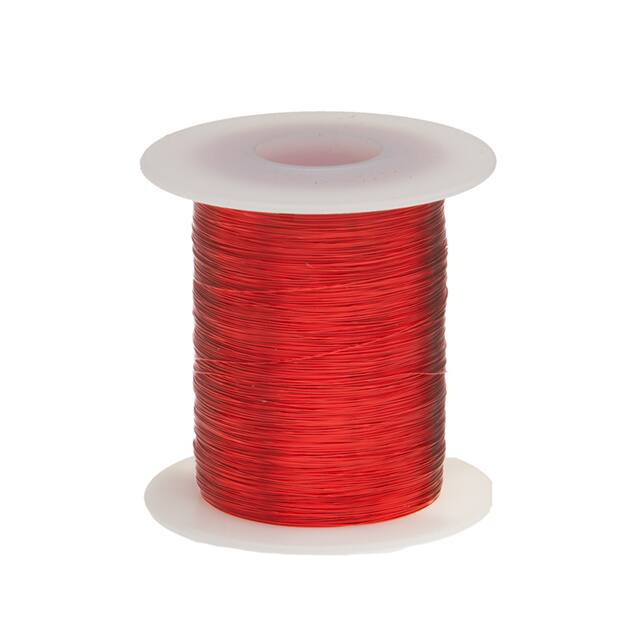

27SNSP.527SNSP.5 27 AWG MAGNET WIRE, ENA |
2,716 | - |
|
Datasheet | - | Bag | Active | 27 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 801.0' (244m) | MW 80-C | 0.5 lbs (226.8 g) |
|
26SNSP.526SNSP.5 26 AWG MAGNET WIRE, ENA |
2,901 | - |
|
Datasheet | - | Bag | Active | 26 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 640.0' (195m) | MW 80-C | 0.5 lbs (226.8 g) |
|

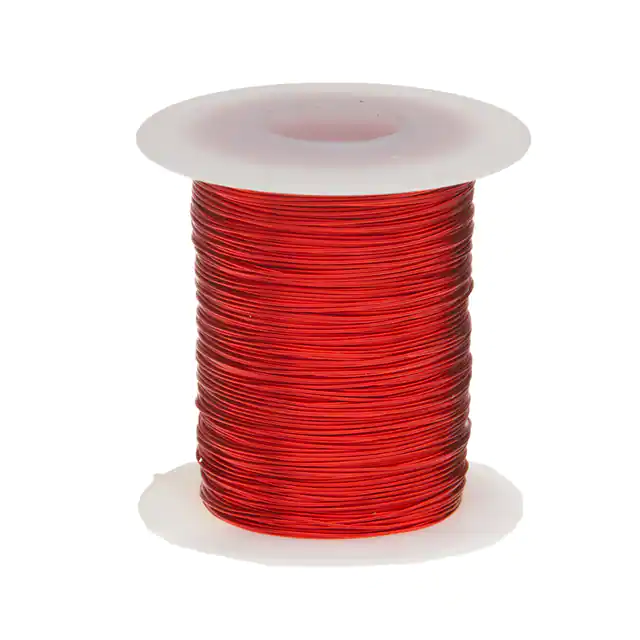

25SNSP.525SNSP.5 25 AWG MAGNET WIRE, ENA |
4,090 | - |
|
Datasheet | - | Bag | Active | 25 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 506.0' (154m) | MW 80-C | 0.5 lbs (226.8 g) |
|
20H240P.125#20 HVY MAG WIRE, 240C NAT 2OZ |
2,853 | - |
|
Datasheet | - | Box | Active | 20 AWG | Copper, Annealed Bare | Polyimide | 0.035" (0.89mm) | 10.0' (3m) | MW 16-C | 0.13 lbs (56.7 g) |
|
16SNSP.516SNSP.5 MAGNET WIRE, ENAMELED C |
4,316 | - |
|
Datasheet | - | Bag | Active | 16 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 63.0' (19m) | MW 80-C | 0.5 lbs (226.8 g) |
|
|
36HNSP.25#36 HVY MAG WIRE, 155C NAT 4OZ |
3,072 | - |
|
Datasheet | - | Box | Active | 36 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.006" (0.16mm) | 3095.0' (943m) | MW 79-C | 0.25 lbs (113.4 g) |
|
31SNSP.531SNSP.5 31 AWG MAGNET WIRE, ENA |
4,278 | - |
|
Datasheet | - | Bag | Active | 31 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 2027.0' (618m) | MW 80-C | 0.5 lbs (226.8 g) |
|
28SNSP.528SNSP.5 MAGNET WIRE, ENAMELED C |
3,493 | - |
|
Datasheet | - | Bag | Active | 28 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 1014.0' (309m) | MW 80-C | 0.5 lbs (226.8 g) |
Magnetic Wire FAQ
How can I narrow the current Magnetic Wire selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Magnetic Wire parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
