Magnetic Wire
Compare the current Magnetic Wire Magnetics - Transformer, Inductor Components selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Wire Gauge | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Length - Approximate | Ratings | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

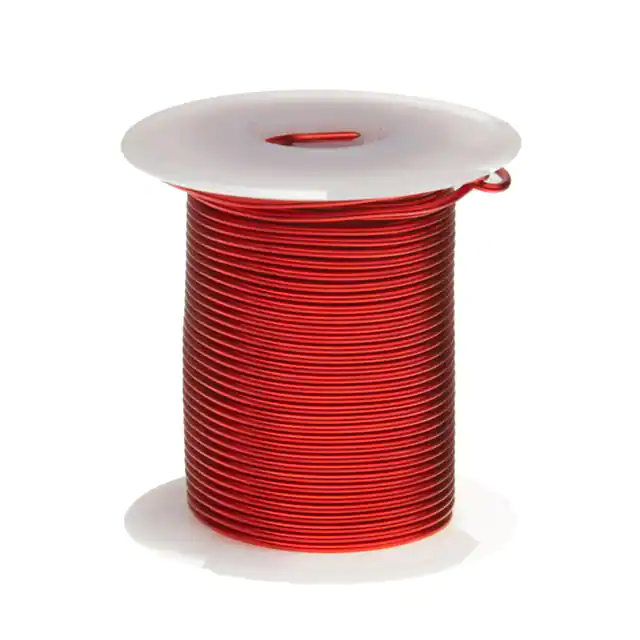

17HNSP.25#17 HVY MAG WIRE, 155C RED 4OZ |
2,648 | - |
|
Datasheet | - | Box | Active | 17 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.048" (1.22mm) | 39.0' (12m) | MW 80-C | 0.25 lbs (113.4 g) |
|
21SNSP.521SNSP.5 MAGNET WIRE, ENAMELED C |
1,806 | - |
|
Datasheet | - | Bag | Active | 21 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 200.0' (61m) | MW 80-C | 0.5 lbs (226.8 g) |
|

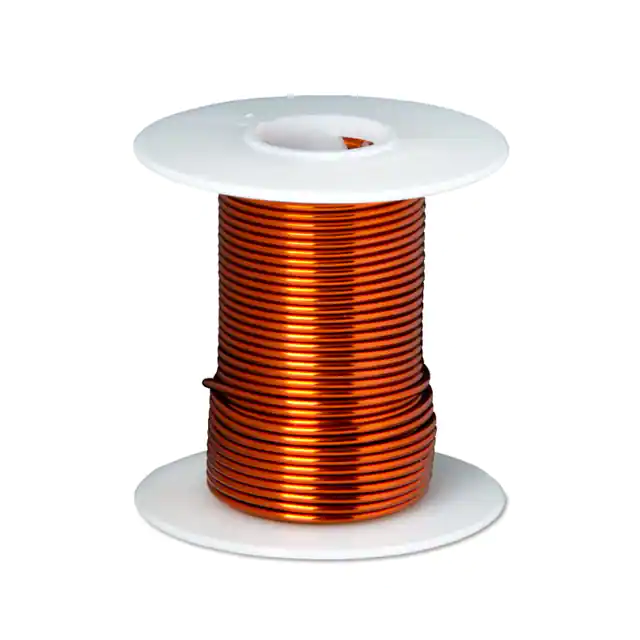

14H240P.125#14 HVY MAG WIRE, 240C NAT 2OZ |
2,184 | - |
|
Datasheet | - | Box | Active | 14 AWG | Copper, Annealed Bare | Polyimide | 0.068" (1.73mm) | 10.0' (3m) | MW 16-C | 0.13 lbs (56.7 g) |
|

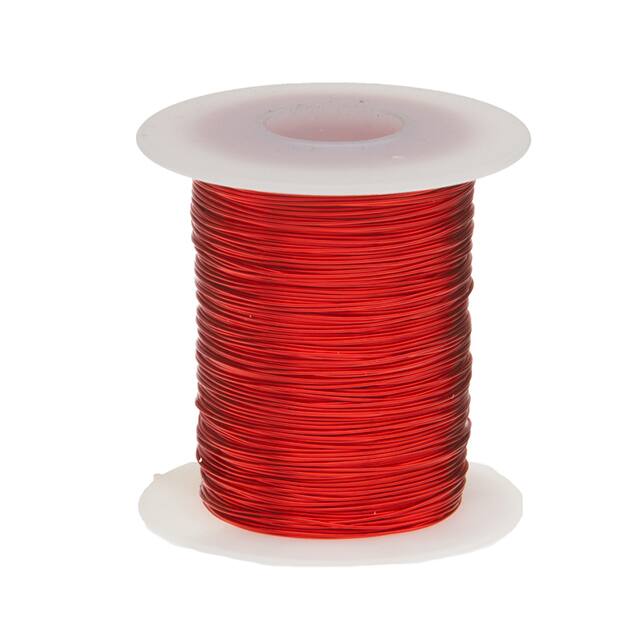

24SNSP.524SNSP.5 MAGNET WIRE, ENAMELED C |
4,275 | - |
|
Datasheet | - | Bag | Active | 24 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 401.0' (122m) | MW 80-C | 0.5 lbs (226.8 g) |
|
|
16H240P.125#16 HVY MAG WIRE, 240C NAT 2OZ |
4,836 | - |
|
Datasheet | - | Box | Active | 16 AWG | Copper, Annealed Bare | Polyimide | 0.055" (1.40mm) | 10.0' (3m) | MW 16-C | 0.13 lbs (56.7 g) |
|
33HNSP.25#33 HVY MAG WIRE, 155C RED 4OZ |
1,901 | - |
|
Datasheet | - | Box | Active | 33 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.008" (0.20mm) | 1540.0' (469m) | MW 79-C | 0.25 lbs (113.4 g) |
|
21HNSP.25#21 HVY MAG WIRE, 155C RED 4OZ |
4,863 | - |
|
Datasheet | - | Box | Active | 21 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.031" (0.79mm) | 99.0' (30m) | MW 80-C | 0.25 lbs (113.4 g) |
|

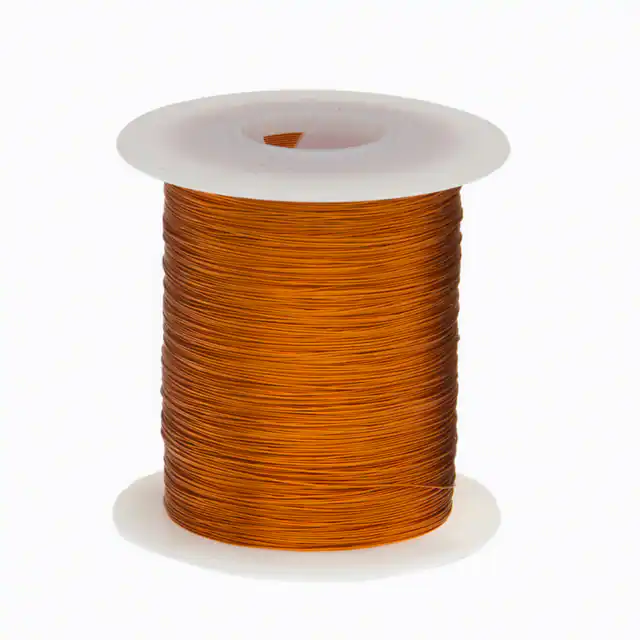

32H200P.532H200P.5 32 AWG MAGNET WIRE, EN |
4,363 | - |
|
Datasheet | - | Bag | Active | 32 AWG | Copper, Annealed Bare | Polyester | - | 2433.0' (742m) | MW 35-C | 0.5 lbs (226.8 g) |
|
|
34HNSP.25#34 HVY MAG WIRE, 155C RED 4OZ |
1,498 | - |
|
Datasheet | - | Box | Active | 34 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.008" (0.20mm) | 1959.0' (597m) | MW 79-C | 0.25 lbs (113.4 g) |
|
|
18H240P.125#18 HVY MAG WIRE, 240C NAT 2OZ |
4,762 | - |
|
Datasheet | - | Box | Active | 18 AWG | Copper, Annealed Bare | Polyimide | 0.044" (1.12mm) | 10.0' (3m) | MW 16-C | 0.13 lbs (56.7 g) |
Magnetic Wire FAQ
How can I narrow the current Magnetic Wire selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Magnetic Wire parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
