Magnetic Wire
Compare the current Magnetic Wire Magnetics - Transformer, Inductor Components selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Wire Gauge | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Length - Approximate | Ratings | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
39HNSP.5#39 HVY MAG WIRE, 155C RED 8OZ |
2,575 | - |
|
Datasheet | - | Box | Active | 39 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.004" (0.11mm) | 12635.0' (3851.1m) | MW 79-C | 0.5 lbs (226.8 g) |
|

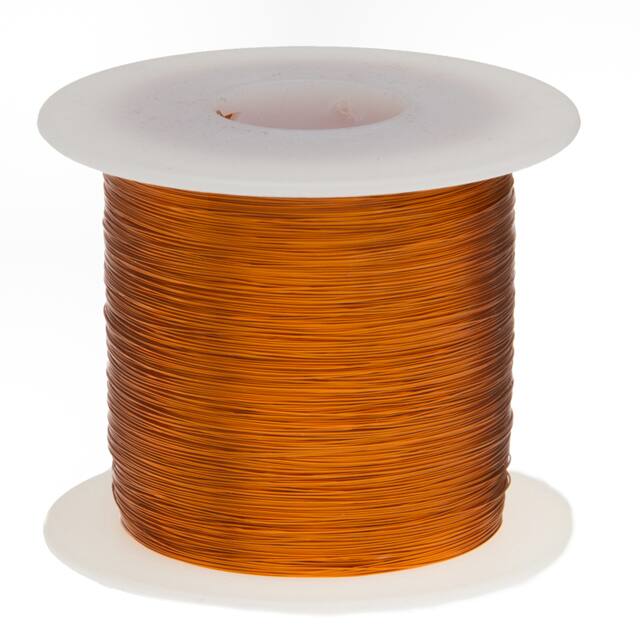

26H200P26H200P MAGNET WIRE, ENAMELED CO |
1,823 | - |
|
Datasheet | - | Bag | Active | 26 AWG | Copper, Annealed Bare | Polyester | - | 1254.0' (382m) | MW 35-C | - |
|
|
40HNSP.5#40 HVY MAG WIRE, 155C RED 8OZ |
1,278 | - |
|
Datasheet | - | Box | Active | 40 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.004" (0.11mm) | 15970.0' (4868m) | MW 79-C | 0.5 lbs (226.8 g) |
|

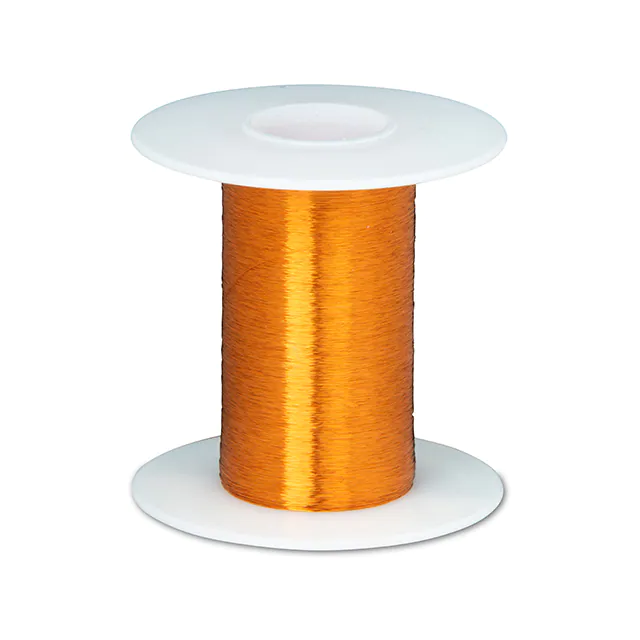

42HFVP.2542HFVP.25 42 AWG HEAVY BUILD MAG |
4,561 | - |
|
Datasheet | - | Bag | Active | 42 AWG | Copper, Annealed Bare | Enamel | - | 12400.0' (3780m) | MW 15-C | 0.25 lbs (113.4 g) |
|
|
41HNSP.5#41 HVY MAG WIRE, 155C RED 8OZ |
1,019 | - |
|
Datasheet | - | Box | Active | 41 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.004" (0.11mm) | 19670.0' (5995m) | MW 79-C | 0.5 lbs (226.8 g) |
|
28H240P.25#28 HVY MAG WIRE, 240C NAT 4OZ |
4,672 | - |
|
Datasheet | - | Box | Active | 28 AWG | Copper, Annealed Bare | Polyimide | 0.015" (0.38mm) | 20.0' (6.1m) | MW 16-C | 0.25 lbs (113.4 g) |
|
42SNSPR.542SNSPR.5 42 AWG MAGNET WIRE, EN |
100 | - |
|
Datasheet | - | Bag | Active | 42 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 25657.0' (7820m) | MW 79-C | 0.5 lbs (226.8 g) |
|
42SNSP.542SNSP.5 42 AWG MAGNET WIRE, ENA |
3,824 | - |
|
Datasheet | - | Bag | Active | 42 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 25657.0' (7820m) | MW 79-C | 0.5 lbs (226.8 g) |
|
28H200P28H200P MAGNET WIRE, ENAMELED CO |
1,819 | - |
|
Datasheet | - | Bag | Active | 28 AWG | Copper, Annealed Bare | Polyester | - | 1987.0' (606m) | MW 35-C | - |
|
16H200P16H200P 16 AWG MAGNET WIRE, ENAM |
1,060 | - |
|
Datasheet | - | Bag | Active | 16 AWG | Copper, Annealed Bare | Polyester | - | 125.0' (38m) | MW 35-C | 1.0 lbs (453.6 g) |
Magnetic Wire FAQ
How can I narrow the current Magnetic Wire selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Magnetic Wire parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
