Power Transformers
Compare the current Power Transformers Transformers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F16-400PWR XFMR LAMINATED 6VA TH |
1,045 | - |
|
Datasheet | Split Pack™ | Box | Active | Laminated Core | 115V | Parallel 8V, Series 16V | Parallel 800mA, Series 400mA | Single | Dual | No | 6VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 33.32mm | 2500Vrms | 0.44 lb (199.58 g) |
|
FD4-28PWR XFMR LAMINATED 6VA CHAS MT |
4,794 | - |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V, 230V | 28V | 200mA | Dual | Single | Yes | 6VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 65.07mm L x 31.75mm W | 34.93mm | 2500VAC | 0.44 lb (199.58 g) |
|

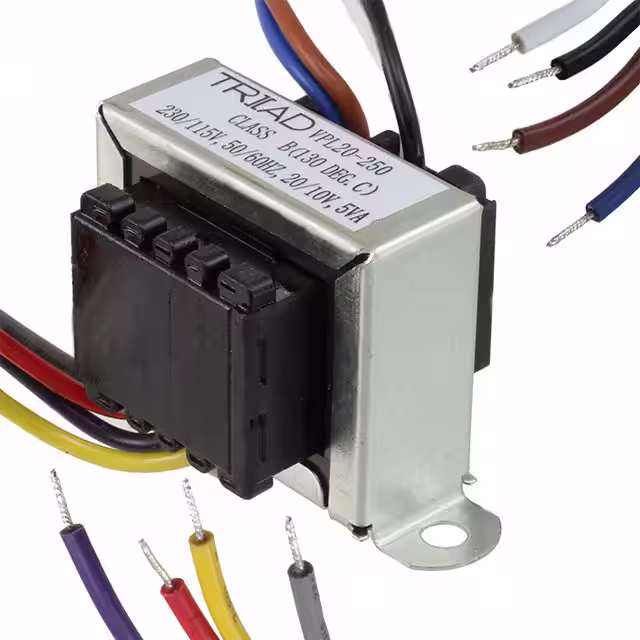

VPL20-250PWR XFMR LAMINATED 5.0VA CHAS MT |
1,810 | - |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | 20V | 250mA | Dual | Dual | No | 5.0VA | Chassis Mount | Wire Leads | 36.52mm L x 60.33mm W | 36.52mm | 3500Vrms | 0.4 lb (181.44 g) |
|
F48-400PWR XFMR LAMINATED 20VA TH |
2,778 | - |
|
Datasheet | Split Pack™, Class 2/3, F | Box | Active | Laminated Core | 115V | Parallel 24V, Series 48V | Parallel 800mA, Series 400mA | Single | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.50mm | 2500Vrms | 0.8 lb (362.87 g) |
|
F-44XPWR XFMR LAMINATED 25.2VA CHAS |
2,031 | - |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 12.6V | 2A | Single | Single | Yes | 25.2VA | Chassis Mount | Wire Leads | 84.12mm L x 50.80mm W | 49.20mm | 1500Vrms | 1.3 lbs (589.7 g) |
|
FP230-50PWR XFMR LAMINATED 12VA TH |
4,853 | - |
|
Datasheet | Flat Pack™ | Box | Active | Laminated Core | 115V, 230V | Parallel 120V, Series 230V | Parallel 100mA, Series 50mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 63.50mm L x 50.80mm W | 26.97mm | 2000Vrms | 0.688 lb (312.07 g) |
|
VPS28-1500PWR XFMR LAMINATED 43VA CHAS MT |
1,984 | - |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 3A, Series 1.5A | Dual | Dual | No | 43VA | Chassis Mount | Solder, Quick Connect | 58.67mm L x 50.80mm W | 68.33mm | 4000Vrms | 1.6 lbs (725.7 g) |
|
|
F16-2250PWR XFMR LAMINATED 36VA TH |
3,785 | - |
|
Datasheet | Split Pack™ | Box | Active | Laminated Core | 115V | Parallel 8V, Series 16V | Parallel 4.5A, Series 2.25A | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.80mm L x 55.55mm W | 39.62mm | 2500Vrms | 1.1 lbs (499 g) |
|
FD6-28PWR XFMR LAMINATED 30VA CHAS MT |
1,702 | - |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V, 230V | 28V | 1.1A | Dual | Single | Yes | 30VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 82.55mm L x 42.85mm W | 49.20mm | 2500VAC | 1.1 lbs (499 g) |
|
TCT40-06E07ABPWR XFMR LAMINATED 40VA CHAS MT |
2,994 | - |
|
Datasheet | Class 2, TCT | Box | Active | Laminated Core | 120V, 240V | 24V | 1.67A | Single, Multiple Taps | Single | No | 40VA | Chassis Mount | Solder, Quick Connect | 92.46mm L x 56.67mm W | 57.40mm | 1500Vrms | 1.5 lbs (680.4 g) |
Power Transformers FAQ
How can I narrow the current Power Transformers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Power Transformers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
