Power Transformers
Compare the current Power Transformers Transformers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F-251XPWR XFMR LAMINATED 28VA CHAS MT |
2,605 | - |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 14V | 2A | Single | Single | Yes | 28VA | Chassis Mount | Wire Leads | 93.65mm L x 49.0mm W | 57.15mm | 1500Vrms | 1.5 lbs (680.4 g) |
|
TCT50-09E07ABPWR XFMR LAMINATED 50VA CHAS MT |
2,116 | - |
|
Datasheet | Class 2, TCT | Box | Active | Laminated Core | 208V, 240V | 24V | 2.08A | Single, Multiple Taps | Single | No | 50VA | Chassis Mount | Solder, Quick Connect | 92.46mm L x 56.67mm W | 57.40mm | 1500Vrms | 2 lbs (907.2 g) |
|
VPS16-2700PWR XFMR LAMINATED 43VA CHAS MT |
1,251 | - |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 5.4A, Series 2.7A | Dual | Dual | No | 43VA | Chassis Mount | Solder, Quick Connect | 58.67mm L x 50.80mm W | 54.10mm | 4000Vrms | 1.6 lbs (725.7 g) |
|
F-93XPWR XFMR LAMINATED VARIES CHAS |
4,185 | - |
|
Datasheet | Universal | Box | Active | Laminated Core | 115V | 10V, 20V, 40V | 750mA | Single, Multiple Taps | Single, Multiple Taps | No | Varies | Chassis Mount | Wire Leads | 101.60mm L x 57.15mm W | 66.04mm | 1500Vrms | 2.4 lbs (1.1 kg) |
|

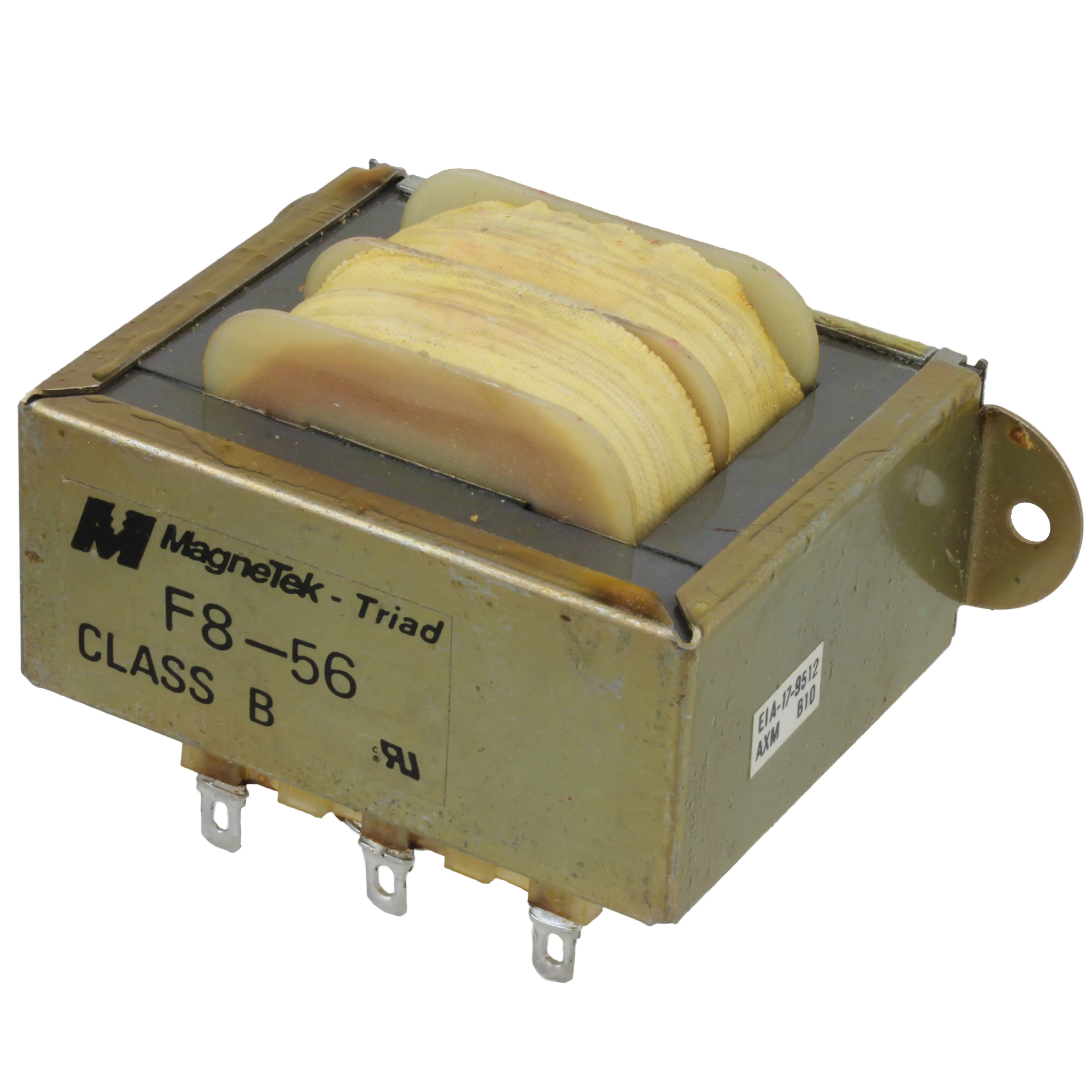

F8-56PWR XFMR LAMINATED 100VA CHAS MT |
1,188 | - |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V | 56V | 1.8A | Single | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 102.39mm L x 57.15mm W | 65.07mm | 2500VAC | 2.8 lbs (1.3 kg) |
|

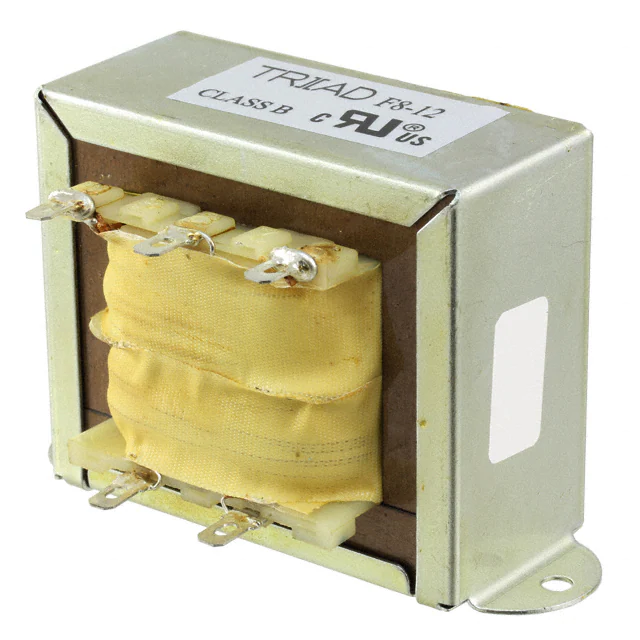

F8-12PWR XFMR LAMINATED 100VA CHAS MT |
1,188 | - |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V | 12.6V | 8A | Single | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 102.39mm L x 57.15mm W | 65.07mm | 2500VAC | 2.8 lbs (1.3 kg) |
|

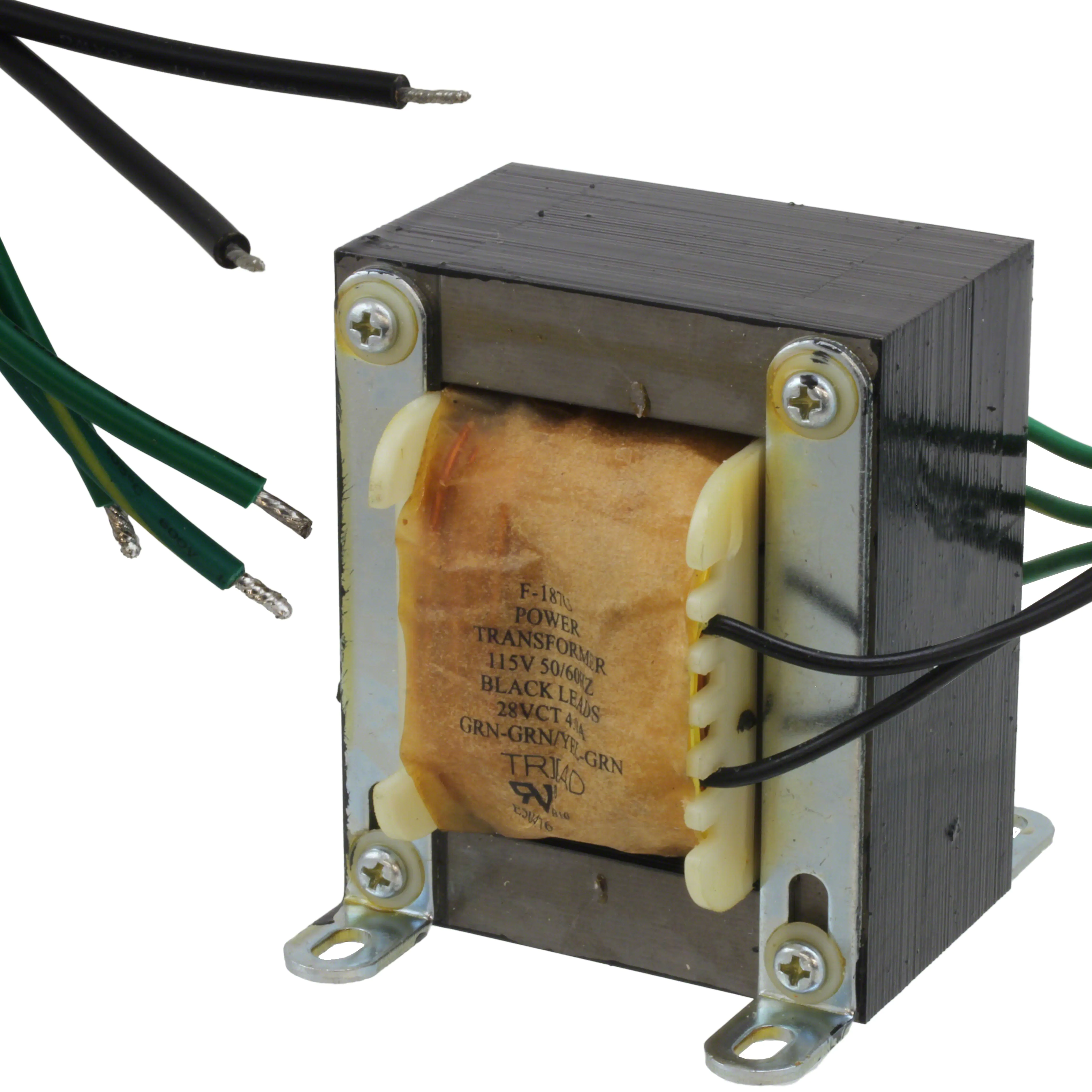

F-187UPWR XFMR LAMINATED 112VA CHAS MT |
2,496 | - |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 28V | 4A | Single | Single | Yes | 112VA | Chassis Mount | Wire Leads | 77.77mm L x 71.42mm W | 85.73mm | 1500Vrms | 5.3 lbs (2.4 kg) |
|

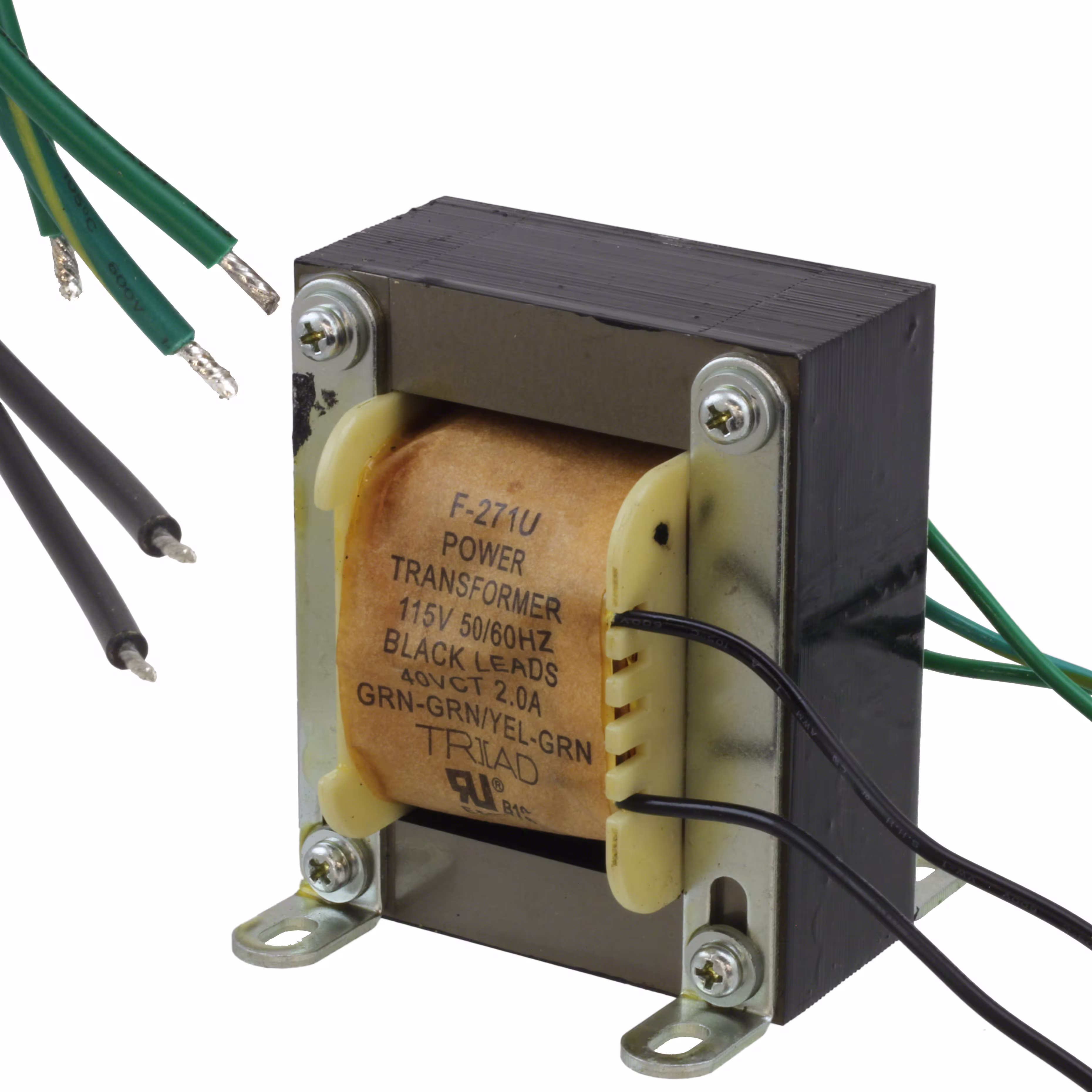

F-271UPWR XFMR LAMINATED 80VA CHAS MT |
2,216 | - |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 40V | 2A | Single | Single | Yes | 80VA | Chassis Mount | Wire Leads | 71.42mm L x 73.02mm W | 85.73mm | 1500Vrms | 4 lbs (1.8 kg) |
|

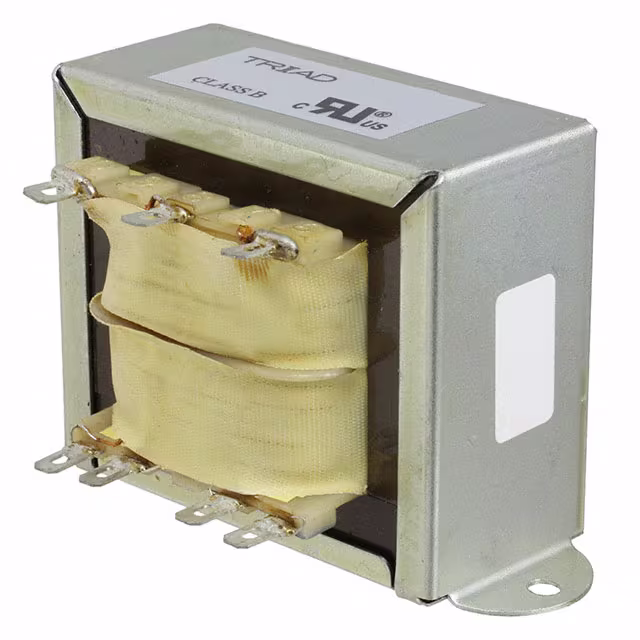

FD8-10PWR XFMR LAMINATED 100VA CHAS MT |
1,742 | - |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V, 230V | 10V | 10A | Dual | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 102.39mm L x 57.15mm W | 65.07mm | 2500VAC | 2.8 lbs (1.3 kg) |
|

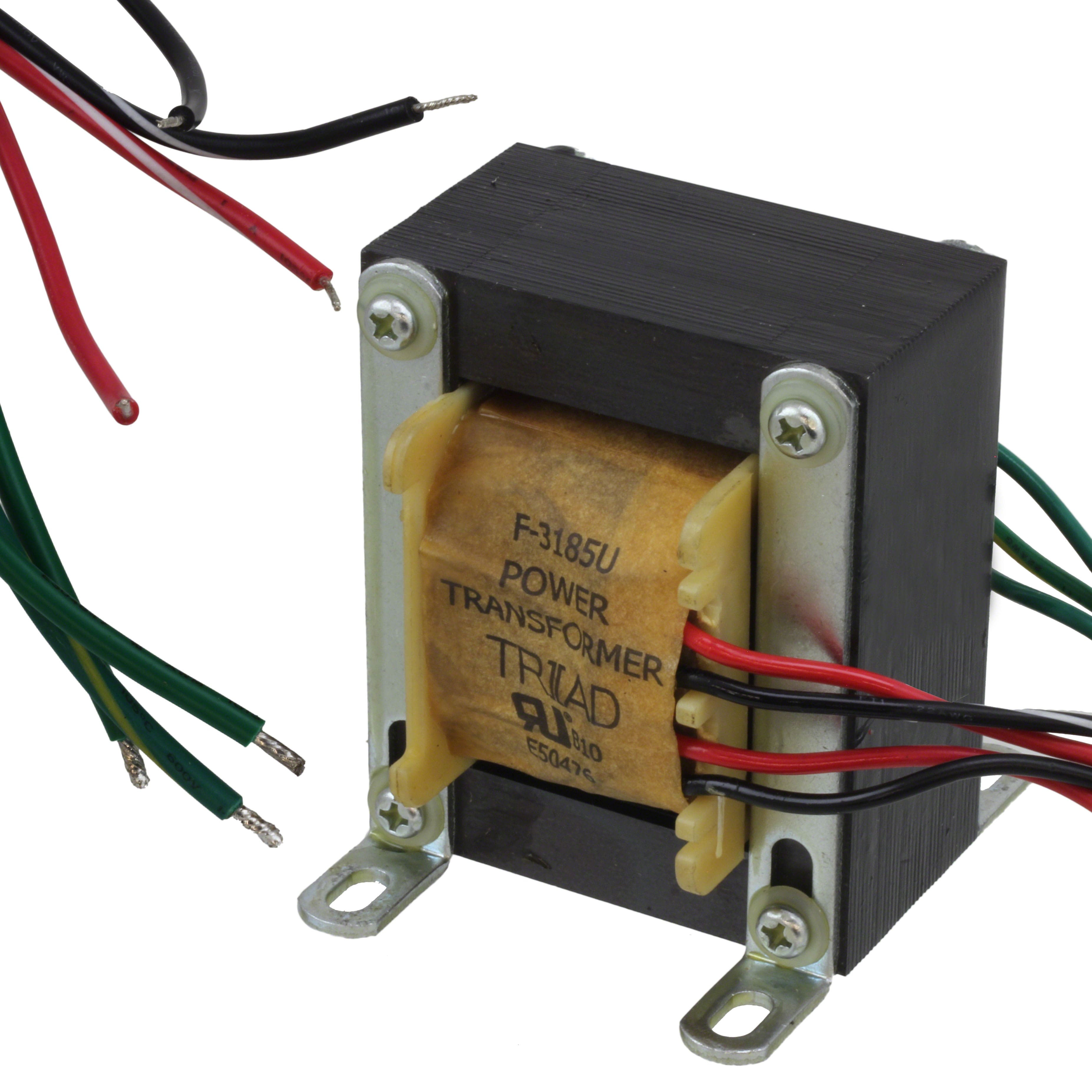

F-3185UPWR XFMR LAMINATED 56VA CHAS MT |
1,964 | - |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V, 230V | 28V | 2A | Dual | Single | Yes | 56VA | Chassis Mount | Wire Leads | 63.50mm L x 61.90mm W | 77.79mm | 1500Vrms | 2.9 lbs (1.3 kg) |
