PTC Resettable Fuses
Browse available PTC Resettable Fuses components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PTS181216V035PTC RESET FUSE 16V 350MA 1812 |
2,424 | - |
|
Datasheet | 1812 (4532 Metric), Concave | PTS1812 | Tape & Reel (TR) | Active | Polymeric | 16V | 350 mA | 700 mA | 100 A | 100 ms | 320 mOhms | 1.5 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.027" (0.68mm) | - |
.JPG "PRG15BC330MM1RC")
|
PRG15BC330MM1RCPTC RESET FUSE 30V 38MA 0402 |
90,806 | - |
|
Datasheet | 0402 (1005 Metric) | POSISTOR®, PRG | Tape & Reel (TR) | Active | Ceramic | 30V | 38 mA | 73 mA | 1.2 A | - | - | - | 33 Ohms | -20°C ~ 85°C | - | - | - | Surface Mount | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - |
|
0ZCH0035FF2GPTC RESET FUSE 16V 350MA 1210 |
51,816 | - |
|
Datasheet | 1210 (3225 Metric), Concave | 0ZCH | Tape & Reel (TR) | Active | Polymeric | 16V | 350 mA | 700 mA | 100 A | 200 ms | 320 mOhms | 1.3 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.032" (0.80mm) | - |
|
|
0ZCH0020FF2EPTC RESET FUSE 30V 200MA 1210 |
32,889 | - |
|
Datasheet | 1210 (3225 Metric), Concave | 0ZCH | Tape & Reel (TR) | Active | Polymeric | 30V | 200 mA | 400 mA | 10 A | 20 ms | 800 mOhms | 5 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.033" (0.85mm) | - |
,-Concave.jpg "0ZCG0035AF2C")
|
0ZCG0035AF2CPTC RESET FUSE 30V 350MA 1812 |
23,693 | - |
|
Datasheet | 1812 (4532 Metric), Concave | 0ZCG | Tape & Reel (TR) | Active | Polymeric | 30V | 350 mA | 700 mA | 40 A | 100 ms | 320 mOhms | 1.5 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.028" (0.70mm) | - |
|
|
0ZCG0110FF2CPTC RESET FUSE 8V 1.1A 1812 |
15,023 | - |
|
Datasheet | 1812 (4532 Metric), Concave | 0ZCG | Tape & Reel (TR) | Active | Polymeric | 8V | 1.1 A | 2.2 A | 100 A | 300 ms | 40 mOhms | 210 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.022" (0.55mm) | - |
|
|
0ZCH0075FF2GPTC RESET FUSE 8V 750MA 1210 |
8,893 | - |
|
Datasheet | 1210 (3225 Metric), Concave | 0ZCH | Tape & Reel (TR) | Active | Polymeric | 8V | 750 mA | 1.5 A | 100 A | 100 ms | 130 mOhms | 400 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.028" (0.70mm) | - |
.JPG "MF-NSMF035X-2")
|
MF-NSMF035X-2PTC RESET FUSE 16V 350MA 1206 |
8,376 | - |
|
Datasheet | 1206 (3216 Metric), Concave | Multifuse® freeXpansionTM, MF-NSMF | Tape & Reel (TR) | Active | Polymeric | 16V | 350 mA | 750 mA | 20 A | 140 ms | 300 mOhms | 1.4 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.033" (0.85mm) | - |
|
MF-MSMF110-2PTC RESET FUSE 6V 1.1A 1812 |
7,205 | - |
|
Datasheet | 1812 (4532 Metric), Concave | Multifuse®, MF-MSMF | Tape & Reel (TR) | Active | Polymeric | 6V | 1.1 A | 2.2 A | 100 A | 300 ms | 40 mOhms | 210 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.181" L x 0.128" W (4.60mm x 3.24mm) | - | 0.033" (0.85mm) | - |
|
SMD1812B150TF/24PTC RESET FUSE 24V 1.5A 1812 |
5,733 | - |
|
Datasheet | 1812 (4532 Metric), Concave | SMD1812 | Tape & Reel (TR) | Active | Polymeric | 24V | 1.5 A | 3 A | 20 A | 1.5 s | 40 mOhms | 120 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.083" (2.10mm) | - |
|
|
0ZCG0125AF2BPTC RESET FUSE 16V 1.25A 1812 |
34,516 | - |
|
Datasheet | 1812 (4532 Metric), Concave | 0ZCG | Tape & Reel (TR) | Active | Polymeric | 16V | 1.25 A | 2.5 A | 100 A | 400 ms | 50 mOhms | 140 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.039" (1.00mm) | - |
|
|
0ZCG0150AF2CPTC RESET FUSE 12V 1.5A 1812 |
32,867 | - |
|
Datasheet | 1812 (4532 Metric), Concave | 0ZCG | Tape & Reel (TR) | Active | Polymeric | 12V | 1.5 A | 3 A | 100 A | 500 ms | 40 mOhms | 110 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.043" (1.10mm) | - |
|

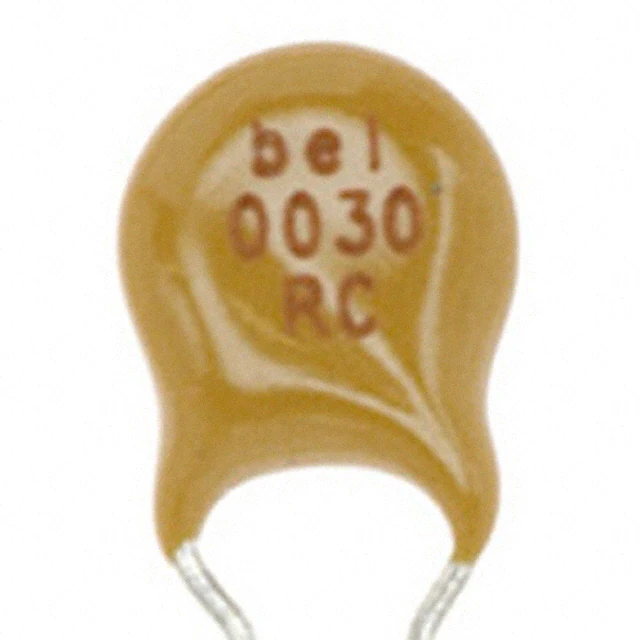

0ZRC0030FF1EPTC RESET FUSE 90V 300MA RADIAL |
17,391 | - |
|
Datasheet | Radial, Disc | 0ZRC | Box | Active | Polymeric | 90V | 300 mA | 600 mA | 40 A | 3 s | 880 mOhms | 2.1 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" L x 0.122" W (7.40mm x 3.10mm) | 0.512" (13.00mm) | - | 0.201" (5.10mm) |
|
PTS12066V075PTC RESET FUSE 6V 750MA 1206 |
7,503 | - |
|
Datasheet | 1206 (3216 Metric), Concave | PTS1206 | Tape & Reel (TR) | Active | Polymeric | 6V | 750 mA | 1.5 A | 100 A | 100 ms | 90 mOhms | 290 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.033" (0.85mm) | - |
|
|
SMD1812B260TF/16PTC RESET FUSE 16V 2.6A 1812 |
2,944 | - |
|
Datasheet | 1812 (4532 Metric), Concave | SMD1812 | Tape & Reel (TR) | Active | Polymeric | 16V | 2.6 A | 5 A | 100 A | 5 s | 15 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.083" (2.10mm) | - |
|
PTS060315V005PTC RESET FUSE 50MA 15V 0603 |
64,273 | - |
|
Datasheet | 0603 (1608 Metric), Concave | PTS0603 | Tape & Reel (TR) | Active | - | 15V | 50 mA | 150 mA | 1 A | 1 s | 1 Ohms | 40 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.065" L x 0.031" W (1.65mm x 0.80mm) | - | 0.031" (0.80mm) | - |
|
|
MF-NSMF110-2PTC RESET FUSE 6V 1.1A 1206 |
61,797 | - |
|
Datasheet | 1206 (3216 Metric), Concave | Multifuse®, MF-NSMF | Tape & Reel (TR) | Active | Polymeric | 6V | 1.1 A | 2.2 A | 100 A | 100 ms | 60 mOhms | 200 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.028" (0.70mm) | - |
|
0ZCM0004FF2GPTC RESET FUSE 24V 40MA 0603 |
25,941 | - |
|
Datasheet | 0603 (1608 Metric), Concave | 0ZCM | Tape & Reel (TR) | Active | Polymeric | 24V | 40 mA | 120 mA | 40 A | 1 s | 4 Ohms | 40 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.063" L x 0.029" W (1.60mm x 0.73mm) | - | 0.030" (0.75mm) | - |
|
SMD0603B035TFPTC RESET FUSE 6V 350MA 0603 |
23,341 | - |
|
Datasheet | 0603 (1608 Metric), Concave | SMD0603 | Tape & Reel (TR) | Active | Polymeric | 6V | 350 mA | 750 mA | 40 A | 100 ms | 200 mOhms | 1 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.061" (1.55mm) | - |
|
|
0ZCM0012FF2GPTC RESET FUSE 9V 120MA 0603 |
22,997 | - |
|
Datasheet | 0603 (1608 Metric), Concave | 0ZCM | Tape & Reel (TR) | Active | Polymeric | 9V | 120 mA | 300 mA | 40 A | 100 ms | 1.1 Ohms | 5.8 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.063" L x 0.029" W (1.60mm x 0.73mm) | - | 0.030" (0.75mm) | - |
PTC Resettable Fuses FAQ
What PTC Resettable Fuses components can I source from EGOO?
You can browse available PTC Resettable Fuses product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete PTC Resettable Fuses parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
