PTC Resettable Fuses
Browse available PTC Resettable Fuses components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RUSBF090-2PTC RESET FUSE 16V 900MA RADIAL |
4,328 | - |
|
Datasheet | Radial, Disc | PolySwitch®, RUSBF | Tape & Reel (TR) | Active | Polymeric | 16V | 900 mA | 1.8 A | 40 A | 1.2 s | 70 mOhms | 180 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" L x 0.122" W (7.40mm x 3.10mm) | 0.480" (12.20mm) | - | 0.199" (5.05mm) |
|
RXEF030-2PTC RESET FUSE 72V 300MA RADIAL |
3,181 | - |
|
Datasheet | Radial, Disc | PolySwitch®, RXEF | Tape & Reel (TR) | Active | Polymeric | 72V | 300 mA | 600 mA | 40 A | 3 s | 880 mOhms | 2.1 Ohms | - | - | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.500" (12.70mm) | - | 0.200" (5.08mm) |
|
PTSLR06038V075PTC RESET FUSE 750MA 8V 0603 |
2,480 | - |
|
Datasheet | 0603 (1608 Metric), Concave | PTSLR0603 | Tape & Reel (TR) | Active | - | 8V | 750 mA | 1.5 A | 25 A | 1 s | 30 mOhms | 165 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.071" L x 0.039" W (1.80mm x 1.00mm) | - | 0.039" (1.00mm) | - |
|
SMD2920B300TF/15PTC RESET FUSE 15V 3A 2920 |
1,563 | - |
|
Datasheet | 2920 (7351 Metric), Concave | SMD2920 | Tape & Reel (TR) | Active | Polymeric | 15V | 3 A | 5 A | 40 A | 20 s | 12 mOhms | 48 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.071" (1.80mm) | - |
|
RXEF020PTC RESET FUSE 72V 200MA RADIAL |
13,392 | - |
|
Datasheet | Radial, Disc | PolySwitch®, RXEF | Bag | Active | Polymeric | 72V | 200 mA | 400 mA | 40 A | 2.2 s | 1.83 Ohms | 4.4 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.461" (11.70mm) | - | 0.199" (5.05mm) |
|
RUSBF075PTC RESET FUSE 6V 750MA RADIAL |
5,691 | - |
|
Datasheet | Radial, Disc | PolySwitch®, RUSBF | Bag | Active | Polymeric | 6V | 750 mA | 1.3 A | 40 A | 400 ms | 110 mOhms | 230 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.272" Dia x 0.122" T (6.90mm x 3.10mm) | 0.449" (11.40mm) | - | 0.201" (5.10mm) |
|
MF-R030-2PTC RESET FUSE 60V 300MA RADIAL |
13,811 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Active | Polymeric | 60V | 300 mA | 600 mA | 40 A | 3 s | 760 mOhms | 2.1 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.528" (13.40mm) | - | 0.201" (5.10mm) |
|
1206L035YRPTC RESET FUSE 6V 350MA 1206 |
9,695 | - |
|
Datasheet | 1206 (3216 Metric), Concave | POLY-FUSE®, 1206L | Tape & Reel (TR) | Active | Polymeric | 6V | 350 mA | 750 mA | 100 A | 100 ms | 300 mOhms | 1.2 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | - | 0.030" (0.75mm) | - |
|

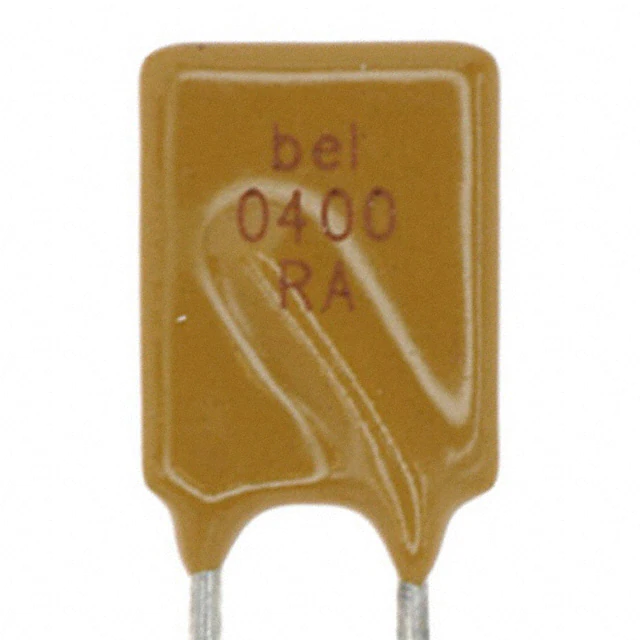

0ZRA0400FF1EPTC RESET FUSE 16V 4A RADIAL |
8,370 | - |
|
Datasheet | Radial, Disc | 0ZRA | Box | Active | Polymeric | 16V | 4 A | 6.8 A | 100 A | 3.5 s | 20 mOhms | 63 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.280" L x 0.118" W (7.10mm x 3.00mm) | 0.504" (12.80mm) | - | 0.201" (5.10mm) |
|
MF-R090PTC RESET FUSE 60V 900MA RADIAL |
7,842 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-R | Bulk | Active | Polymeric | 60V | 900 mA | 1.8 A | 40 A | 7.2 s | 140 mOhms | 470 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.461" L x 0.122" W (11.70mm x 3.10mm) | 0.657" (16.70mm) | - | 0.201" (5.10mm) |
|
MF-RX110/72-0PTC RESET FUSE 72V 1.1A RADIAL |
7,048 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-RX/72 | Bulk | Active | Polymeric | 72V | 1.1 A | 2.2 A | 40 A | 8.2 s | 150 mOhms | 380 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.427" L x 0.122" W (10.84mm x 3.10mm) | 0.662" (16.84mm) | - | 0.201" (5.10mm) |
|
MF-R065PTC RESET FUSE 60V 650MA RADIAL |
6,120 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-R | Bulk | Active | Polymeric | 60V | 650 mA | 1.3 A | 40 A | 5.3 s | 270 mOhms | 720 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.382" Dia x 0.122" T (9.70mm x 3.10mm) | 0.598" (15.20mm) | - | 0.201" (5.10mm) |
|
NANOSMDC025F-2PTC RESET FUSE 16V 250MA 1206 |
5,663 | - |
|
Datasheet | 1206 (3216 Metric), Concave | nanoSMD | Tape & Reel (TR) | Active | Polymeric | 16V | 250 mA | 580 mA | 100 A | 100 ms | - | - | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.59mm) | - | 0.032" (0.80mm) | - |
|

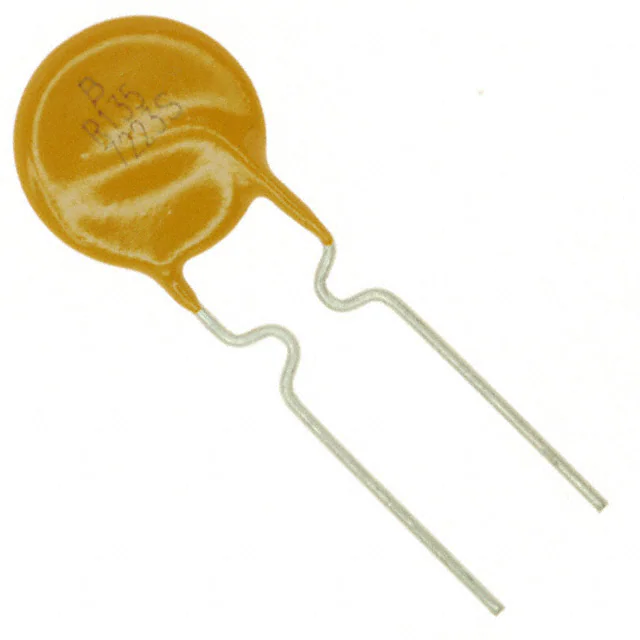

MF-R135PTC RESET FUSE 30V 1.35A RADIAL |
5,071 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-R | Bulk | Active | Polymeric | 30V | 1.35 A | 2.7 A | 40 A | 7.3 s | 65 mOhms | 170 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.350" Dia x 0.118" T (8.90mm x 3.00mm) | 0.744" (18.90mm) | - | 0.201" (5.10mm) |
|
|
RXEF030PTC RESET FUSE 72V 300MA RADIAL |
4,834 | - |
|
Datasheet | Radial, Disc | PolySwitch®, RXEF | Bag | Active | Polymeric | 72V | 300 mA | 600 mA | 40 A | 3 s | 880 mOhms | 2.1 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.500" (12.70mm) | - | 0.200" (5.08mm) |
|
PTS080524V010PTC RESET FUSE 24V 100MA 0805 |
4,456 | - |
|
Datasheet | 0805 (2012 Metric) | PTS0805 | Tape & Reel (TR) | Active | - | 24V | 100 mA | 300 mA | 100 A | 1.5 s | - | - | - | - | - | - | - | Surface Mount | 0.085" L x 0.053" W (2.15mm x 1.35mm) | - | 0.039" (1.00mm) | - |
|
|
MF-R040PTC RESET FUSE 60V 400MA RADIAL |
4,145 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-R | Bulk | Active | Polymeric | 60V | 400 mA | 800 mA | 40 A | 3.8 s | 520 mOhms | 1.29 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.539" (13.70mm) | - | 0.201" (5.10mm) |
|
|
1206L110THYRPTC RESET FUSE 8V 1.1A 1206 |
15,843 | - |
|
Datasheet | 1206 (3216 Metric), Concave | POLY-FUSE®, 1206L | Tape & Reel (TR) | Active | Polymeric | 8V | 1.1 A | 2.2 A | 100 A | 100 ms | 40 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | - | 0.030" (0.75mm) | - |
|
NANOASMDC016F-2PTC RESET FUSE 48V 160MA 1206 |
12,376 | - |
|
Datasheet | 1206 (3216 Metric), Concave | PolySwitch®, nanoASMD | Tape & Reel (TR) | Active | Polymeric | 48V | 160 mA | 450 mA | 10 A | 300 ms | 1.1 Ohms | 5 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.59mm) | - | 0.039" (1.00mm) | - |
|
|
NANOASMDC012F-2PTC RESET FUSE 48V 120MA 1206 |
7,065 | - |
|
Datasheet | 1206 (3216 Metric), Concave | PolySwitch®, nanoASMD | Tape & Reel (TR) | Active | Polymeric | 48V | 120 mA | 390 mA | 10 A | 200 ms | 1.4 Ohms | 6.5 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.59mm) | - | 0.039" (1.00mm) | - |
PTC Resettable Fuses FAQ
What PTC Resettable Fuses components can I source from EGOO?
You can browse available PTC Resettable Fuses product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete PTC Resettable Fuses parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
