PTC Resettable Fuses
Browse available PTC Resettable Fuses components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PTSLR06038V050PTC RESET FUSE 500MA 8V 0603 |
22,344 | - |
|
Datasheet | 0603 (1608 Metric), Concave | PTSLR0603 | Tape & Reel (TR) | Active | - | 8V | 500 mA | 1 A | 25 A | 600 ms | 50 mOhms | 400 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.071" L x 0.039" W (1.80mm x 1.00mm) | - | 0.030" (0.75mm) | - |
|
MF-PSMF075X-2PTC RESET FUSE 6V 750MA 0805 |
19,526 | - |
|
Datasheet | 0805 (2012 Metric), Concave | Multifuse®, MF-PSMF | Tape & Reel (TR) | Active | Polymeric | 6V | 750 mA | 1.5 A | 40 A | 200 ms | 90 mOhms | 350 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.085" L x 0.053" W (2.15mm x 1.35mm) | - | 0.049" (1.25mm) | - |
,-Concave.jpg "0ZCG0260FF2C")
|
0ZCG0260FF2CPTC RESET FUSE 8V 2.6A 1812 |
16,129 | - |
|
Datasheet | 1812 (4532 Metric), Concave | 0ZCG | Tape & Reel (TR) | Active | Polymeric | 8V | 2.6 A | 5 A | 100 A | 2.5 s | 15 mOhms | 47 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.047" (1.20mm) | - |
|
0ZCJ0110FF2EPTC RESET FUSE 8V 1.1A 1206 |
13,144 | - |
|
Datasheet | 1206 (3216 Metric), Concave | 0ZCJ | Tape & Reel (TR) | Active | Polymeric | 8V | 1.1 A | 2.2 A | 100 A | 300 ms | 40 mOhms | 180 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.039" (1.00mm) | - |
|
|
0ZCG0075AF2BPTC RESET FUSE 24V 750MA 1812 |
12,774 | - |
|
Datasheet | 1812 (4532 Metric), Concave | 0ZCG | Tape & Reel (TR) | Active | Polymeric | 24V | 750 mA | 1.5 A | 40 A | 200 ms | 110 mOhms | 290 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.061" (1.55mm) | - |
|
0ZCH0110AF2EPTC RESET FUSE |
2,990 | - |
|
Datasheet | 1210 (3225 Metric), Concave | 0ZCH | Tape & Reel (TR) | Active | Polymeric | 16V | 1.1 A | 2.2 A | 100 A | 300 ms | 60 mOhms | 210 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.127" L x 0.101" W (3.22mm x 2.58mm) | - | 0.039" (1.00mm) | - |
|
MF-PSHT050KX-2PTC RESET FUSE 12V 500MA 0805 |
2,313 | - |
|
Datasheet | 0805 (2012 Metric), Concave | Multifuse®, MF-PSHT | Tape & Reel (TR) | Active | Polymeric | 12V | 500 mA | 2 A | 40 A | 100 ms | 120 mOhms | 1.6 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.085" L x 0.053" W (2.15mm x 1.35mm) | - | 0.047" (1.20mm) | - |
|
PFMF.010.2PTC RESET FUSE 60V 100MA 1812 |
191,683 | - |
|
Datasheet | 1812 (4532 Metric), Concave | PFMF | Tape & Reel (TR) | Active | Polymeric | 60V | 100 mA | 300 mA | 40 A | 1.5 s | 700 mOhms | 15 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.043" (1.10mm) | - |
|
|
PFMF.030.2PTC RESET FUSE 30V 300MA 1812 |
8,618 | - |
|
Datasheet | 1812 (4532 Metric), Concave | PFMF | Tape & Reel (TR) | Active | Polymeric | 30V | 300 mA | 600 mA | 10 A | 100 ms | 300 mOhms | 3 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.043" (1.10mm) | - |
|
|
PFMF.020.2PTC RESET FUSE 30V 200MA 1812 |
8,242 | - |
|
Datasheet | 1812 (4532 Metric), Concave | PFMF | Tape & Reel (TR) | Active | Polymeric | 30V | 200 mA | 400 mA | 80 A | 60 ms | 400 mOhms | 6 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.043" (1.10mm) | - |
|
|
PFMF.050.2PTC RESET FUSE 15V 500MA 1812 |
6,714 | - |
|
Datasheet | 1812 (4532 Metric), Concave | PFMF | Tape & Reel (TR) | Active | Polymeric | 15V | 500 mA | 1 A | 100 A | 150 ms | 150 mOhms | 1 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.033" (0.85mm) | - |
.JPG "MF-NSMF150-2")
|
MF-NSMF150-2PTC RESET FUSE 6V 1.5A 1206 |
24,797 | - |
|
Datasheet | 1206 (3216 Metric), Concave | Multifuse®, MF-NSMF | Tape & Reel (TR) | Active | Polymeric | 6V | 1.5 A | 3 A | 100 A | 300 ms | 30 mOhms | 130 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.028" (0.70mm) | - |
|

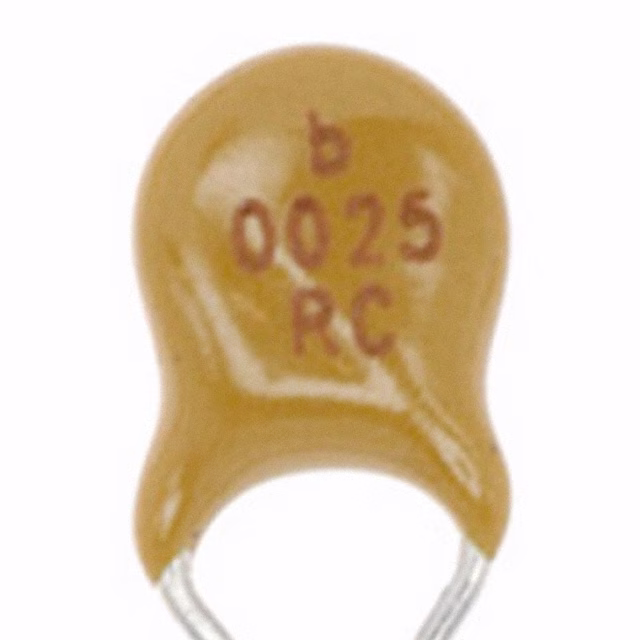

0ZRC0025FF1EPTC RESET FUSE 90V 250MA RADIAL |
22,882 | - |
|
Datasheet | Radial, Disc | 0ZRC | Box | Active | Polymeric | 90V | 250 mA | 500 mA | 40 A | 2.5 s | 1.25 Ohms | 3 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" L x 0.122" W (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|

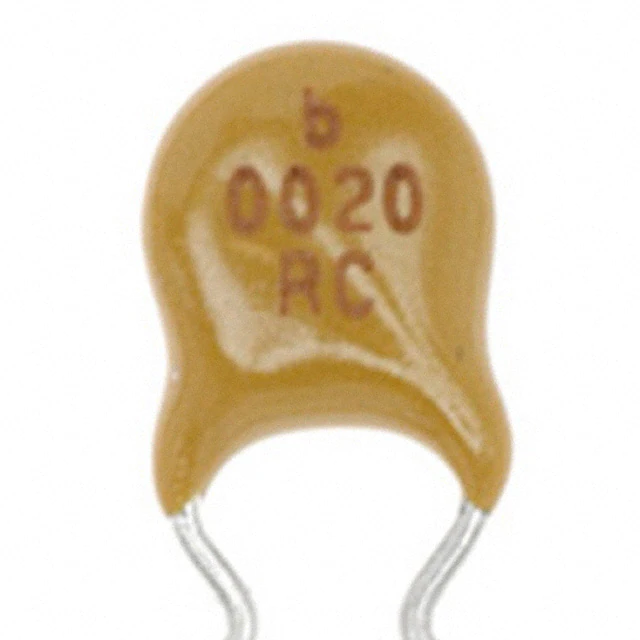

0ZRC0020FF1EPTC RESET FUSE 90V 200MA RADIAL |
2,160 | - |
|
Datasheet | Radial, Disc | 0ZRC | Box | Active | Polymeric | 90V | 200 mA | 400 mA | 40 A | 2.2 s | 1.83 Ohms | 4.4 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" L x 0.122" W (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
PTS12066V150PTC RESET FUSE 6V 1.5A 1206 |
10,463 | - |
|
Datasheet | 1206 (3216 Metric), Concave | PTS1206 | Tape & Reel (TR) | Active | Polymeric | 6V | 1.5 A | 3 A | 100 A | 300 ms | 40 mOhms | 120 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.045" (1.15mm) | - |
|
MF-PSMF010X-2PTC RESET FUSE 15V 100MA 0805 |
15,765 | - |
|
Datasheet | 0805 (2012 Metric), Concave | Multifuse®, MF-PSMF | Tape & Reel (TR) | Active | Polymeric | 15V | 100 mA | 300 mA | 40 A | 1.5 s | 1 Ohms | 7.5 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.085" L x 0.053" W (2.15mm x 1.35mm) | - | 0.033" (0.85mm) | - |
|
|
MF-PSMF110X-2PTC RESET FUSE 6V 1.1A 0805 |
11,263 | - |
|
Datasheet | 0805 (2012 Metric), Concave | Multifuse®, MF-PSMF | Tape & Reel (TR) | Active | Polymeric | 6V | 1.1 A | 2.2 A | 40 A | 300 ms | 60 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.085" L x 0.053" W (2.15mm x 1.35mm) | - | 0.049" (1.25mm) | - |
|

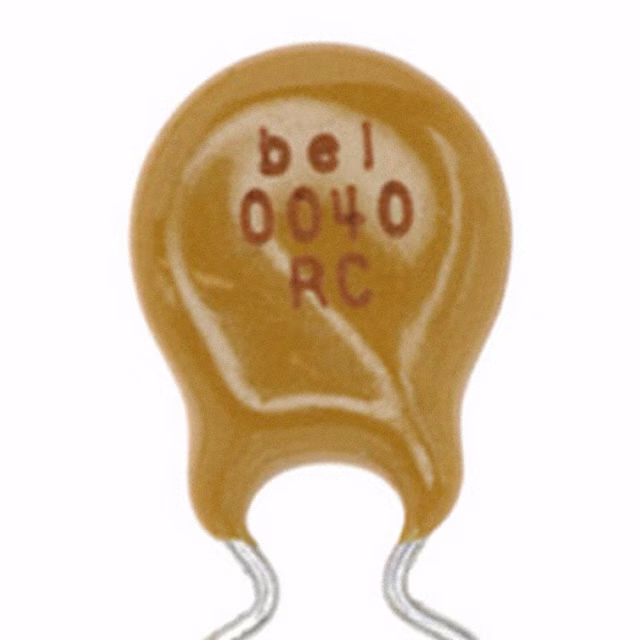

0ZRC0040FF1EPTC RESET FUSE 90V 400MA RADIAL |
3,578 | - |
|
Datasheet | Radial, Disc | 0ZRC | Box | Active | Polymeric | 90V | 400 mA | 800 mA | 40 A | 3.8 s | 550 mOhms | 1.29 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.299" L x 0.122" W (7.60mm x 3.10mm) | 0.532" (13.50mm) | - | 0.201" (5.10mm) |
|
MF-USMF110-2PTC RESET FUSE 6V 1.1A 1210 |
24,198 | - |
|
Datasheet | 1210 (3225 Metric), Concave | Multifuse®, MF-USMF | Tape & Reel (TR) | Active | Polymeric | 6V | 1.1 A | 2.2 A | 40 A | 1 s | 50 mOhms | 210 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.033" (0.85mm) | - |
|
PTS08056V050PTC RESET FUSE 6V 500MA 0805 |
10,557 | - |
|
Datasheet | 0805 (2012 Metric) | PTS0805 | Tape & Reel (TR) | Active | - | 6V | 500 mA | 1 A | 100 A | 0.2 s | - | - | - | - | - | - | - | Surface Mount | 0.085" L x 0.053" W (2.15mm x 1.35mm) | - | 0.049" (1.25mm) | - |
