PTC Resettable Fuses
Browse available PTC Resettable Fuses components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
,-Concave.jpg "0ZCF0200FF2C")
|
0ZCF0200FF2CPTC RESET FUSE 16V 2A 2920 |
9,587 | - |
|
Datasheet | 2920 (7351 Metric), Concave | 0ZCF | Tape & Reel (TR) | Active | Polymeric | 16V | 2 A | 4 A | 100 A | 4.5 s | 35 mOhms | 120 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.035" (0.90mm) | - |
|
MF-RX090/72-2PTC RESET FUSE 72V 900MA RADIAL |
7,141 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-RX/72 | Tape & Reel (TR) | Active | Polymeric | 72V | 900 mA | 1.8 A | 40 A | 7.2 s | 140 mOhms | 470 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.461" Dia x 0.122" T (11.70mm x 3.10mm) | 0.657" (16.70mm) | - | 0.201" (5.10mm) |
|
RXEF050SPTC RESET FUSE 72V 500MA RADIAL |
6,192 | - |
|
Datasheet | Radial, Disc | PolySwitch®, RXEF | Bag | Active | Polymeric | 72V | 500 mA | 1 A | 40 A | 4 s | 500 mOhms | 1.17 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.311" Dia x 0.118" T (7.90mm x 3.00mm) | 0.539" (13.70mm) | - | 0.199" (5.05mm) |
|
MINISMDC010F-2PTC RESET FUSE 60V 100MA 1812 |
88,893 | - |
|
Datasheet | 1812 (4532 Metric), Concave | PolySwitch®, miniSMD | Tape & Reel (TR) | Active | Polymeric | 60V | 100 mA | 300 mA | 40 A | 5 s | 700 mOhms | 12.7 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.035" (0.89mm) | - |
|
PTSLR06036V300PTC RESET FUSE 3A 6V 0603 |
24,503 | - |
|
Datasheet | 0603 (1608 Metric), Concave | PTSLR0603 | Tape & Reel (TR) | Active | - | 6V | 3 A | 6 A | 50 A | 5 s | 8 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.071" L x 0.039" W (1.80mm x 1.00mm) | - | 0.043" (1.10mm) | - |
|
0ZCH0200FF2EPTC RESET FUSE 6V 2A 1210 |
8,903 | - |
|
Datasheet | 1210 (3225 Metric), Concave | 0ZCH | Tape & Reel (TR) | Active | Polymeric | 6V | 2 A | 4 A | 100 A | 1 s | 15 mOhms | 70 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.055" (1.40mm) | - |
|
MF-R020PTC RESET FUSE 60V 200MA RADIAL |
17,313 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-R | Bulk | Active | Polymeric | 60V | 200 mA | 400 mA | 40 A | 2.2 s | 1.5 Ohms | 4.4 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|

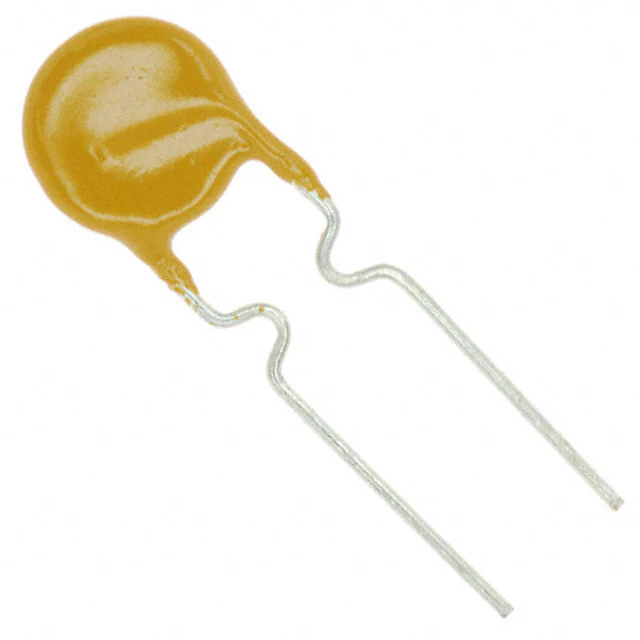

MF-R030PTC RESET FUSE 60V 300MA RADIAL |
8,866 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-R | Bulk | Active | Polymeric | 60V | 300 mA | 600 mA | 40 A | 3 s | 760 mOhms | 2.1 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.528" (13.40mm) | - | 0.201" (5.10mm) |
|
0ZCJ0150FF2CPTC RESET FUSE 8V 1.5A 1206 |
6,953 | - |
|
Datasheet | 1206 (3216 Metric), Concave | 0ZCJ | Tape & Reel (TR) | Active | Polymeric | 8V | 1.5 A | 3 A | 100 A | 1 s | 40 mOhms | 120 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.055" (1.40mm) | - |
|
0ZRR0050FF1EPTC RESET FUSE 60V 500MA RADIAL |
6,718 | - |
|
Datasheet | Radial, Disc | 0ZRR | Bulk | Active | Polymeric | 60V | 500 mA | 1 A | 40 A | 4 s | 500 mOhms | 1.17 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.311" Dia x 0.122" T (7.90mm x 3.10mm) | 0.539" (13.70mm) | - | 0.201" (5.10mm) |
|
PRG18BB101MB1RBPTC RESET FUSE 24V 21MA 0603 |
78,297 | - |
|
Datasheet | 0603 (1608 Metric) | POSISTOR®, PRG | Tape & Reel (TR) | Active | Ceramic | 24V | 21 mA | 45 mA | 300 mA | - | - | - | 100 Ohms | -20°C ~ 75°C | - | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - | 0.037" (0.95mm) | - |
.jpg "PRG18BC3R3MM1RB")
|
PRG18BC3R3MM1RBPTC RESET FUSE 16V 180MA 0603 |
23,942 | - |
|
Datasheet | 0603 (1608 Metric) | POSISTOR®, PRG | Tape & Reel (TR) | Active | Ceramic | 16V | 180 mA | 400 mA | 6 A | - | - | - | 3.3 Ohms | -20°C ~ 85°C | - | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - | 0.037" (0.95mm) | - |
|
|
PRG18BC2R2MM1RBPTC RESET FUSE 12V 220MA 0603 |
15,033 | - |
|
Datasheet | 0603 (1608 Metric) | POSISTOR®, PRG | Tape & Reel (TR) | Active | Ceramic | 12V | 220 mA | 500 mA | 6.5 A | - | - | - | 2.2 Ohms | -20°C ~ 85°C | - | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - | 0.037" (0.95mm) | - |
|
|
MF-R017PTC RESET FUSE 60V 170MA RADIAL |
13,900 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-R | Bulk | Active | Polymeric | 60V | 170 mA | 340 mA | 40 A | 3 s | 2 Ohms | 8 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
MF-R005-0PTC RESET FUSE 60V 50MA RADIAL |
13,586 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-R | Bulk | Active | Polymeric | 60V | 50 mA | 100 mA | 40 A | 5 s | 7.3 Ohms | 22 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.315" Dia x 0.122" T (8.00mm x 3.10mm) | 0.327" (8.30mm) | - | 0.201" (5.10mm) |
|
MF-SM125-2PTC RESET FUSE 15V 1.25A 2SMD |
11,915 | - |
|
Datasheet | 2-SMD | Multifuse®, MF-SM | Tape & Reel (TR) | Active | Polymeric | 15V | 1.25 A | 2.5 A | 100 A | 2 s | 70 mOhms | 250 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.287" L x 0.214" W (7.31mm x 5.44mm) | - | 0.118" (3.00mm) | - |
|
0ZRR0005FF1EPTC RESET FUSE 60V 50MA RADIAL |
8,534 | - |
|
Datasheet | Radial, Disc | 0ZRR | Bulk | Active | Polymeric | 60V | 50 mA | 100 mA | 40 A | 5 s | 7.3 Ohms | 20 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
RXEF017PTC RESET FUSE 60V 170MA RADIAL |
5,839 | - |
|
Datasheet | Radial, Disc | PolySwitch®, RXEF | Bag | Active | Polymeric | 60V | 170 mA | 340 mA | 40 A | 3 s | 3.3 Ohms | 8 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.500" (12.70mm) | - | 0.199" (5.05mm) |
|
|
PRG18BC4R7MM1RBPTC RESET FUSE 20V 155MA 0603 |
5,422 | - |
|
Datasheet | 0603 (1608 Metric) | POSISTOR®, PRG | Tape & Reel (TR) | Active | Ceramic | 20V | 155 mA | 330 mA | 5 A | - | - | - | 4.7 Ohms | -20°C ~ 85°C | - | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - | 0.037" (0.95mm) | - |
|

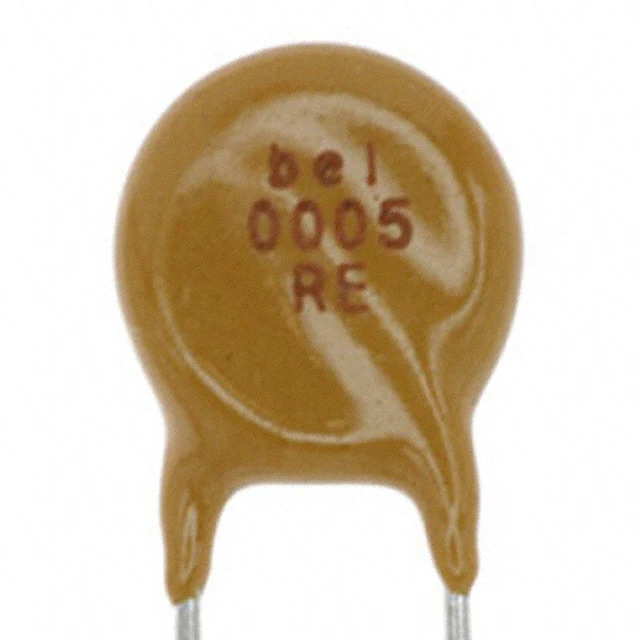

0ZRE0005FF1CPTC RESET FUSE 240V 50MA RADIAL |
120,073 | - |
|
Datasheet | Radial, Disc | 0ZRE | Box | Active | Polymeric | 240V | 50 mA | 120 mA | 1.5 A | 15 s | 18.5 Ohms | 65 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.327" L x 0.150" W (8.30mm x 3.80mm) | 0.421" (10.70mm) | - | 0.201" (5.10mm) |
PTC Resettable Fuses FAQ
What PTC Resettable Fuses components can I source from EGOO?
You can browse available PTC Resettable Fuses product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete PTC Resettable Fuses parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
